Quick Details
-
Warranty:
-
1 years
-
Brand Name:
-
Ocean
-
Model Number:
-
T-8
-
Place of Origin:
-
Zhejiang, China
-
Horsepower:
-
160
-
Outlet Size:
-
200mm
-
Power:
-
120kw, Electric
-
Theory:
-
Centrifugal Pump
-
Usage:
-
Water
-
Standard or Nonstandard:
-
Standard
-
Certification:
-
CE,ISO9001:2000 certification
-
Material:
-
Cast iron,Dutile iron,Stainless steel
-
Function:
-
handling sewage,solid,corrosive liquid,slurries,debris
-
Fuel:
-
diesel or electric
-
Color:
-
Customer Specifications
Quick Details
-
Application:
-
Automotive Industry, Biofuel Industry, Commercial Buildings, District Energy, Industrial Boilers, Industrial Utilities, Irrigation and Agriculture, Machining, Marine, Metal and Equipment Manufacturers, Mining industry, Washing and Cleaning, Wastewater Transport and Flood Control, wastewater treatment, Water Distribution, Water Treatment Solutions
-
Pressure:
-
4bar
-
Voltage:
-
380V
-
Warranty:
-
1 years
-
Brand Name:
-
Ocean
-
Model Number:
-
T-8
-
Place of Origin:
-
Zhejiang, China
-
Horsepower:
-
160
-
Outlet Size:
-
200mm
-
Power:
-
120kw, Electric
-
Theory:
-
Centrifugal Pump
-
Usage:
-
Water
-
Standard or Nonstandard:
-
Standard
-
Certification:
-
CE,ISO9001:2000 certification
-
Material:
-
Cast iron,Dutile iron,Stainless steel
-
Function:
-
handling sewage,solid,corrosive liquid,slurries,debris
-
Fuel:
-
diesel or electric
-
Color:
-
Customer Specifications
Product classification
Products Description

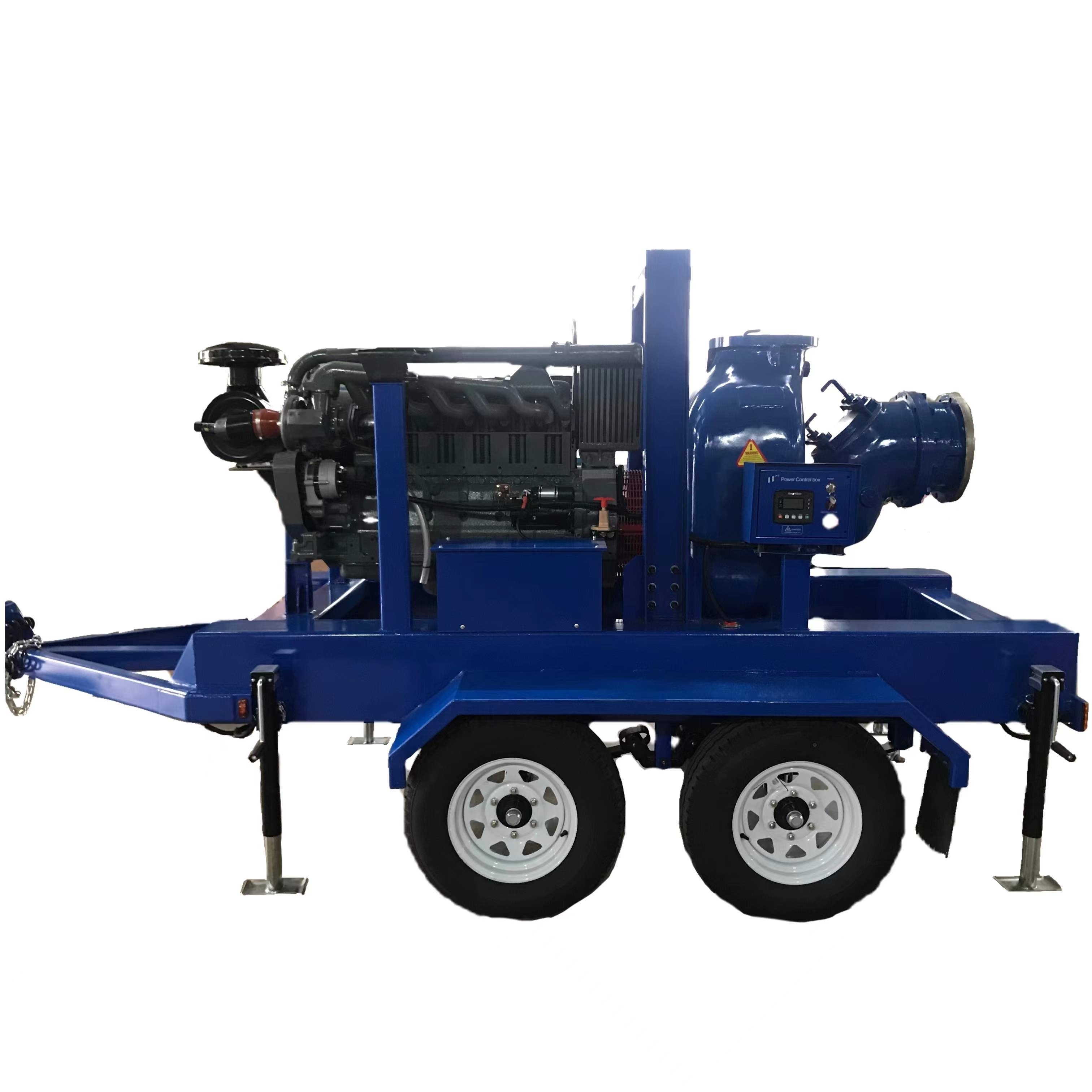

High flow rate T series 8 inch diesel engine self priming water pump
1.Brief Introduce
T series submersible sewage pump have the unique structure is a newly developed product on the basis of advanced technology imported from overseas , it adopts oversea excellent hydraulic model.
And it has advantages of high efficiency,compact structure, high intensity, good
performance and wide application etc. The shaft seal adopts mechanical seal or packing seal.
2.Advantages
1.High and Dry mounting for fast and easy service.
2.Clogging is kept to a minimum,so downtime is virtually eliminated!
3. Service is simple , fast and economical
4. Automatic priming means dependable performance
5.high efficency and energy saving
6.convenient usage and maintenance etc compared with domestic similar product.
2.Clogging is kept to a minimum,so downtime is virtually eliminated!
3. Service is simple , fast and economical
4. Automatic priming means dependable performance
5.high efficency and energy saving
6.convenient usage and maintenance etc compared with domestic similar product.
|
3.Performance Table
|
|
|
|
|
|
|||||
|
MODEL
|
size
|
MAX FLOW (m3/H )
|
Max (m)
|
Suction Lift ( m )
|
MAX SOLIDS mm
|
|||||
|
T-2
|
2 inch
|
46
|
36
|
7.6
|
44.45
|
|||||
|
T-3
|
3 inch
|
107
|
35
|
7.6
|
63.5
|
|||||
|
T-4
|
4 inch
|
163
|
36
|
7.6
|
76.2
|
|||||
|
T-6
|
6 inch
|
330
|
33
|
7.6
|
76.2
|
|||||
|
T-8
|
8 inch
|
600
|
34
|
7
|
76.2
|
|||||
|
T-10
|
10 inch
|
775
|
40
|
6.7
|
76.2
|
|||||
|
T-12
|
12 inch
|
1275
|
42
|
4.9
|
50
|
|||||
|
U-3
|
3inch
|
85
|
62
|
7.6
|
20.63
|
|||||
|
U-4
|
4 inch
|
148
|
60
|
5.2
|
28.57
|
|||||
|
U-6
|
6 inch
|
308
|
58
|
4.5
|
31.75
|
|||||
