Quick Details
-
Storage Type:
-
Maintenance free
-
The charging ratio:
-
10 HRS
-
The discharge rate:
-
10 HRS
-
Warranty:
-
18 months
-
Battery Size:
-
12V100Ah/12V150Ah/12V200Ah/24V120ah
-
Brand Name:
-
WHC SOLAR
-
Model Number:
-
WHC100 120 150 200AH
-
Place of Origin:
-
Guangdong, China
-
Weight:
-
50kg(200ah)
-

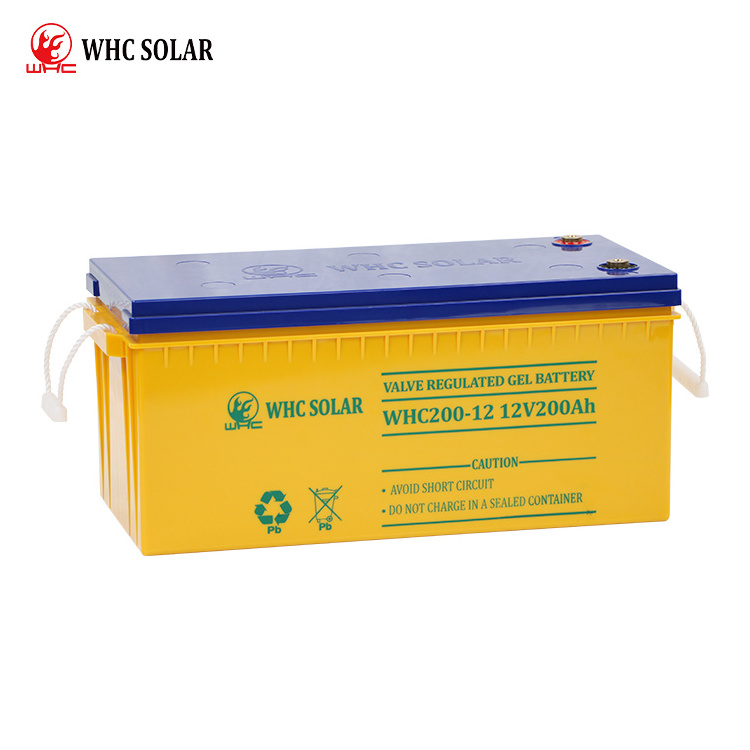

Product name:
-
Sealed Lead Acid Batteries
-
Battery type:
-
Gel Battery
-
Voltage:
-
12V
-
Capacity:
-
100AH/150AH/200AH/120AH
-
Sealed Type:
-
Sealed Solar Battery
-
Type:
-
GEL Lead Acid Battery
-
Terminal:
-
T11
-
Max. Discharge Current:
-
1600A (5 sec)
-
Material:
-
ABS Containers
Quick Details
-
Chargeable:
-
Yes
-
Battery Type:
-
Deep Cycle: Sealed Gel
-
Cycle Life:
-
2000 times
-
Storage Type:
-
Maintenance free
-
The charging ratio:
-
10 HRS
-
The discharge rate:
-
10 HRS
-
Warranty:
-
18 months
-
Battery Size:
-
12V100Ah/12V150Ah/12V200Ah/24V120ah
-
Brand Name:
-
WHC SOLAR
-
Model Number:
-
WHC100 120 150 200AH
-
Place of Origin:
-
Guangdong, China
-
Weight:
-
50kg(200ah)
-
Product name:
-
Sealed Lead Acid Batteries
-
Battery type:
-
Gel Battery
-
Voltage:
-
12V
-
Capacity:
-
100AH/150AH/200AH/120AH
-
Sealed Type:
-
Sealed Solar Battery
-
Type:
-
GEL Lead Acid Battery
-
Terminal:
-
T11
-
Max. Discharge Current:
-
1600A (5 sec)
-
Material:
-
ABS Containers
Products Description
1. Long service life
2. Non-spillable
3. High energy density
4. Rugged construction
5. Sealed/Maintenance-free
6. Deep discharge recovery
3. High energy density
4. Rugged construction
5. Sealed/Maintenance-free
6. Deep discharge recovery
Product Paramenters
|
Nominal Voltage
|
|
12V
|
12V
|
12V
|
24V
|
|
|
Capacity(25°)
|
10HR(10.8V)
|
100AH
|
150AH
|
200AH
|
120AH
|
|
|
|
5HR(10.5V)
|
87AH
|
130AH
|
156AH
|
105AH
|
|
|
|
1HR(9.6V)
|
62AH
|
93AH
|
116AH
|
74.4AH
|
|
|
Size
|
|
406*173*208mm
|
484*172*242mm
|
522*240*220mm
|
442*344*210mm
|
|
|
Terminal Type
|
|
T19/T11
|
5/T11
|
T11
|
T19/T11
|
|
|
Float Charging Voltage(25℃)
|
|
13.50 to 13.80V Temperature Compensation:-18mV/℃
|
13.50 to 13.80V Temperature Compensation:-18mV/℃
|
13.50 to 13.80V Temperature Compensation:-18mV/℃
|
27.00 to 27.60V Temperature Compensation:-30mV/℃
|
|
|
Cyclic Charging Voltage(25℃)
|
|
14.50 to 14.90V Temperature Compensation:-30mV/℃
|
14.50 to 14.90V Temperature Compensation:-30mV/℃
|
14.10 to 14.40V Temperature Compensation:-30mV/℃
|
29.00 to 29.80V Temperature Compensation:-50mV/℃
|
|
|
Max. Charging Current
|
|
30A
|
40A
|
40A
|
36A
|
|
|
Terminal Material
|
|
T19:Lead; T11:Copper
|
Copper
|
Copper
|
T19:Lead; T11:Copper
|
|
|
Max. Discharge Curent
|
|
800A(5 sec.)
|
1200A(5 sec.)
|
1600A(5 sec.)
|
960A(5 sec.)
|
|
|
Weight
|
|
26KG
|
35.5KG
|
50KG
|
60.2KG
|
|
