Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Tairong Dual Pipe Extruding Machines
-
Voltage:
-
380V 50HZ
-
Dimension(L*W*H):
-
25mx2.5x2.8
-
Power (kW):
-
37
-
Weight:
-
8ton
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Online support
-
Max pipe diameter:
-
630mm
-
Gear box:
-
Jiangyin
-
motor:
-
Siemens
-
inverter:
-
ABB
-
Contacter:
-
Siemens
-
pvc pipe type:
-
Dual Pipe Extruding Machines
-
Usage 2:
-
pvc conduit pipe
-
Automatic Grade:
-
Full Automatic
-
Output (kg/h):
-
150 - 300 kg/h
-
Certification:
-
SGS
Quick Details
-
Screw Design:
-
Double-screw
-
Screw L/D Ratio:
-
132
-
Screw Speed (rpm):
-
300 rpm
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Tairong Dual Pipe Extruding Machines
-
Voltage:
-
380V 50HZ
-
Dimension(L*W*H):
-
25mx2.5x2.8
-
Power (kW):
-
37
-
Weight:
-
8ton
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Online support
-
Max pipe diameter:
-
630mm
-
Gear box:
-
Jiangyin
-
motor:
-
Siemens
-
inverter:
-
ABB
-
Contacter:
-
Siemens
-
pvc pipe type:
-
Dual Pipe Extruding Machines
-
Usage 2:
-
pvc conduit pipe
-
Automatic Grade:
-
Full Automatic
-
Output (kg/h):
-
150 - 300 kg/h
-
Certification:
-
SGS

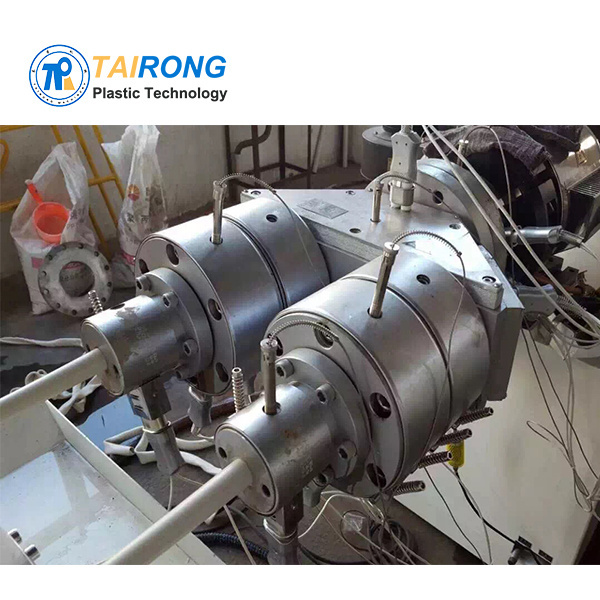

PVC/CPVC/UPVC Dual Pipe Extruding Machines
TAIRONG designs and implements complete lines based on twin-screw extruder technology , suitable for production of thermoplastic pipes with diameters starting from a few millimetres up to 1,600 mm. With lines it is possible to produce several product types for any application: from rigid pipes with wide cross-section to flexible pipes with small diameter, from monolayer to multilayer products, from smooth to corrugated pipes
Details:
•
SJZ series Plastic PVC pipe extruder machine is mainly applied to extrude PVC etc material.
•
Runs on 380 volt 3 phase
(can be converted your local phase)
and 120 psi 10 cfm air supply
• The plastic PVC pipe extruder machine adopts special gearbox, and has features of low noisy, stable running, high capacity, long service life. Equipped with different mold and auxiliary
• The plastic PVC pipe extruder machine has features of simple process, high output, stable extrusion presure, and low cost.
|
Technical specifications for PVC/UPVC Pipe Production Line |
||||
|
Model |
Pipe Spec(mm) |
Conical twin screw extruder |
Max output(kg/h) |
Total power(kw) |
|
TR63-PVC |
Φ20-Φ63 |
GSZ65/132 |
180-300 |
104 |
|
TR160-PVC |
Φ63-Φ160 |
GSZ65/132 |
180-300 |
105 |
|
TR250-PVC |
Φ75-Φ250 |
GSZ80/156 |
300-450 |
110 |
|
TR315-PVC |
Φ250-Φ315 |
GSZ80/156 |
300-450 |
216 |
|
TR450-PVC |
Φ200-Φ450 |
GSZ92/188 |
650-750 |
290 |
|
TR630-PVC |
Φ315-Φ630 |
GSZ92/188 |
750-850 |
350 |
|
TR800-PVC |
Φ500-Φ800 |
GSZ135/31 |
950-1100 |
410 |
