120hp Boat Motor Original Boat Fishing Machine 4stroke Marine Diesel Engine with Gearbox 40 to 60 Hp 4 Stroke Mesin Boat 4 Tak

FOB Reference Price: Get Latest Price

≥1 Pieces

US $4999

≥5 Pieces

US $4980

Free Inquiry

Customized Request

Quick Details

Promotion

Weichai WP4/WP6 marine diesel engine series has compact structure, strong power, excellent economy, high reliability, low smoke, low noise, low vibration, high speed and convenient use and maintenance. The engine is developed based on marine engine work conditions and requirements after special optimized design and development.

Tehnical Parameters

Parameters Table

Series	4-Stroke,water cooling,In-Line,Dry cylinder sleeve
Cylinder Diameter/Stroke	105×130mm
specific lub-oil consumption	195g/kW·h
Start Mode	Electric start
Firing Order	1-5-3-6-2-4
Noise	≤100dB(A)
Number of cylinders	6
Displacement	4.5L
Minimum fuel consumption	0.5g/ kW·h
Idling	600±50r/min
Smoke intensity	≤1.2Rb
Emission standard	IMO TIER II
nkshaft rotation direction(towards free end)	clockwise

Model Portfolio Table

Series	Model	Air intake mode	Rated power kW/Ps	Speed r/min	Fuel feeding mode	Emission level
WD10	WP4C82-15	Turbocharged	60/82	1500	Mechanical pump	IMOⅡ
	WP4C95-18	Turbocharged	70/95	1800	Mechanical pump	IMOⅡ
	WP4C102-21	Turbocharged	75/102	2100	Mechanical pump	IMOⅡ
	WP4C54-15	Turbocharged and intercooled	40/54	1500	Mechanical pump	IMOⅡ
	WP4C82-15	Turbocharged and intercooled	60/82	1500	Mechanical pump	IMOⅡ
	WP4C95-18	Turbocharged and intercooled	70/95	1800	Mechanical pump	IMOⅡ
	WP4C102-21	Turbocharged and intercooled	75/102	21 00	Mechanical pump	IMOⅡ
	WP4C120-18	Turbocharged and intercooled	88/120	18 00	Mechanical pump	IMOⅡ
	WP4C130-21	Turbocharged and intercooled	95/130	2100	Mechanical pump	IMOⅡ

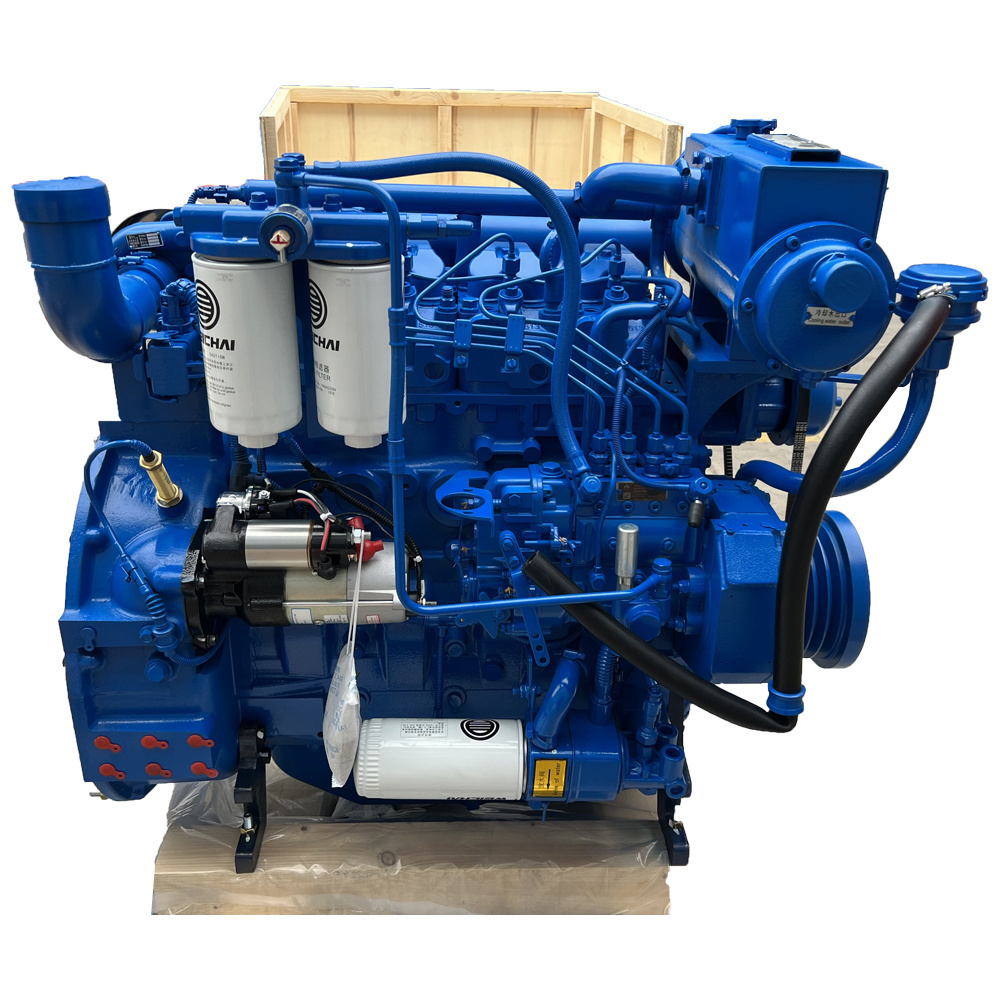

DETAIL IMAGES

Advantage

Packaging & Shipping

Application

SERIES	Mainly use
High-speed engine products including WP4.1,WP4,WP6,WP7,WD10,WD12,WP10, WP12,WP13,M26,M33	the main engine and auxiliary engine of the high-speed ships and boats, passenger ship, and fishing boat and inland river transport ship;
CW200/CW250/WH620/WH20/WH25/WH28 medium speed engine products	main engine, and auxiliary engine of the engineering ship, passenger ship, fishing boat, and bulk cargo carrier;
MAN series L21/31, L23/30A, L27/38, L32/40 and V32/40 products	main engine, electric propeller and auxiliary engine of the bulk cargo carrier, engineering ship, multi-purpose ship, and marine traffic management ship.
