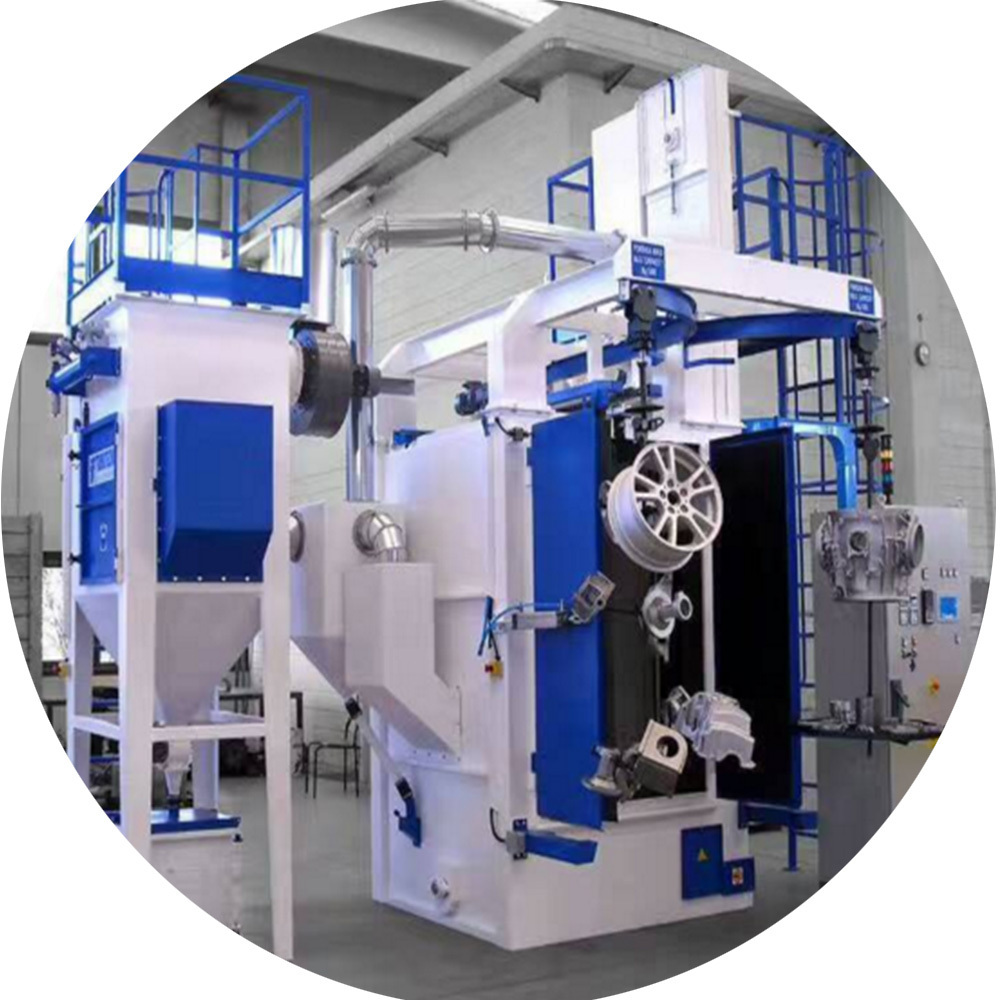

Best sale steel shot blasting machine

1.

Work piece maximum size

mm

(Diameter*length): L2330*W1230*H1250

Carrying weight of single hook:≤ 3000kgs

2.

Internal size of shot blasting room

mm

L3300*W3300*H2700

3.

Cleaning Requirements

/

Sa2-Sa2.5

4.

S urface R oughness

μ m

12.5-75(According to projectile and shot speed)

5.

Productivity

M in/hook

6-15

6.

Hooks

pcs

2

7.

Max weight of hook

t

3t

8

Blasting wheel

Germany THYSSENKRUPP technology

Sweden SKF bearing

3pcs

Abrasive amount:3*250kgs/min=750kgs

S hot speed:≥ 80m/s

P ower:3*15kw=45kw

Material: high chromium precision-investment casting Cr28%

6

Use Projectile

φ 1.0- φ 2.5mm

7

Filling amount for the first time

2t

8

Bottom screw conveyor

16Mn Manganese steel blade;

integral processing conveyor shaft;

Multiple sealing structure ;

1

C apacity:45t/h

P ower:2.2KW

9

Bucket elevator

Polyester cored belt;

chromium steel hopper bucket;

1

Elevating C apacity:45t/h

Lifting speed: 1.25m/s

P ower:5.5KW

10

Separator

Germany AGTOS technology, high efficiency ;

Three stage separation ;

Modular assembly;

Varying pitch full curtain technology;

1

Separation C apacity:45t/h

Efficiency > 99.5%

P ower:2.2KW

Model: air classification

11

Projectile controller

Germany AGTOS technology;

AIRTAC pneumatic control;

3

3untis

Control is pneumatic

Maximum flow:300kgs/min each unitx3=900kgs

12

Dust collector

First Class Inertial sedimentation dust removal ;

Second Class pulse jet cleaning filter cartridge dust removal system;

1

The main fan air volume is 14000m³ /h;

Efficiency :99.9%

P ower is 7.5kw

13

Hook walk institution

2sets

Running speed:20m/min,

Running Motor Power:0.4kw

Lifting speed:8m/min

Lifting Motor Power:4.5KW

14

Hook anti-rotation mechanism

1set

Rotation spped:1r/min

Power:0.55kw

15

Row of dust concentration

mg/m³

≤ 80

16

Equipment noise

dB

≤ 93

17

Total Power

Kw

≈ 73

18

Compressor air consumption

m³ /min

1

19

Air pressure

Mpa

0.5-0.7
