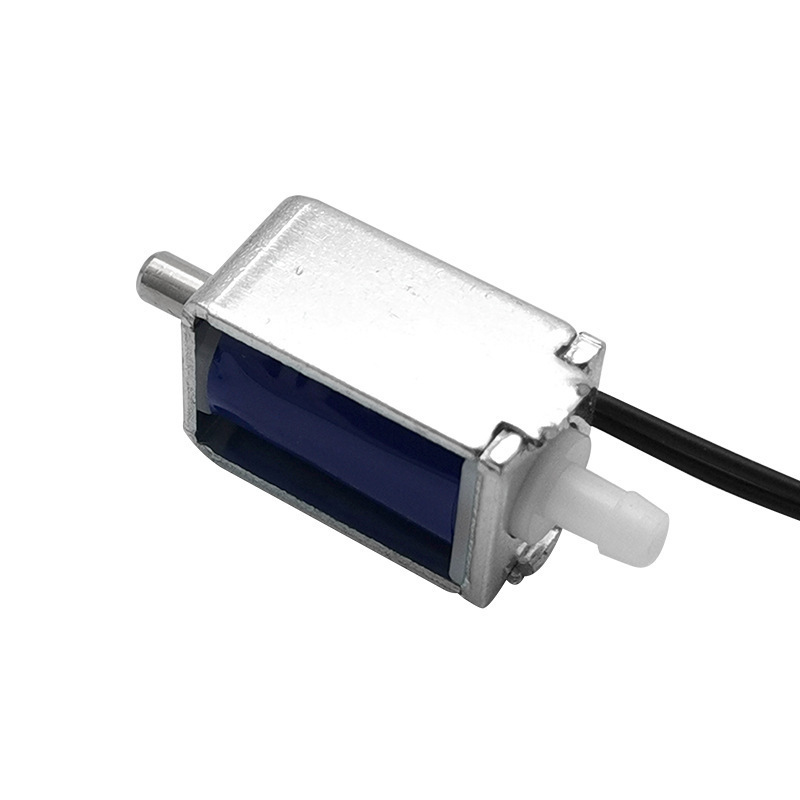

Factory Direct Sell 3-12V Mini Small Micro One Way Exhaust Valve Normally Closed Eletronic Solenoid Valve for Massage Device

Factory Direct Sell 3-12V Mini Small Micro One Way Exhaust Valve Normally Closed Eletronic Solenoid Valve for Massage Device

FOB Reference Price: Get Latest Price

≥1 Pieces

US $0.5

≥5000 Pieces

US $0.3

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Model Number:: PYF2-XA

Type:: Eletronic Solenoid Valve

Brand Name:: pincheng

Standard or Nonstandard:: Standard

Valve type:: Solenoid valve

Certificate:: CE, RoHS, ISO9001

Low noise:: Yes

Material:: PPS

Adjustable flow:: Yes

Voltage:: 3V, 3.7V, 6V, 9V, 12V

Quick Details

Port Size:: Standard

Warranty:: 1year

Place of Origin:: Guangdong, China

Model Number:: PYF2-XA

Type:: Eletronic Solenoid Valve

Brand Name:: pincheng

Standard or Nonstandard:: Standard

Valve type:: Solenoid valve

Certificate:: CE, RoHS, ISO9001

Low noise:: Yes

Material:: PPS

Adjustable flow:: Yes

Voltage:: 3V, 3.7V, 6V, 9V, 12V

Product Description

dc small air compressor micro air solenoid valve with air compressor safety valve
Features: low noise ; Longlife span; CE and RoH

1. Pump with self-priming function;
2. Food grade material; DC 3V, 3.7V, 6V, 9V, 12V are all availiable;
3. Short-term dry run (no more than 15 minutes);
4. Low noise, easy installation, stable performance;
5. Working medium: water, beer, other beverages; no oil, no strong corrosive, non-acid and alkali, without solid particles of liquid;
6. Installed in a dry, ventilated area; do not operate it with pump submersed in water;
7. Appropriated for liquid circulation, transfer etc.

_{Production Name}	Solenoid valve
_{Rataed voltage}	DC 3V	DC 3.7V	DC 6V	DC 9V	DC 12.0V
_{Rataed current}	375 ±10%mA	370 ±10%mA	240 ±10%mA	225 ±10%mA	200 ±10% mA
Impedance	8±10%Ω	10±10%Ω	25±10%Ω	40±10%Ω	60±10%Ω
Power	1.12W	1.37W	1.44W	2.02W	2.4W
Air Tap O.D.	φ3.0mm
Max Pressure	40kpa
_Leakage	Max 3 mmHg/min from 300mmHg at 100cc tank
_{Life test}	≥200,000 times(on 5s, off 5s)
Weight	100g

Typical Application

Air pump and water pump are widely used in Medical instruments, massagers products.

Typical application:blood pressure instrument, water purifier, massage glasses, massager waist, massager chair, Coffee machine, Ozone box, fish tank etc. They are main features: stable in performance, long life in using, good quality.

Every foam pallet inside to pack each item well

A safe foam packed again

Standard export outer cartons

CE approved, all is RoHS compliant.

Profile

Pincheng motor is specialized in manufacturing micro motor and pumps. With over 300 employees, we had great capacity to produce more than 50000 unit of motor/pump daily. Automatic testing equipments make sure our product are 100% tested and qualified.

Quality Control

Pincheng motor offers miniature pump technologies to solve the motion needs of end markets, from medical devices to various industrial applications. Our items range includes micro air pump, micro vacuum pump, micro water pump, nebulizer air pump. 100% tested and inspection, satisfied our customer will consistence quality.

R&D Ability

We have the ability to help in every phase of our customers' product design - from selecting an optimal pumping solution to customizing products to meet their application needs. With proven quality product and professional service, we are surely can be your powerful partner.

Facilities

We had facilities to manufacture complete pump in house, starting from steel body, copper winding and plastic cover. Our products deliver pumping quality in a compact package with high efficiency and low power consumption.
