Quick Details
-
Voltage:
-
CUSTOMIZED
-
Place of Origin:
-
Shanghai, China
-
Year:
-
NEW PRODUCT
-
Brand Name:
-
IVEN
-
Dimension(L*W*H):
-
2500*3000*2000
-
Weight (KG):
-
3000
-
Product name:
-
Normal Saline IV Solution Filling Manufacturing Plant Production Line
-
Capacity:
-
5800~6500 bags/ hour
-
Bag-making Film:
-
NON-PVC Film
-
Specification:
-
100ml, 250ml, 500ml, 1000ML
-
Bag-making Form:
-
Single port, Heat insulation sealing
-
Auxiliary Equipments:
-
Leak Detector, Lamp Checking Machine etc
-
Reference Workshop Dimension:
-
3.26*2.0 *2.1M
-
Turnkey Project:
-
10 turnkey projects under construction in 2017
-
Type:
-
Filling Equipment
-
After-sales Service Provided:
-
Field maintenance and repair service
Quick Details
-
Production Capacity:
-
10
-
Automatic Grade:
-
Automatic
-
Driven Type:
-
YES
-
Voltage:
-
CUSTOMIZED
-
Place of Origin:
-
Shanghai, China
-
Year:
-
NEW PRODUCT
-
Brand Name:
-
IVEN
-
Dimension(L*W*H):
-
2500*3000*2000
-
Weight (KG):
-
3000
-
Product name:
-
Normal Saline IV Solution Filling Manufacturing Plant Production Line
-
Capacity:
-
5800~6500 bags/ hour
-
Bag-making Film:
-
NON-PVC Film
-
Specification:
-
100ml, 250ml, 500ml, 1000ML
-
Bag-making Form:
-
Single port, Heat insulation sealing
-
Auxiliary Equipments:
-
Leak Detector, Lamp Checking Machine etc
-
Reference Workshop Dimension:
-
3.26*2.0 *2.1M
-
Turnkey Project:
-
10 turnkey projects under construction in 2017
-
Type:
-
Filling Equipment
-
After-sales Service Provided:
-
Field maintenance and repair service
Normal Saline IV Solution Filling Manufacturing Plant Production Line is the latest production line with most advanced technology. It can automatically finish film feeding, printing, bag making, filling and sealing in one machine.
This LVP FFS line can be used to automatically fill 50-5000ml general solution, special solution, dialysis solution, Parenteral nutrition, Antibiotics, Irrigation and Disinfectant solution etc.

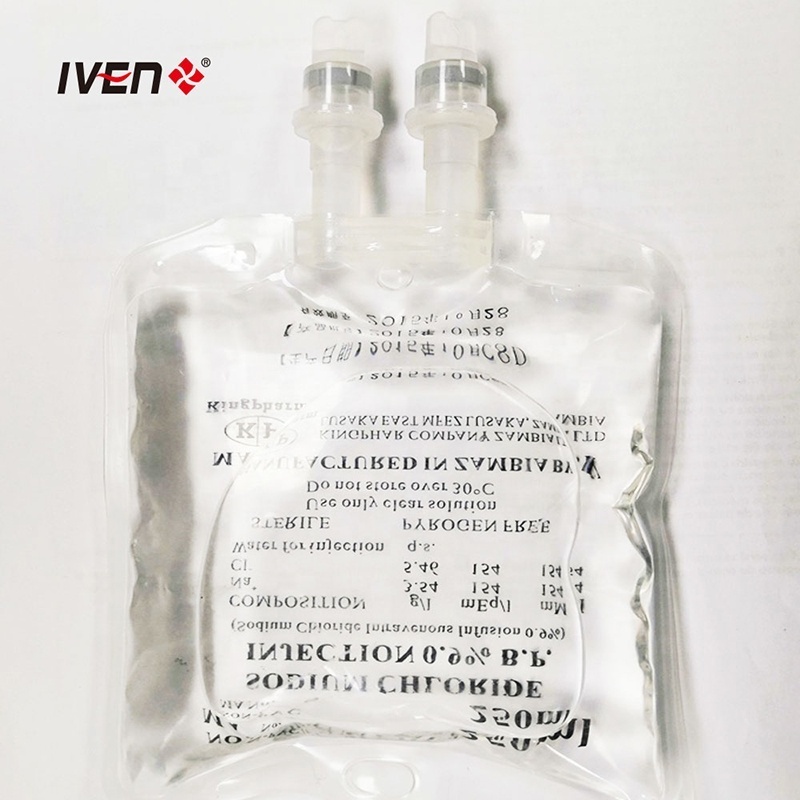

IVEN can supply you different PP bag design with single boat type port, single/double hard ports, double soft tube ports etc.
Technical Parameters
| Item | Main Content | |||||
|---|---|---|---|---|---|---|
| Model | SRD1A | SRD2A | SRD3A | SRD4A | SRD6A | SRD12A |
| Max. ACTUAL Production Capacity | 1000BPH | 2200BPH | 3200BPH | 4000BPH | 5500BPH | 10000BPH |
| Bag Size | 100ml, 250ml, 500ml, 1000ml (other specifications can be customized.) | |||||
| Power Supply | 3P/380V/50Hz | |||||
| Power | 8KW | 22KW | 26KW | 32KW | 32KW | 60KW |
| Nitrogen | According to special requirements, nitrogen protection is applicable | |||||
| Overall Size |
3.26x2.0
x2.1M |
4.72x2.6
x2.1M |
5.52x2.7
x2.1M |
6.92x2.6
x2.25M |
8.97x2.7
x2.25M |
8.97x4.65
x2.25M |
| Weight | 3T | 4T | 5T | 6T | 8T | 12T |
Main features:
1.100% film utilization: No waste edge between bags, reducing both material and energy consumption.
2.Special IV bag design: each bag saves 10mm film than others.
3.Reliable heating and welding system: Leakage rate less than 0.03%.
4.Quick changeover: 0.5-1 hour to switch from one size to another.
5.Stable transmission system: only needs 1 control system, 1 HMI and 1 operator.
6.Safe filling nozzle: No solution overflows, no particles generation.
7.Auto faulty rejection system detected by the machine.
8.Production line length is reduced by 1/3, both workshop and air conditioning and cleaning area are reduced by 1/3, greatly reducing the initial investment and future running cost.
9.Simple structure, more stable and reliable performance.
Turnkey Project for IV Solution Plant from A to Z
• Project Design
• Water Treatment
• Solution Preparation
• IV Solution Production Line
• Sterilization
• Inspections Packing
• Clean Room & HVAC
• Stability Chamber
• Laboratory Instruments
• Utilities
• Documentation & Qualification
• Installation, Commissioning, Training
• Service
