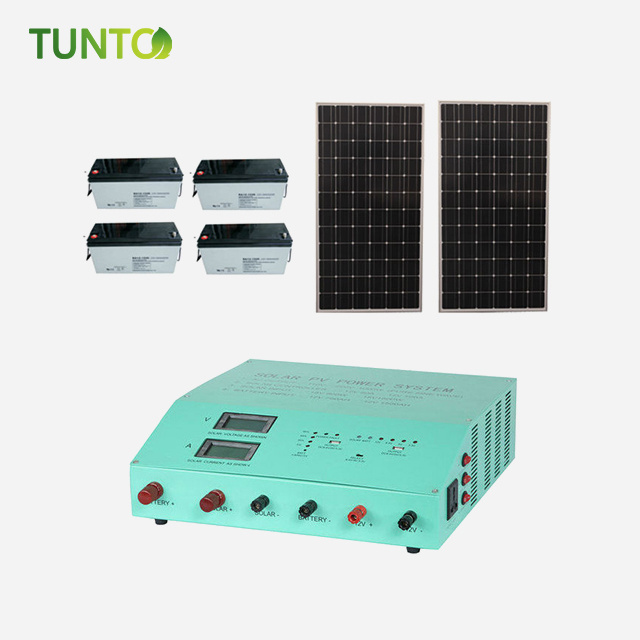

1200W Portable Solar Generator for Air Conditioner 1HP for Home Electricity,Lighting,mobile charging,camping light

1200W Portable Solar Generator for Air Conditioner 1HP for Home Electricity,Lighting,mobile charging,camping light

1. Application:
1) Provide power for household appliances, like DVD,TV set,fan,light, etc.

(Total power should be less than 1200W)
2) Charge the electronic products, like mobile phone/MP3/MP4/MP5/GPS/PDA, etc.

2. Product Diagram of S608  :

1, Battery capacity indicator
2, Inverter working indicator
3, Inverter stop working indicator
4, Solar charging indicator(red means charging,green means finishing charging)
5, Battery working indicator(green means full power, red means low power)
6, 12V load indicator(shine means working)
7, 8.4V load indicator(shine means working)
8, 5V load indicator(shine means working)
9, 3.3V load indicator(shine means working)
10, 8.4V/5V/3.3V USB interface (adjustable)
11, DC 8.4V/5V/3.3V select output switch
12, Check button of battery’s power
13, DC 12V output terminal -
14, DC 12V output terminal +
15, Battery input terminal -
16, Solar input terminal -
17, Solar input terminal +
18, Battery input terminal +
19, Solar input current LCD display
20, Solar input voltage LCD display
21, 12V output switch
22, 110V/220V output switch
23, 8.4V/5V/3.3 output switch
24, AC 220V output socket

3. Product Parameters of S608 home solar electricity generation system :
1) Max. Solar Support: 18V1800W
2) Max. Battery Support: 12V1500AH
3) Controller: 12V100A
4)Inverter:1200W
5) Solar input: 18V
6) Output voltage: 3.5V+5V+8.4V+12V+110V/120V/220V/240V
7) Output interface: 6 (2 *USB, 1*DC, 1*AC, 1*solar input, 1*battery input)
For USB Output voltage: 3.5V+5V+8.4V
For USB Output current: 1.5A
For DC Output voltage: 12V
For DC Output current: 3A
For AC Output voltage: 110V/120V/220V/240V
For AC Output Current:5A

4,Charging/Working Time:

1,The electricity energy generated by the solar panel one day:8.3KWH
2,The electricity energy stored by battery:13.8KWH
3,Maximum power support:1200W
4,Battery charging time:9-11 hours
5,Battery backup:11-12 hours (with full load)

5. Size:

System box: 416*402*130MM

6. Weight:
System box: 11.29KG

Our other series product

1. S9 series : DC  solar generator system, basic and economic lighting series, with output of 5V+12V (S901 is 5V+6V)

2. S0 series: DC system ,higher configuration than S9 series, with output of 3.3V&5V&8.4V+12V

3. S2 series: DC system with MP3&FM player, idea series with music function,S201-S202 is with output of 5V+12V,S203-S204 is with output of  3.3V&5V&8.4V+12V.

4. S8 series:

S803-S804 isDC system, with output of 5V+12V+19V, 19V is for laptop charging.

S805-S806 is AC+DC sys tem with 300W AC output and FM&MP3 player.

5. S1 series: AC+DC home solar electricity generation system , conventional  home used system with battery inside, this series is with 100W to 1200W output

6. S6 series: AC+DC solar generator system without battery inside (inverter& controller integrating machine)

7. S3 series: New design ,similar to S9 series with much more competitive price, for customers to break into the basic market .
