Quick Details
-
Voltage:
-
380v,50Hz,3 phase, 220-415v,50/60Hz,3 phase(customized made)
-
Dimension(L*W*H):
-
1500x720x880mm
-
Weight:
-
150 KG
-
Name:
-
Vibrating Sieve
-
Motor:
-
Vertical vibration motor
-
Layer(s):
-
2 Layers
-
Mesh size:
-
1.5-60mm
-
Usage:
-
Separation granules materials
-
Screen material:
-
201 stainless steel
-
Frequency:
-
1450rpm
-
Capacity:
-
200kg-3000kg/h
-
Feature:
-
Energy Saving Equipment
Quick Details
-
Type:
-
LINEAR
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
XUCAI
-
Voltage:
-
380v,50Hz,3 phase, 220-415v,50/60Hz,3 phase(customized made)
-
Dimension(L*W*H):
-
1500x720x880mm
-
Weight:
-
150 KG
-
Name:
-
Vibrating Sieve
-
Motor:
-
Vertical vibration motor
-
Layer(s):
-
2 Layers
-
Mesh size:
-
1.5-60mm
-
Usage:
-
Separation granules materials
-
Screen material:
-
201 stainless steel
-
Frequency:
-
1450rpm
-
Capacity:
-
200kg-3000kg/h
-
Feature:
-
Energy Saving Equipment

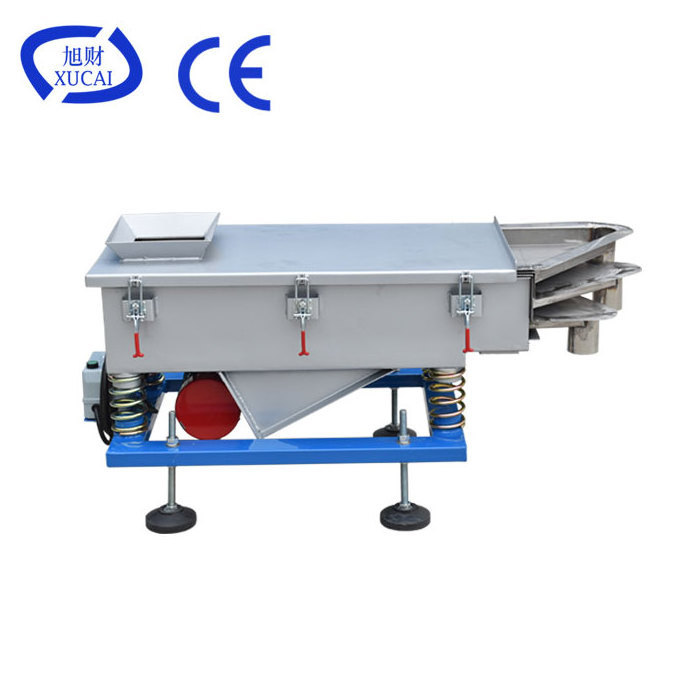

Vibrating sieve features:
Straight-line series vibrating sieve machine use centrifugal force generated on the vibration power machine to obtain exciting force.The exciting force makes the sieve body and the materials to move repeatedly up and down;after selection by two layers of screen,the materials are divided into threelevels according to the diameter of the sieve so as to reach the ideal goal.
1.The linear vibrating screen has fine and durable design,easy to be operated.
2.Convenient and rapid net changing and cleaning.
3.All contact parts of this kind of linear vibrating screen are made of stainless steel to ensure the purity.
4.Less malfunction,easy maintenance and convenient repairing.
5.Except standard configuration,diameter of sieve holes may be tailored according to customers' requirements.
Technical parameters:
|
Model |
Power (kw) |
Area of Mesh (mm) |
Diameter of Sieving Hole(mm) |
Layer of Meshes |
Dimension(mm) |
|
TZS-100 |
0.25 |
980x460 |
2-8 |
2 |
1500x720x880 |
|
TZS-130 |
0.25 |
960x440 |
2-8 |
2 |
1300x550x700 |
|
TZS-140 |
0.25 |
960x440 |
2-8 |
2 |
1400x650x1180 |
