1500-2500kg Per Hour pellet machine wood CE Certified biomass pellet machine sawdust hay machine to make wood pellets

1500-2500kg Per Hour pellet machine wood CE Certified biomass pellet machine sawdust hay machine to make wood pellets

FOB Reference Price: Get Latest Price

≥1 Sets

US $7200

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: LUODATE

Voltage:: 380V/400V/415V

Dimension(L*W*H):: 3000*1300*2150 mm

Motor Power (Kw):: 75kw

Power (kW):: 75kw

Weight (KG):: 4500 KG

Marketing Type:: New Product 2022

After-sales Service Provided:: Online support

Capacity:: 1-10TPH

Motor:: SIEMENS Brand

Lubrication:: Made in UK

Oil seal:: German

Feeder, Conditioner:: 304 stainless steel

Pellet size:: 2-12mm

Advantage:: Long Working Life

Usage:: Making Wood Pellets Animal Feed Pellets

Weight:: 3.1T

Quick Details

Pellet Diameter (mm):: 2 - 12

Output (kg/h):: 100 - 5000 kg/h

Place of Origin:: Henan, China

Brand Name:: LUODATE

Voltage:: 380V/400V/415V

Dimension(L*W*H):: 3000*1300*2150 mm

Motor Power (Kw):: 75kw

Power (kW):: 75kw

Weight (KG):: 4500 KG

Marketing Type:: New Product 2022

After-sales Service Provided:: Online support

Capacity:: 1-10TPH

Motor:: SIEMENS Brand

Lubrication:: Made in UK

Oil seal:: German

Feeder, Conditioner:: 304 stainless steel

Pellet size:: 2-12mm

Advantage:: Long Working Life

Usage:: Making Wood Pellets Animal Feed Pellets

Weight:: 3.1T

Product Description

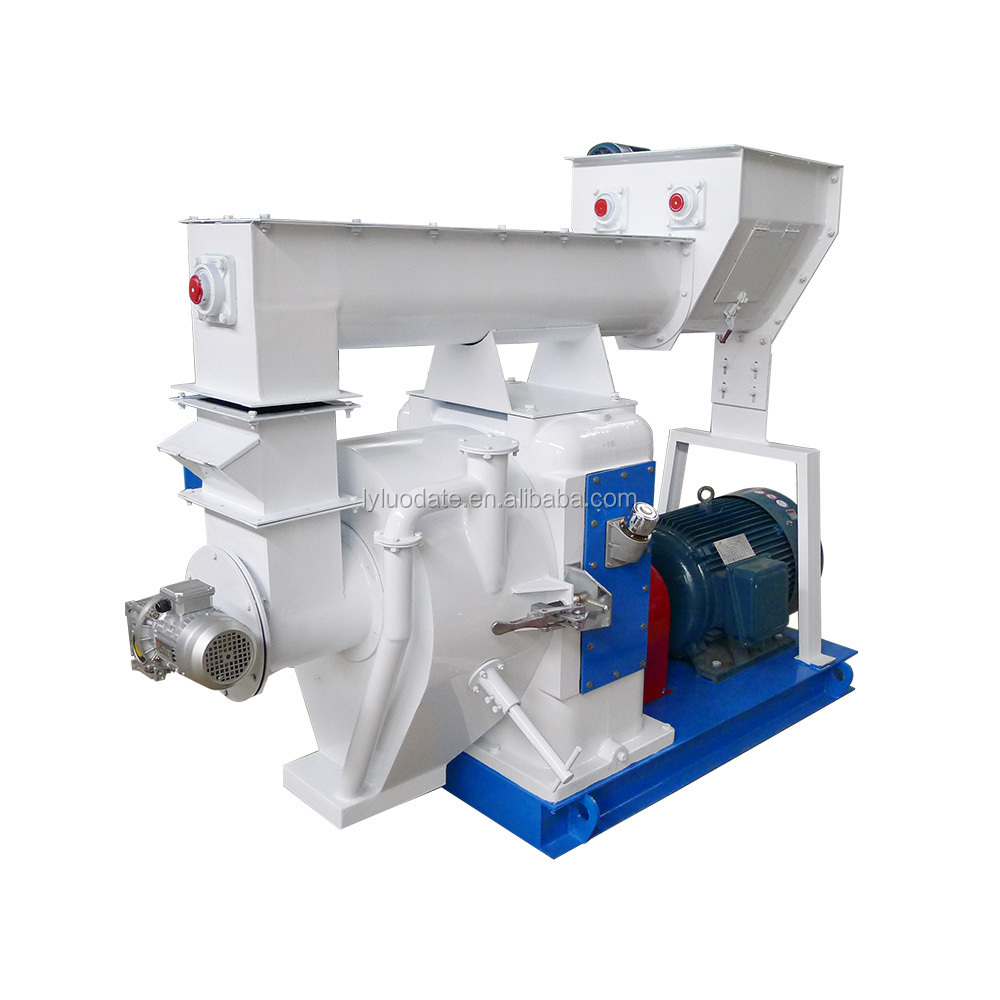

Wood Pellet Mill

Type : SZLH series Wood Chips Pellet Mill

Capacity(t/h) : 0.1-3

Pellet size(mm) : 6-12

Application : can be used in production of various kinds of fuel pellet.

Product Feature:

★ Scope of application: this machine can be used in the rice husk, straw, cotton stalk, wood chips, palm shell , sunflower,olive, bagasse, and other raw materials .

★ Frequency conversion (Electromagnetic speed control) feeder, with overload protection device , equipped strong magnetic security device .

★ High output , low noise , convenient operation and maintence.

★ Main parts of the bearing and standard parts are imported .

★ Equipped with between 6 and 12 more aperture and the thickness of the ring die , users can choose according to the different needs .

Motor	Main Power(kw)	Capacity(t/h)	Size(mm)
SZLH250	22	0.1-0.2	200014001550
SZLH320	37/45	0.3-0.5	230017002000
SZLH350	55	0.5-0.8	260010002050
SZLH400	75/90	0.8-1.5	288011402220
SZLH420	90/110	1.5-2	300013002350
SZLH508	132/160	2-3	340013002550

Details Images

Application

Application

Wood pellet production line, widely used in large, medium and small wood chip manufacturers to produce high quality wood pellet fuel for sale.

This machine can be used in the rice husk, straw, cotton stalk, wood chips, palm shell , sunflower, olive, bagasse, and other raw materials.

Project Case

Certifications

All our equipment has CE ISO SGS certification.

Our Factory & Our Customer

Ludate Machinery Factory

◆ Since 1994 in China.

◆ With 25+ years of rich experience .

◆ More than 10+ national patents .

◆ Gold supplier 7 years in Alibaba.com.

◆ More than 70+ countries client .

Our Footprint In The World

Our footprints are all over the world , we selling equipment in many countries around the world, such as Australia , Malaysia , Philippines, Colombia, Egypt, etc.
