Quick Details
-
Material:
-
ABS
-
function:
-
Unmanned aerial vehicle system
-
use:
-
Apply pesticide
-
Maximum thrust:
-
44KG/Axis
-
Propeller:
-
48175
-
Tube Diameter:
-
50mm
-
Recommended Drone:
-
For the drone about loadup 40L water
-
Total weight:
-
2800g
-
Max. Output Power:
-
9730W
-
Continued Power:
-
3100W
-
Battery plate/hook:
-
18S
Quick Details
-
Brand Name:
-
Hobbywing
-
Model Number:
-
X11MAX
-
Color:
-
Black
-
Material:
-
ABS
-
function:
-
Unmanned aerial vehicle system
-
use:
-
Apply pesticide
-
Maximum thrust:
-
44KG/Axis
-
Propeller:
-
48175
-
Tube Diameter:
-
50mm
-
Recommended Drone:
-
For the drone about loadup 40L water
-
Total weight:
-
2800g
-
Max. Output Power:
-
9730W
-
Continued Power:
-
3100W
-
Battery plate/hook:
-
18S

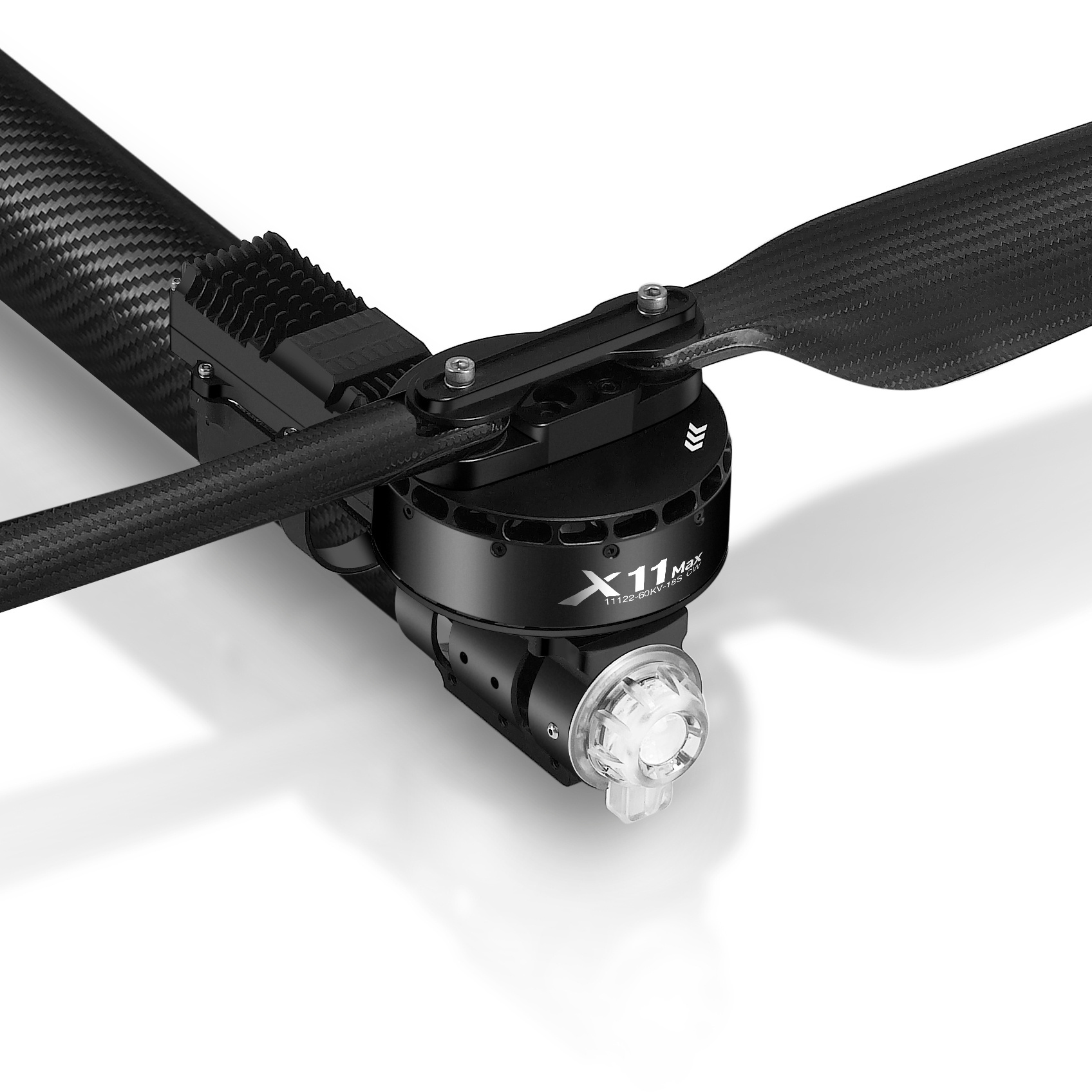

Hobbywing XRotor
X11MAX
Power System for Agricultural Drones
Specification
|
Product Name
|
X11MAX
|
|
Brand
|
Hobbywing
|
|
Maximum Thrust
|
44kg/Axis (70V, Sea Level)
|
|
Recommended Takeoff Weight
|
20-22kg/Axis (46V, Sea Level)
|
|
Combo Weight
|
2800g
|
|
Waterproof Rating
|
IPX6
|
|
Operating Temperature
|
-20~50℃
|
|
Motor
|
|
|
|
KV Rating
|
60 rpm/V
|
|
|
Stator Size
|
111*22mm
|
|
|
Powertrain Arm Tube Outer Diameter
|
50mm
|
|
|
Bearing
|
Bearings imported from Japan
|
|
|
ESC
|
|
|
|
Recommended LiPo Battery
|
18S(LiPo)
|
|
|
PWM Input Signal Level
|
3.3V/5V
|
|
|
Throttle Signal Frequency
|
50-500Hz
|
|
|
Operating Pulse Width
|
1050-1950-us(Fixed or cannot be Programmed)
|
|
|
Max. Input Voltage
|
78.3V
|
|
|
Max. Input Current (Short duration)
|
150A(w/ Good Heat Dissipation)
|
|
|
BEC
|
No
|
|
|
Propeller
|
|
|
|
Diameter×Pitch
|
48*17.5
|
|
