- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
GXCOM
-
Model Number:
-
TS8208P-2FM-IP65
-
Place of Origin:
-
Guangdong, China
-
Product Name:
-
Full Gigabit 8 Port Managed PoE Switch
-
Device Type:
-
Switch - 8 Ports - Managed
-
PoE Ports:
-
8*10/100/1000M PoE Ports
-
Uplink Ports:
-
2*10/100/1000Mbps SFP Port
-
Power Supply:
-
48V DC (44~57VDC)
-
PoE Standard:
-
IEEE802.3af/at
-
Power consumption:
-
150W
-
Applications:
-
CCTV IP Camera
-
Certification:
-
CE RoHS FCC
-
Warranty:
-
1 Year / 12 Months
Quick Details
-
Transmission Rate:
-
10/100/1000Mbps
-
Communication Mode:
-
Full-Duplex & Half-Duplex
-
Switch Capacity:
-
20Gbps
-
Brand Name:
-
GXCOM
-
Model Number:
-
TS8208P-2FM-IP65
-
Place of Origin:
-
Guangdong, China
-
Product Name:
-
Full Gigabit 8 Port Managed PoE Switch
-
Device Type:
-
Switch - 8 Ports - Managed
-
PoE Ports:
-
8*10/100/1000M PoE Ports
-
Uplink Ports:
-
2*10/100/1000Mbps SFP Port
-
Power Supply:
-
48V DC (44~57VDC)
-
PoE Standard:
-
IEEE802.3af/at
-
Power consumption:
-
150W
-
Applications:
-
CCTV IP Camera
-
Certification:
-
CE RoHS FCC
-
Warranty:
-
1 Year / 12 Months
Product Description

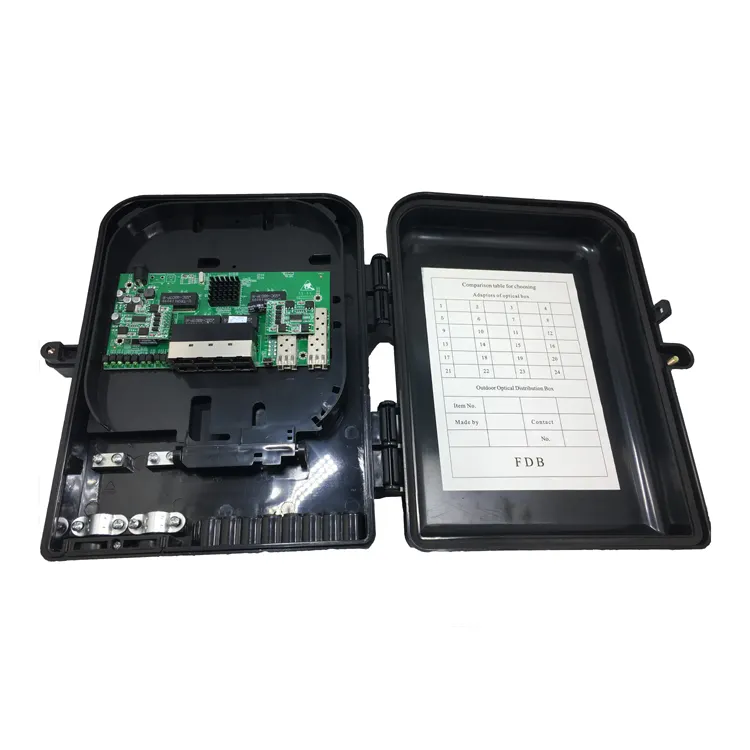

48V 8 port Managed PoE Switch 802.3af/at PoE Switch+ 2 x 1G SFP uplink with IP65 outdoor
8 ports full gigabit managed PoE switch with 2 gigabit sfp slot is very suitable for high definition IP camera (4k) and wireless AP(AC) application. All 8 PoE ports are compliant with IEEE802.3at (PoE+) and 802.3af(PoE) .The PoE switch is provided with 120 watts industry power supply, which can continue operating for long time. It supports Web and SNMP management with function including VLAN, IGMP Snooping, Link Aggregation, QoS, Port Mirror,RSTP. You can build your business network quickly by using it.
Features
* 8*10/100/1000Mbps RJ45 + 2*gigabit fiber optic SFP uplink
* 1-8 ports supporting PoE,IEEE802.3af/at
* Maximum 30 watts per port
* Support VLAN ,IGMP Snooping, Link Aggregation, QoS, Port Mirror,RSTP.
* Total power supply 120 watts
* Auto-detection of PDs to avoid any damage to the connected device
* 8*10/100/1000Mbps RJ45 + 2*gigabit fiber optic SFP uplink
* 1-8 ports supporting PoE,IEEE802.3af/at
* Maximum 30 watts per port
* Support VLAN ,IGMP Snooping, Link Aggregation, QoS, Port Mirror,RSTP.
* Total power supply 120 watts
* Auto-detection of PDs to avoid any damage to the connected device
Application
It can be used for 802.3 at, 802.3 af VoIP ATA,IP Phone, IP camera, AP etc solution.
It can be used for 802.3 at, 802.3 af VoIP ATA,IP Phone, IP camera, AP etc solution.
Technical Specification
|
Technical items
|
Description
|
|
Model No.
|
TS8208P-2FM-IP65
|
|
Standards and Protocols
|
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab,
IEEE 802.3x, IEEE 802.1q, IEEE 802.1p |
|
Interface
|
8 10/100/1000Mbps RJ45 Ports AUTO Negotiation/AUTO MDI/MDIX
|
|
Network Media
|
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m) 100BASE-TX: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) |
|
Power Supply
|
External 48V/52V power Total power consumption 120W/150W/180W (Optional)
|
|
PoE
|
PoE ports: 1-8 ports
PoE power pin: 1/2+,3/6- PoE voltage: DC48-57V |
|
PoE Standard
|
IEEE802.3af,IEEE802.3atMax. 30 watts per port
|
|
Dimensions ( W x D x H )
|
300*240*100mm
|
|
Weight
|
2.5kg
|
|
Hardware Performance
|
|
|
Switching CapacityPacket Forwarding Rate
|
20Gbps
11.9Mpps |
|
MAC Address Table
|
4K
|
|
Packet Buffer Memory
|
1.5Mb
|
|
Jumbo Frame
|
15KB
|
|
Software Features
|
|
|
|
Quality of Service
|
Support Port-based/802.1p/DSCP priority
Support 4 priority queues Rate Limit Storm Control |
|
|
L2 Features
|
IGMP Snooping V1/V2/V3
Link Aggregation Port Mirroring Cable Diagnostics |
|
|
VLAN
|
Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs)MTU/Port/Tag VLAN
|
|
|
Management
|
Web-based GUIEasy Smart Configuration Utility
|
|
|
Transmission Method
|
Store-And-Forward
|
|
|
Others
|
|
|
|
Certification
|
FCC,CE,RoHS
|
|
|
Environment
|
Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
|
Packing & Delivery
Package Type:
1.ESD bag+ Kraft Paper Box+ Carton Box
2.One standard set including 1 device, 1 manual instruction, 1 warranty card.
3. Shipping terms: DHL/UPS/TNT/FedEx/EMS etc.., please contact supplier to get latest shipping time to your country.
4. Enough Stocks, but for large quantities, please contact supplier to get accurate leading time
