Quick Details
-
Product name:
-
MPEG2 HD QAM encoder modulator 1080P ATSC RF Modulator for cable tv
-
Input Connector:
-
HD MI 1.4
-
Video encoding:
-
MPEG-2 HD encoding
-
Output:
-
ATSC or QAM RF
-
Output Level:
-
≥ 45 dBmV
-
Output Frequency Range:
-
50 ~ 999.999MHz
-
Management:
-
Control Keys; Web-NMS
-
Modulation:
-
ATSC, DVB-C J.83B
-
Power Supply:
-
DC 12V
-
Certification:
-
FCC
Quick Details
-
Place of Origin:
-
Sichuan, China
-
Brand Name:
-
Catcast
-
Model Number:
-
HPR1901E
-
Product name:
-
MPEG2 HD QAM encoder modulator 1080P ATSC RF Modulator for cable tv
-
Input Connector:
-
HD MI 1.4
-
Video encoding:
-
MPEG-2 HD encoding
-
Output:
-
ATSC or QAM RF
-
Output Level:
-
≥ 45 dBmV
-
Output Frequency Range:
-
50 ~ 999.999MHz
-
Management:
-
Control Keys; Web-NMS
-
Modulation:
-
ATSC, DVB-C J.83B
-
Power Supply:
-
DC 12V
-
Certification:
-
FCC

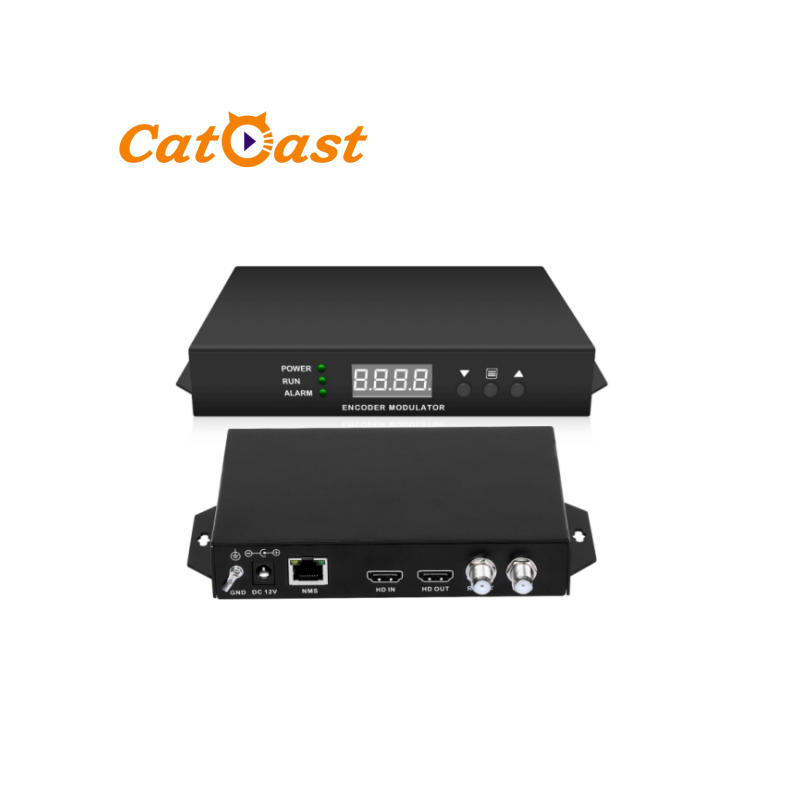

mini MPEG2 HD QAM encoder modulator 1080P ATSC RF Modulator for USA Canada Mexico cable TV
Product Description
HPR1901E MPEG2 HD DVBT encoder modulator is the most cost-effective and smallest form factor solution in the market. With the second HD output port and a RF loop port, user can easily install the system with different requirements. Extremely compact and wall mountable, It fits into any space virtually.
Key Features
1. 1 channels HD input,ATSC/QAM RF output
2. Extremely compact with less than 3CM height
3. Support MPEG2 encoding
4. MER greater than 35dB
5. Integrated HD MI output for HD content quick display
6. High output level with 45dBmV MAX
7. Built-in Web GUI allow for easy set-up and control visa the web browser
Specification
|
ENCODING
|
|
|
|
|
||||
|
Input Connector
|
|
HD MI 1.4
|
|
|
||||
|
VIDEO
|
|
Encoding
|
MPEG 2
|
|
||||
|
|
|
Input Resolution
|
1920*1080_60P; 1920*1080_50P; 1920*1080_60i;
|
|
||||
|
|
|
|
1920*1080_50i; 1280*720_60P; 1280*720_50P
|
|
||||
|
|
|
Bitrate
|
2 ~ 18 Mbps
|
|
||||
|
AUDIO
|
|
Encoding
|
MPEG 1 Layer II
|
|
||||
|
|
|
Sample Rate
|
48KHz
|
|
||||
|
|
|
Bitrate
|
384kbps
|
|
||||
|
MODULATION
|
|
|
|
|
||||
|
ATSC
|
|
Standard
|
ATSC A/53 (6M)
|
|
||||
|
|
|
Bandwidth
|
6M
|
|
||||
|
|
|
Constellation
|
8VSB
|
|
||||
|
|
|
MER
|
≥ 32 dB
|
|
||||
|
DVB-C J.83B
|
|
Standard
|
Annex B (6M)
|
|
||||
|
|
|
Bandwidth
|
6M
|
|
||||
|
|
|
Constellation
|
64QAM, 256QAM
|
|
||||
|
|
|
MER
|
≥ 36 dB
|
|
||||
|
OUTPUT
|
|
|
|
|
||||
|
RF
|
|
Output Level
|
≥ 30dBmV
|
|
||||
|
|
|
Output Frequency Range
|
50 ~ 999.999MHz
|
|
||||
|
|
|
Out-band Rejection
|
≥ 60dB
|
|
||||
|
SYSTEM
|
|
|
|
|
||||
|
Management
|
Control Keys; NMS; APP
|
|
LCN Insertion
|
YES
|
||||
|
Language
|
English
|
|
Upgrade
|
NMS
|
||||
|
GENERAL
|
|
|
|
|
||||
|
Power Supply
|
DC12V 1A
|
|
Power Consumption
|
< 10W
|
||||
|
Net Weight
|
0.36 KG
|
|
Dimension
|
136*165*25 (mm)
|
||||
Related Products
16 Channels HD input, MPEG2 encoding, ATSC DVB-C QAM J.83B modulator
HPR1901E 16 channel HD ATSC QAM MEPG2 encoder modulator, 1 Combined RF output
Packing&Shipping
Package type: each pcs wth soft ,safety polyfoam ,then packed in brown box
Shipping way: it usually take 5-7 days by DHL, TNT, Fedex, UPS to arrive your local place
