- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
OEM
-
Model Number:
-
UV-1600
-
Focal Length:
-
Bandwidth 4nm
-
Wavelength Range:
-
190-1100nm
-
Optical System:
-
Single Beam,Grating 1200 lines/mm
-
Wavelength Accuracy:
-
±0.5nm
-
Wavelength Repeatability:
-
0.3nm
-
Photometric Accuray:
-
±0.5%T or ±0.004A@1A
-
Photometric Range:
-
0-200%T,-0.3-3A,0-9999Conc
-
Stray Light:
-
0.05%T@220nm,360nm
-
Stability:
-
±0.001A/h@500nm
-
Display:
-
Graphic LCD (128*64 dots)
-
Keyboard:
-
22 membrane keypad
-
Standard Cell Holder:
-
4-position 10mm cell changer
Quick Details
-
Warranty:
-
14 months
-
Size:
-
470*373*187mm
-
Weight:
-
14kg
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
OEM
-
Model Number:
-
UV-1600
-
Focal Length:
-
Bandwidth 4nm
-
Wavelength Range:
-
190-1100nm
-
Optical System:
-
Single Beam,Grating 1200 lines/mm
-
Wavelength Accuracy:
-
±0.5nm
-
Wavelength Repeatability:
-
0.3nm
-
Photometric Accuray:
-
±0.5%T or ±0.004A@1A
-
Photometric Range:
-
0-200%T,-0.3-3A,0-9999Conc
-
Stray Light:
-
0.05%T@220nm,360nm
-
Stability:
-
±0.001A/h@500nm
-
Display:
-
Graphic LCD (128*64 dots)
-
Keyboard:
-
22 membrane keypad
-
Standard Cell Holder:
-
4-position 10mm cell changer

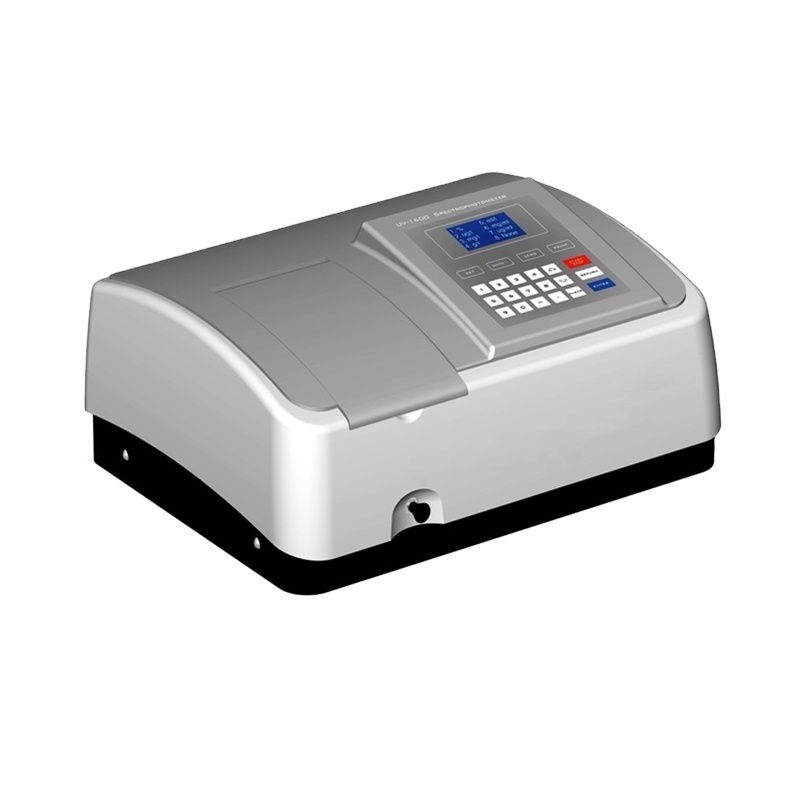

spectrophotometer price uv vis spectrophotometer with large LCD screen
UV-1600
Characteristics:
1. Large LCD screen (128*64 Dots).
2. System can also save the test results, total 200 groups of data 200 standard curves can be saved in the RAM. Convenient for check and reload.
3. Data can be restored after a sudden power cut.
4. Auto setting wavelength.
5. Tungsten & Deuterium lamp can be turned on/off individually to extend lifetime.
6. The optional application software M. Wave Professional provides complete control of the spectrophotometer from a computer through the Built-in USB port. It can expand to the following functions: Quantitative, Kinetics, Wavelength Scan, Multi-wavelength & DNA/Protein Test.
7. Pre-aligned design makes it convenient to change lamps.
8. Large sample compartment, it can accommodate 5-100mm path length cuvettes with optional holders. A variety of optional accessories are available.
Technical data:
|
Model |
UV-1600 |
|
Wavelength Range |
|
|
4nm |
|
|
Optical System |
|
|
Wavelength Accuracy |
|
|
0.3nm |
|
|
±0.5%T or ±0.004A@1A |
|
|
0-200%T,-0.3-3A,0-9999Conc |
|
|
0.05%T@220nm,360nm |
|
|
±0.001A/h@500nm |
|
|
Graphic LCD (128*64 dots) |
|
|
22 membrane keypad |
|
|
Standard Cell Holder |
4-position 10mm cell changer |
|
Sample Compartment |
Standard 10mm pathlength cuvette |
|
Light Source |
Tungsten & Deuterium lamp |
|
Output |
USB Port & Parallel Port (Printer) |
|
Power Requirement |
AC 110/220V 50/60HZ |
|
Dimension(L*W*H) |
|
|
Weight |
14kg |
