Quick Details
-
Brand Name:
-
ocean
-
Voltage:
-
380, 380
-
Power:
-
16000
-
Dimension(L*W*H):
-
2200*1200*1800mm
-
Weight:
-
2000 kg, 1800 Kg
-
Core Components:
-
Other
-
Feature:
-
High Efficiency
-
Function:
-
Multifunctional
-
Finished Products:
-
Kraft Paper
-
Name:
-
Disposable Plastic Cup Making Machine
-
Product name:
-
Paper Pulper Machine
-
Raw material:
-
PE Coated Paper
-
Application:
-
Packing Industry
-
Output paper:
-
Kraft Paper Core
Quick Details
-
Production Capacity:
-
Other
-
Applicable Industries:
-
Other
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
ocean
-
Voltage:
-
380, 380
-
Power:
-
16000
-
Dimension(L*W*H):
-
2200*1200*1800mm
-
Weight:
-
2000 kg, 1800 Kg
-
Core Components:
-
Other
-
Feature:
-
High Efficiency
-
Function:
-
Multifunctional
-
Finished Products:
-
Kraft Paper
-
Name:
-
Disposable Plastic Cup Making Machine
-
Product name:
-
Paper Pulper Machine
-
Raw material:
-
PE Coated Paper
-
Application:
-
Packing Industry
-
Output paper:
-
Kraft Paper Core
Product Description

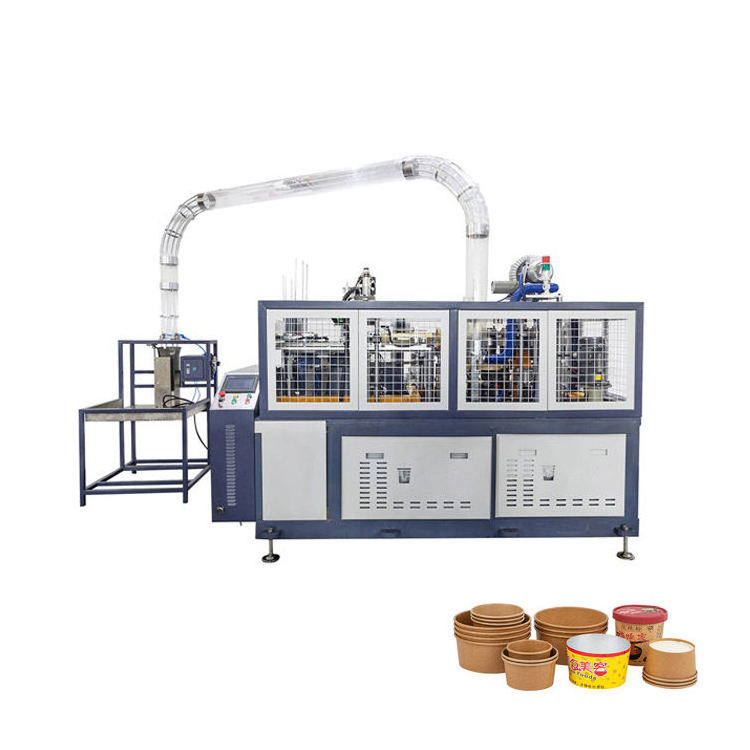

WJ-80 medium-speed paper bowl machine is a machine according to south Korean technology, with automatic feed, preheating, sealing side, lubrication, knurling, edge, etc. Machine use light eyes and encoder to control the production process, with points, the function of the closed cup. WJ - 80 paper bowl machine can use single-side and double-side film laminating material, the production of a salad bowl, bowl of noodles, now popular take-away packaging bowl and so on.
Main Features
1. Machine adopts the sheave drive, automatic lubrication system, make the machine more stable performance, long service life.
2. Independent knurling design, make the machine running schedule to narrow, noise is reduced, the service life longer.
3. Machine adopts PLC and touch screen control, all imported equipment configuration, automation, and reached a new level.
4. Machine with automatic counting function of cup, use more convenient, reduce labor cost.
Specification
|
Technical Parameters of Paper Bowl Machine
|
|
|
|
Model
|
WJ-80
|
|
|
Paper bowl Size
|
Top: 90mm-140mm, Bottom: 70mm-110mm Hight: 50-105mm
|
|
|
Raw Material
|
One-side or two-side PE coated paper(Singe PE or Double PE coated paper)
|
|
|
Speed
|
70-80pcs/min Speed of 20 hours stable running per day
|
|
|
Suitable paper weight
|
170-350gsm
|
|
|
Working Air Source
|
Air pressure 0.6-0.8Mpa, 0.4m3/min，User should buy Air Compressor
|
|
|
Power
|
16kw
|
|
|
Dimensions
|
2200*1200*1800mm
|
|
|
Weight
|
2000kg
|
|
|
Air use
|
0.5-0.8 MPa,0.5 Cubic/min
|
|
|
Voltage
|
380V50HZ or customized
|
|
|
Cup Side Sealing
|
EVERGREEN Ultrasonic
|
|
|
The machine includes: Finished Bowl Collect System，We can customize machine and mold according to customer’s requirement.
|
|
|
