Quick Details
-
Operating System:
-
Windows 10
-
Type:
-
Tablet PC
-
Weight:
-
1155g
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
rugged tablet windows
-
Model Number:
-
WinPad W109
-
Keyword:
-
windows 10 rugged tablet
-
Function:
-
industrial tablet pc rs232
Quick Details
-
Screen Size:
-
10.1"
-
Memory Capacity:
-
≥ 4GB
-
Display resolution:
-
1280x800
-
Operating System:
-
Windows 10
-
Type:
-
Tablet PC
-
Weight:
-
1155g
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
rugged tablet windows
-
Model Number:
-
WinPad W109
-
Keyword:
-
windows 10 rugged tablet
-
Function:
-
industrial tablet pc rs232
1000 Nits touch screen Z8350 CPU 4GB RAM 64GB ROM 4G LTE Industrial tablets WinPad W109 IP67 Waterproof rugged tablet windows
Advantage
1) Windows 10 Operation System
2) USB Type-A/RJ45 Port/RS232 Ports
3) Built-in uBox M7N GNSS Module
4) IP67 Waterproof
5) 10.1 Inch Corning Gorilla III Screen
6) Intel Z8350 Quad Core Processor
7) 4GB RAM+64GB ROM
8) Removable 8500mAh Battery
9) 1000 Nits Screen/1D/2D/RFID/NFC/Fingerprint Optional
2) USB Type-A/RJ45 Port/RS232 Ports
3) Built-in uBox M7N GNSS Module
4) IP67 Waterproof
5) 10.1 Inch Corning Gorilla III Screen
6) Intel Z8350 Quad Core Processor
7) 4GB RAM+64GB ROM
8) Removable 8500mAh Battery
9) 1000 Nits Screen/1D/2D/RFID/NFC/Fingerprint Optional

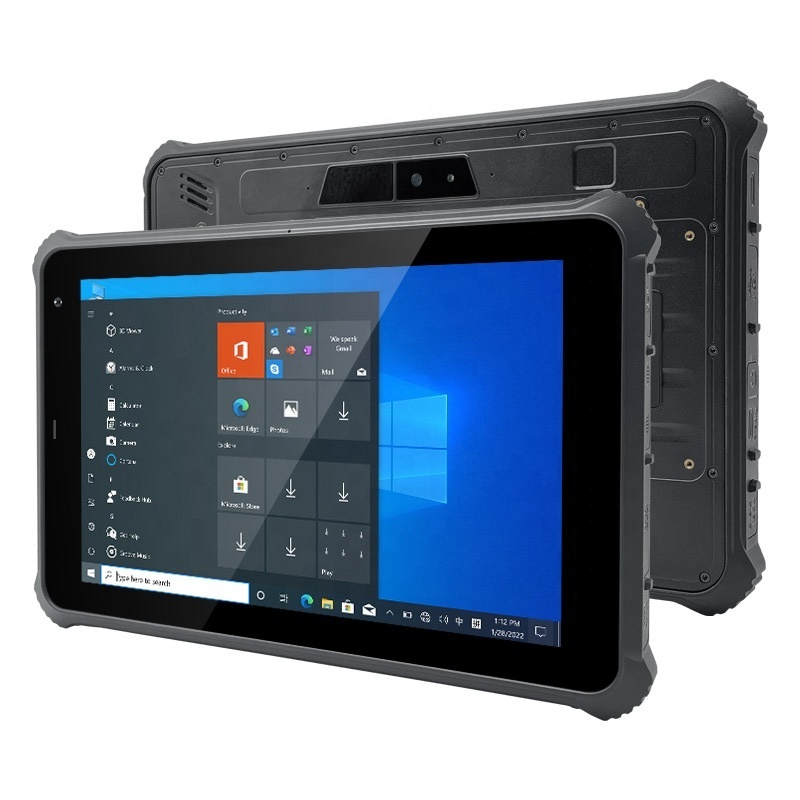

Product Photos
Products Description
|
BASIC INFO
|
|
|
|
Model No.
|
WinPad W109
|
|
|
Operating system
|
Windows 10 home (Win 10 pro, Win 10 IOT optional)
|
|
|
Dimension
|
277.48*182.74*21.5mm
|
|
|
Weight
|
1155g
|
|
|
Material
|
PC+TPU
|
|
|
Color
|
Black (can be customized)
|
|
|
Language
|
Multi-language
|
|
|
HARDWARE
|
|
|
|
Display
|
10.1 inch Corning Gorilla III IPS capacitive touch screen, 1280*800px, 450cd/㎡
|
|
|
Processor
|
Intel Cherry Trail Z8350 quad core, 1.44GHz ~ 1.92GHz; GPU: Intel HD Graphics Gen8
|
|
|
RAM
|
4GB RAM
|
|
|
ROM
|
64GB ROM (32GB/128GB ROM optional), support TF card up to 256GB maximally
|
|
|
Camera
|
Rear camera: 5MP; Front camera: 2MP
|
|
|
Battery
|
Removable 3.8V/8500mAh Li-ion battery
|
|
|
Sensor
|
Gravity sensor
|
|
|
Speaker
|
*2, 1.2W/8Ω
|
|
|
Receiver
|
*1
|
|
|
Mic
|
*2
|
|
|
Keys
|
Power key, Volume+/-, P-Key, F-Key
|
|
|
Indicator light
|
*1
|
|
|
NETWORK & CONNECTIVITY
|
|
|
|
Bands
|
2G: GSM 900/1800MHz
|
|
|
|
3G: WCDMA 850/900/2100MHz
|
|
|
|
4G: FDD-LTE B1/B3/B5/B7/B8/B20, TDD-LTE B38/B40/B41
|
|
|
WiFi
|
IEEE 802.11a/b/g/n/ac, support 2.4G/5.8G dual-band WiFi
|
|
|
BT
|
V4.0(BLE), ~10 meter
|
|
|
GNSS
|
Built-in U-box M7N module, support GPS/BDS
|
|
|
I/O INTERFACES
|
|
|
|
Micro SIM Slot
|
*1
|
|
|
TF Card slot
|
*1
|
|
|
USB Type-C 2.0
|
*1, Support OTG
|
|
|
USB Type-A 2.0
|
*1
|
|
|
RJ45 Ethernet Port
|
*1, 100Mbps
|
|
|
RS232
|
*1
|
|
|
DC-IN
|
*1
|
|
|
Mini HD-MI
|
*1
|
|
|
3.5mm Audio Jack
|
*1
|
|
|
Pogo Pin
|
*1
|
|
|
CONINVERS
|
RS232/USB/DC5V/CAN BUS optional
|
|
|
OPTIONAL FUNCTIONS
|
|
|
|
NFC
|
13.56MHz, Support: 14443A/14443B/15693
|
|
|
UHF RFID
|
PR9200, Read distance: 1.5m-3m; Read distance 2: 5m-8m
|
|
|
ID Card Reader
|
Support reading 2th Generation ID card
|
|
|
Fingerprint
|
1: Ordinary industrial fingerprint
2: Fingerprint authentication by the Ministry of Public Security 3: FBI certified fingerprint |
|
|
1D barcode scanner
|
Zebra SE655
|
|
|
2D barcode scanner
|
Zebra SE2707
|
|
|
Screen
|
800cd/㎡(1920*1200px),1000cd/㎡(1280*800px),Wet hand touch, Glove touch, Active/passive capacitor pen, AG+AF Coating, AR Coating
|
|
|
RELIABILITY
|
|
|
|
Waterproof
|
IP67
|
|
|
Drop-proof
|
1.2M,Cement floor
|
|
|
Temperature range
|
Operating: -20℃~60℃ Storage: -30℃~70℃
|
|
|
ACCESSORIES
|
|
|
|
Charger(5V/3A)
|
*1
|
|
|
User Manual
|
*1
|
|
|
Hand strap
|
Optional
|
|
|
Mounted bracket
|
Optional
|
|
|
Standby Battery
|
Optional
|
|
|
Docking
|
Optional
|
|
|
Type-C Cable
|
Optional
|
|
|
OTG Cable
|
Optional
|
|
