Quick Details
-
Cooling Mode:
-
Air Cooling
-
Control Software:
-
Ezcad
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
HOOLY/Helilaser
-
Marking Head Brand:
-
Galvotech
-
Weight (KG):
-
150 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Marking speed:
-
≤7000mm/s
-
Moving system:
-
cnc control units
-
Weight:
-
200kg
-
Power(W):
-
100W
-
Working voltage:
-
220v±10%/50Hz/4A
-
working area:
-
600x600mm-1200*1200(mm)
-
Minimum character:
-
0.1mm
-
Product name:
-

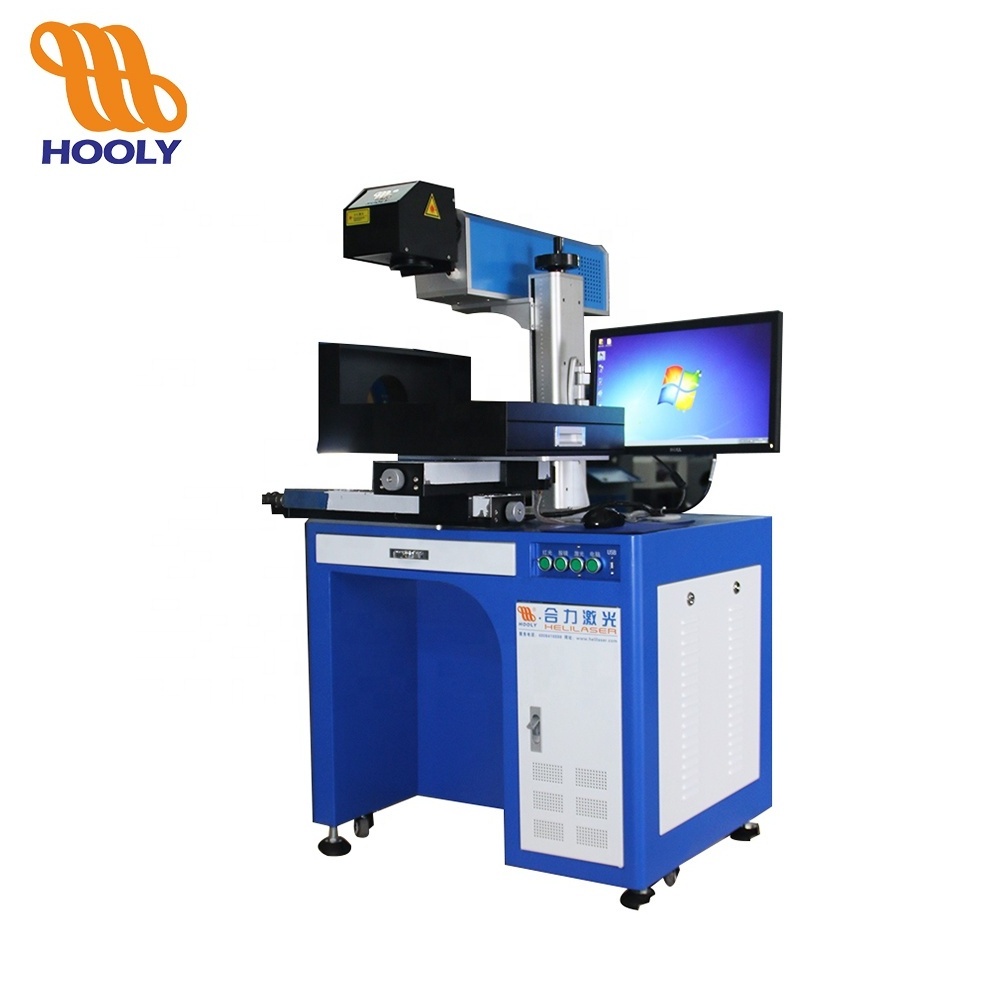

Portable metal Laser Marking Machine
Quick Details
-
Working Accuracy:
-
0.02mm
-
Graphic Format Supported:
-
AI, BMP, Dst, Dwg, DXF, DXP, LAS, PLT
-
Laser Type:
-
Fiber Laser
-
Cooling Mode:
-
Air Cooling
-
Control Software:
-
Ezcad
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
HOOLY/Helilaser
-
Marking Head Brand:
-
Galvotech
-
Weight (KG):
-
150 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Marking speed:
-
≤7000mm/s
-
Moving system:
-
cnc control units
-
Weight:
-
200kg
-
Power(W):
-
100W
-
Working voltage:
-
220v±10%/50Hz/4A
-
working area:
-
600x600mm-1200*1200(mm)
-
Minimum character:
-
0.1mm
-
Product name:
-
Portable metal Laser Marking Machine
HL-Mopa Series Fiber Laser Marking Machine,
HL-UV Series Laser Marking Machine,
HL-Co2 Series Laser Marking Machine,
Marking On-the-Fly, are also available, please inquiry for more details!!
Advantage Features
1, Adopt German technology, all core parts are imported, the laser usage life up to 100000 hours.
2, Small volume, convenient installation; free Maintenance.
3, Stable and reliable; No consumables, low power consumption energy –saving.
4, Beam quality is wonderful, mark is clear and fine
5. It is with irreplaceable advantage in the field where need high requirements for the processing's depth,
smoothness and precision (e.g. mold industry, the bitmap marking industry).
♣1. Technique Parameters:
|
Model |
HL-MF-20W |
HL-MF-30W |
|
Max laser power: |
20W |
30W |
|
Marking area: |
70mm×70mm/100mm×100mm/150mm×150mm Optional |
|
|
minimum linewidth: |
0.02mm |
|
|
Laser wavelength: |
1064nm |
|
|
Maxmum working speed |
12000 mm/s |
|
|
Repetition rate: |
20KHz~100KHz |
|
|
Machine power: |
≤250W |
|
|
Cooling mode: |
Air colling |
|
|
Machine Dimension: |
800×800×1450(mm) |
|
♣2. Laser Marking machine Detail Configutration:
|
A. Industrial computer can adapt to harsh environments |
| B. Radio frequency laser imported from United States |
| C. lens and beam expander system imported from U.S. |
|
D. High-lift platform imported from U.S. |
|
E. Industrial Chiller(*Particular Model) |
|
F. Industrial control computer and DP semiconductor power system. |
|
|
|
