Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
SOLUXLED
-
Model Number:
-
JS-100-12/JS-100-24
-
Output Frequency:
-
50-/60Hz
-
Output Current:
-
8.33a/4.17A
-
Name:
-
Switching Power Supply
-
Type:
-
Constant Voltage
-
Efficiency:
-
>88%
-
Warranty:
-
2years
-
Protection:
-
Short Circuit Over Load
-
Working temperature:
-
-30~+70℃
-
Working Humidity:
-
20 ~ 95% RH Non-condensing
Quick Details
-
Output Power:
-
51 - 100W
-
Input Voltage:
-
AC220V
-
Output Voltage:
-
12V/24V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
SOLUXLED
-
Model Number:
-
JS-100-12/JS-100-24
-
Output Frequency:
-
50-/60Hz
-
Output Current:
-
8.33a/4.17A
-
Name:
-
Switching Power Supply
-
Type:
-
Constant Voltage
-
Efficiency:
-
>88%
-
Warranty:
-
2years
-
Protection:
-
Short Circuit Over Load
-
Working temperature:
-
-30~+70℃
-
Working Humidity:
-
20 ~ 95% RH Non-condensing
Product Description

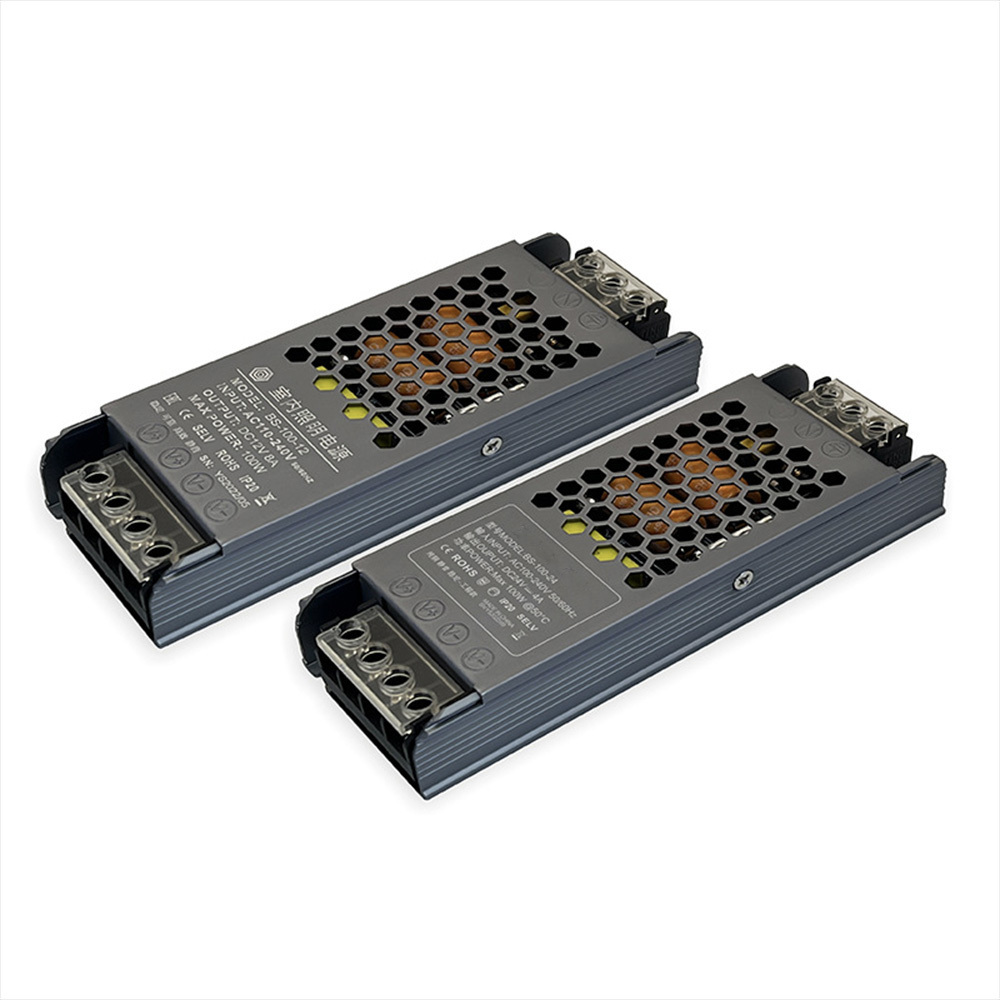

100W ac to dc 12v 24v led switching power supply for lighting box led strip
| MODEL | JS-100-12/JS-100-24 | |
| OUTPUT | DC VOLTAGE | DC12V/DC24V |
| RATED CURRENT | 8.33A/4.17A | |
| RATED POWER | 100W | |
| INPUT | VOLTAGE RANGE | AC220V |
| FREQUENCY RANGE | 47-63Hz | |
| EFFICIENCY(Typ.) | >88% | |
| PROTECTION | SHORT CIRCUIT | Hiccup mode, recovers automatically after fault condition is removed. |
| OVER LOAD | Protection type: Shut down o/p voltage, re-power on to recover | |
| Function | DIMMABLE FUNCTION | Non |
| OTHERS | DIMENSION | 138*50*23MM |
| PACKING | 0.15kg | |
| WORKING TEMP. | -30~+70℃ | |
| WORKING HUMIDITY | 20~95% RH non-condensing | |
