Quick Details
-
Memory Type:
-
DDR3
-
Graphics Card Type:
-
Integrated
-
Brand Name:
-
ELSKY
-
Place of Origin:
-
Guangdong, China
-
CPU:
-
Celeron J1900
-
FSB / HT:
-
1333/1600MHz
-
Warranty:
-
3 Year
-
Certification:
-
CE FCC ROHS EMC ISO S-GS
-
Interface:
-
COM,USB3.0 USB2.0 LAN etc.
-
Power Supply:
-
DC 12V 5A
Quick Details
-
Maximum Ram Capacity:
-
8GB
-
Application:
-
LAPTOP
-
Form Factor:
-
mini itx
-
Memory Type:
-
DDR3
-
Graphics Card Type:
-
Integrated
-
Brand Name:
-
ELSKY
-
Place of Origin:
-
Guangdong, China
-
CPU:
-
Celeron J1900
-
FSB / HT:
-
1333/1600MHz
-
Warranty:
-
3 Year
-
Certification:
-
CE FCC ROHS EMC ISO S-GS
-
Interface:
-
COM,USB3.0 USB2.0 LAN etc.
-
Power Supply:
-
DC 12V 5A

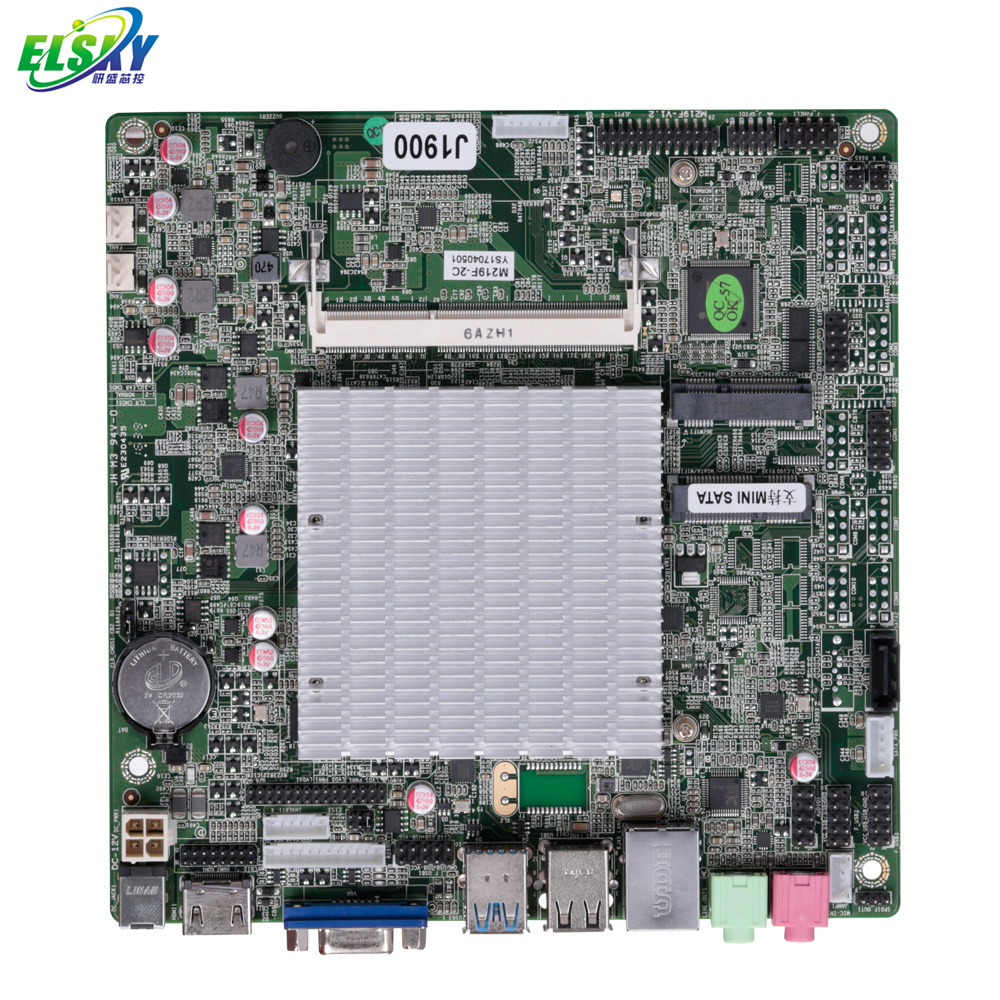

ELSKY OEM MOTHERBOARD Fanless Intel Celeron J1900 Quad Core 2.4G Mini-ITX Motherboard (J1800 orJ2900 Option) with CE FCC ROHS
Features
1. It's the Fanless evolution of Mini-ITX form factor I ndustrial Motherboard developed by ELSKY , with Intel Bay t rail Celeron J1900 Quad Core 2.4G onboard (J1800 or J2900 Option).
2.It provides 1×Mini-PCIE to support Wifi/ 3G/ MSATA.
3 . It provides 1 ×DDR3 L SODIMM Socket supporting a memory up to 8 GB ;
SATA and MSATA storage modes.
4. It supports independent Dual view, VGA +HD(-MI)/LVDS.
5. It can support GPIO .
Specifications
|
Processor |
In--tel Celeron J1900,Quad Core 2.4G (J1800 or J2900 Option) |
|
Chipset |
SOC Single Chipset |
|
Memory |
1 x DDR 3L Slot ,Support up to 8G |
|
Ethernet |
1 x 1000M Lan ,Realtek GBE RJ45,8111 F (2 Lan option) |
|
Audio |
Realtek HD Audio,Support Line-in,Line-out,Mic-in,Spdif,Speaker |
|
Display |
VGA,HD(-MI),LVDS. |
|
Storage |
2 xS ATA2 .0, 1 xMSATA |
|
Power Supply |
DC 12V Power Supply, 5A Recommend |
|
CPU_Fan |
Fanless |
|
Size |
Mini-ITX ,170mm x170mm x 18mm |
|
Rear I /O |
DC_in, HDMI ,VGA,4x USB,1xLan,1xLine-Out,1xMic_in.(2xLan option) |
|
Built-in I/O |
1x24bit LVDS, 6xUSB2.0, 2xCom(10xCom option, 3xRS485/RS422 option ), 1xLPT, ,1x PS/2,2xFan_Slot,SIM Card slot, Spdif, VGA header (12P standard) |
|
Expansion |
2 xMini-PCIE , Support Wifi,3G,1*MSATA |
|
Operating Temperature |
-10 ℃ to 60 ℃ |
|
Storage Temperature |
-40 ℃ to 80 ℃ |
|
Operating Humidity |
0-95% |
|
Watchdog |
Option |
|
H/W Monitoring |
Monitor the state of voltage,temperature and rotational speed of the fan |
Every item will be tested and packed
carefully
with individual Anti-static bubble bag and separated by stiff cardboards in carton boxes.
