Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Model Number:
-
2000A-12V
-
Output Frequency:
-
20KHZ
-
Output Current:
-
2000A
-
Product Name:
-
Three phase water cooling hard chrome electroplating rectifier
-
Input voltage:
-
Three phase AC220V/380V/415V/440V
-
Output voltage:
-
12V/15V/18V/24V/48V
-
Output current:
-
0-500A/1000A/2000A/3000A/5000A/8000A/10000A
-
Cooling way:
-
Air cooling/water cooling
-
Efficiency:
-
≥90%
-
PLC interface:
-
RS485,0-10V/4-20mA
-
Communication protocol:
-
MODBUS/PROFIBUS/PROFINET
-
Application:
-
Nickel copper zinc chrome plating;water treatment;electrolysis
-
Certification:
-
CE ROHS
Quick Details
-
Output Power:
-
>500W
-
Input Voltage:
-
380
-
Output Voltage:
-
12V
-
Place of Origin:
-
Jiangsu, China
-
Model Number:
-
2000A-12V
-
Output Frequency:
-
20KHZ
-
Output Current:
-
2000A
-
Product Name:
-
Three phase water cooling hard chrome electroplating rectifier
-
Input voltage:
-
Three phase AC220V/380V/415V/440V
-
Output voltage:
-
12V/15V/18V/24V/48V
-
Output current:
-
0-500A/1000A/2000A/3000A/5000A/8000A/10000A
-
Cooling way:
-
Air cooling/water cooling
-
Efficiency:
-
≥90%
-
PLC interface:
-
RS485,0-10V/4-20mA
-
Communication protocol:
-
MODBUS/PROFIBUS/PROFINET
-
Application:
-
Nickel copper zinc chrome plating;water treatment;electrolysis
-
Certification:
-
CE ROHS

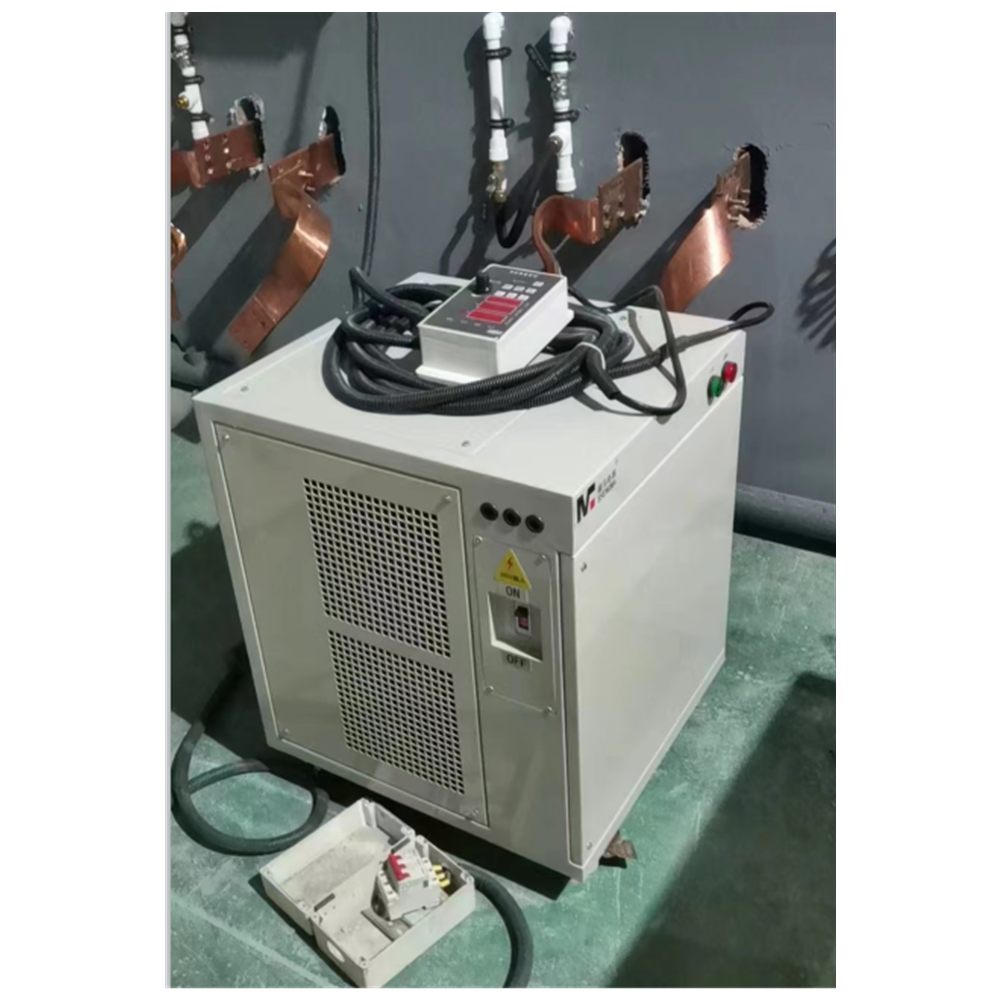

High quality 12 V 2000A electroplating rectifier
Three Phase
High frequency switching power supply rectifier for gold/chrome/copper
plating
Specification
|
Item
|
Content
|
|
Model
|
2000A-12V
|
|
Power factor
|
≥0.93 @ rated output
|
|
Ambient temp.
|
Max. 50°
|
|
Regulation range
|
Stepless at constant voltage or current 0-100%
|
|
Protection class
|
Up to IP54 for water cooling, IP32 for air cooling
|
|
Output DC voltage
|
0-12V
|
|
Control precision
|
Voltage/current≤1%
|
|
Output DC current
|
0-2000A
|
|
Control mode
|
Constant current/voltage/power
|
|
Input voltage
|
1 phase 110V,220V;3 phase AC 380V±15%, 480V, 415V, ±10%, 50-60Hz
|
|
Operation mode
|
Manual/remote
|
|
Manual control
|
Remote digital box
|
|
Cooling way
|
Air cooling/water cooling
|
|
Relative humidity
|
15%-85%RH
|
|
Efficiency
|
>90% @ rated output
|
|
PLC interface
|
RS485,0-10V/4-20mA
|
|
Communication protocol
|
MODBUS/PROFIBUS/PROFINET
|
|
Application
|
Nickel copper zinc chrome plating;water treatment;electrolysis
|
|
HMI
|
Touch panel or digital meters/buttons
|
|
Process programming
|
Available
|
|
Polarity reverse
|
Available
|
|
Spare parts
|
Available
|
|
Package
|
Plywood case for export
|
Details Images
Related product
Packing & Delivery
The normal package is plywood box.If need, we will pack it according to customers special request.
|
Delivery Clause
|
EXW,FOB,CFR,CIF,Express Delivery
|
|
Payment Currency
|
USD
|
|
Payment Terms
|
1.≤USD10000，full payment before delivery.
|
|
|
2.≥USD10000,50% in advance,50%balance before delivery.
|
|
Accepted Payment Type
|
TT,Cash,Western Union
|
