Quick Details
-
Pressure:
-
Internal pressure
-
Structure:
-
standard, Radial Piston Motor
-
Weight:
-
50
-
Power:
-
standard
-
Dimension(L*W*H):
-
standard
-
Brand Name:
-
JINJIA, JINJIA
-
Place of Origin:
-
Shandong, China
-
Product name:
-
MS/MSE Series Radial Piston Hydraulic Motor
-
Material:
-
Cast Iron
-
Application:
-
Agriculture/Engineering/Coal mining/Marine /Construction Machinery
-
Color:
-
Black/Orange/Customer's Request
-
Usage:
-
Hydraulic Drive Field/Kinds Hydraulic Hose
-
Certificate:
-
ISO9001:2008 / CE
-
Certification:
-
CE/ISO
Quick Details
-
Warranty:
-
1 Year
-
Motor Type:
-
Other
-
Displacement:
-
Other
-
Pressure:
-
Internal pressure
-
Structure:
-
standard, Radial Piston Motor
-
Weight:
-
50
-
Power:
-
standard
-
Dimension(L*W*H):
-
standard
-
Brand Name:
-
JINJIA, JINJIA
-
Place of Origin:
-
Shandong, China
-
Product name:
-
MS/MSE Series Radial Piston Hydraulic Motor
-
Material:
-
Cast Iron
-
Application:
-
Agriculture/Engineering/Coal mining/Marine /Construction Machinery
-
Color:
-
Black/Orange/Customer's Request
-
Usage:
-
Hydraulic Drive Field/Kinds Hydraulic Hose
-
Certificate:
-
ISO9001:2008 / CE
-
Certification:
-
CE/ISO

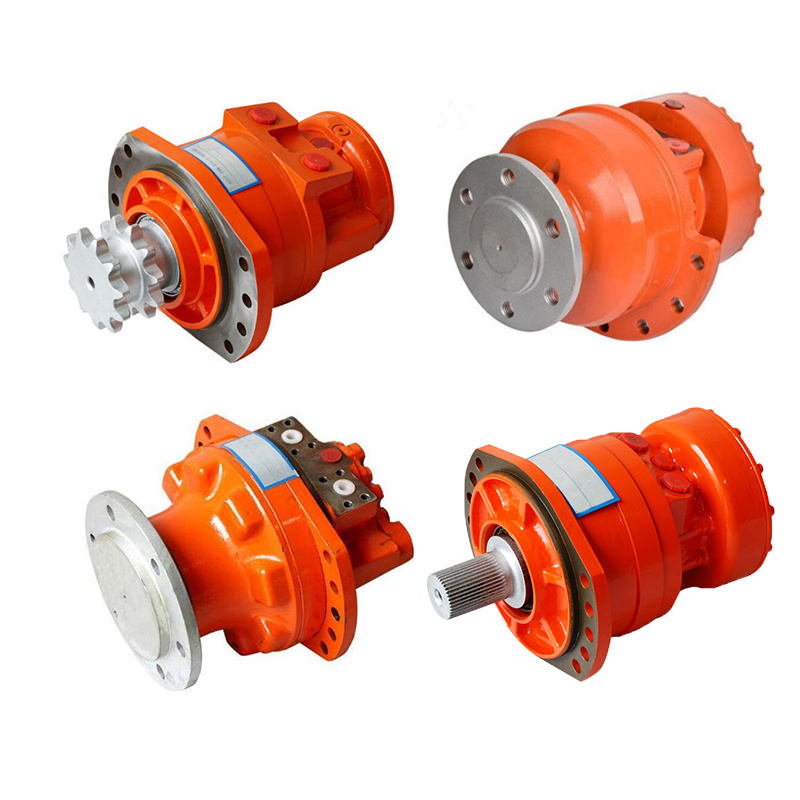

M S /M SE type radial piston hydraulic motor
Jinjia brand MS/MSE Series Hydraulic Motor is one kind of low speed high torque radial piston motor with modular design, multi-disc brake (holding brake) ,high pressure tolerance, smooth running even at very low speeds, available with different valves.
The MS/MSE series motor can be added all kinds of hydraulic valves, mechanical brake, wheel output shaft and other components, motor can make a double displacement, multi-functions collocation can meet the needs of users in various fields.
The MS/MSE hydraulic motor is widely used in shearer, skid steer loaders, DTH drill, rotary drilling ilg, small road header, mixer, cutting machine, heavy duty handling car,cavenging machine, aircraft tractor, beam carrier,hoisting machineport crane,boring machine, scraper, mini farming vehicle, ditcher,heavy-duty truck and coal mine drilling machine.
100% interchangeable with original Poclain MS/MSE series 02/05/08/11/18/25/35/50/83/125/250 motors!
Part Name List
|
Item |
Description |
Quantity |
Remark |
Item |
Description |
Quantity |
|
1 |
Drice Shaft |
1 |
|
10 |
Plastic Block |
20 |
|
2 |
Front Cover |
1 |
|
11 |
Distributor |
1 |
|
3 |
Stator |
1 |
|
12 |
Rear Cover |
1 |
|
4 |
Rotor |
1 |
|
13 |
Adjusting Shim |
1 |
|
5.1 |
Plunger Piston |
10 |
MS08 |
14 |
Dynamic Friction |
14 |
|
5.2 |
Plunger Piston |
10 |
MSE08 |
15 |
Static Friction |
15 |
|
6 |
Roller |
10 |
|
16 |
Brake Clinder |
1 |
|
7 |
Piston Ring |
10 |
|
17 |
Brake Shaft |
1 |
|
8 |
Bushing |
10 |
|
18 |
Brake Plunger |
1 |
|
9 |
Spring Pin |
10 |
|
19 |
Cover Plate |
1 |
*Our spare parts referenee the original parts size of Poclain hydraulic motor, and can completely replace the original series spare parts of Poclain with high accuracy and same dimension!*
MS/MSE hydraulic motor is widely used in scraper, roller (MK Series), beam carrier/ hoisting machines, fire truck, spraying machine, tobacco machine, milling machine, Load Digger, slag removing machine, Road Header, scraper, excavator, heavy-duty truck and coal mine drilling
machine.
Engineering Machinery :Cinder,Skid steer loader, Explosion- proof Forklift,Forklift,
Beam Carrier/Hoisting Machine ;
Farming Machinery : Mini Farming Vehicle, Combine Harvesters and Cotton Pickers ;
Mining Machinery :Scraper,Road Header,Heavy Duty Handling Car,Coal Mine Drill ;
Special Vehicles :Fire Engine ;
