Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Lucky
-
Production name:
-
tunnel greenhouse steel frame greenhouse light dep
-
Structure:
-
hot galvanized steel with 275g/m2 zinc coat
-
Length:
-
customize from 16-100m
-
Width:
-
customize from 8-12m
-
Height:
-
4.5m or customized
-
Covering material:
-
UV guarantee 3 layers blackout curtain
-
Application:
-
medical planting, hemp for USA,Canada
-
Advantage:
-
100% darkness&easy assemble
-
Optional system:
-
cooling/ light/heating /shading net
Quick Details
-
Size:
-
Large
-
Type:
-
100x30ft,105x30ft
-
Model Number:
-
blackout greenhouse,Light deprivation greenhouse
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Lucky
-
Production name:
-
tunnel greenhouse steel frame greenhouse light dep
-
Structure:
-
hot galvanized steel with 275g/m2 zinc coat
-
Length:
-
customize from 16-100m
-
Width:
-
customize from 8-12m
-
Height:
-
4.5m or customized
-
Covering material:
-
UV guarantee 3 layers blackout curtain
-
Application:
-
medical planting, hemp for USA,Canada
-
Advantage:
-
100% darkness&easy assemble
-
Optional system:
-
cooling/ light/heating /shading net
Product Description
Characteristic of b lackout light deprivation greenhouse
1. Light deprivation systems are customized for your greenhouse structure.
2. Offers growers greater flexibility when staging their crop cycles.
3. Protect crops from light contamination from neighbors, street lights, etc.
4. Reduce the amount of supplemental light reflecting out of the greenhouse at night.
5.Curtains provide simplicity, ease of installation, operation and control.
6. Light deprivation curtains are UV-stabilized for longest lifespan.
7. Offer daylight control and additional energy savings.
2. Offers growers greater flexibility when staging their crop cycles.
3. Protect crops from light contamination from neighbors, street lights, etc.
4. Reduce the amount of supplemental light reflecting out of the greenhouse at night.
5.Curtains provide simplicity, ease of installation, operation and control.
6. Light deprivation curtains are UV-stabilized for longest lifespan.
7. Offer daylight control and additional energy savings.
Specification
|
Specification of blackout greenhouse
|
|
|
|
Length
|
52-328ft (16-100m), customized according to your request
|
|
|
Width
|
26-40ft (8-12m),customized
|
|
|
Roof height
|
10-20ft (3-6m),customized
|
|
|
Wall height(shoulder heigth)
|
6.5-13ft (2-4m),customized
|
|
|
Covering Material
|
150micron or 200micron Plastic film/PO film/PC sheet/Glass
|
|
|
Greenhouse skeleton
|
275g/sqm zinc coat hot galvanized steel pipe(diameter of pipe:40mm,50mm,60mm)
|
|
|
Blackout system
|
Three layers blackout curtain,99.99% stop the light get into the greenhouse
|
|
|
Control system
|
Automatic control system for light dep system, cooling system, top ventilation, temperature, humidity, light control system
|
|
|
Voltage
|
230v, 240v,110v, 120v,380v or customized
|
|
|
Option
|
Cooling fan,cooling pad,lights,heater,ground cover,shade net,irrigation system
|
|
|
Wind Load
|
0.6KN/M2 (If necessary, a stronger skeleton will be designed)
|
|
|
Snow Load
|
0.5KN/M2 (If necessary, a stronger skeleton will be designed)
|
|
|
Rain load
|
140mm/h (If necessary, a stronger skeleton will be designed)
|
|
Drawing of blackout greenhouse
We can supply install drawing.
Our drawing clearly shows what accessories are installed where, which greatly saves your
installation time
installation time
Details Images

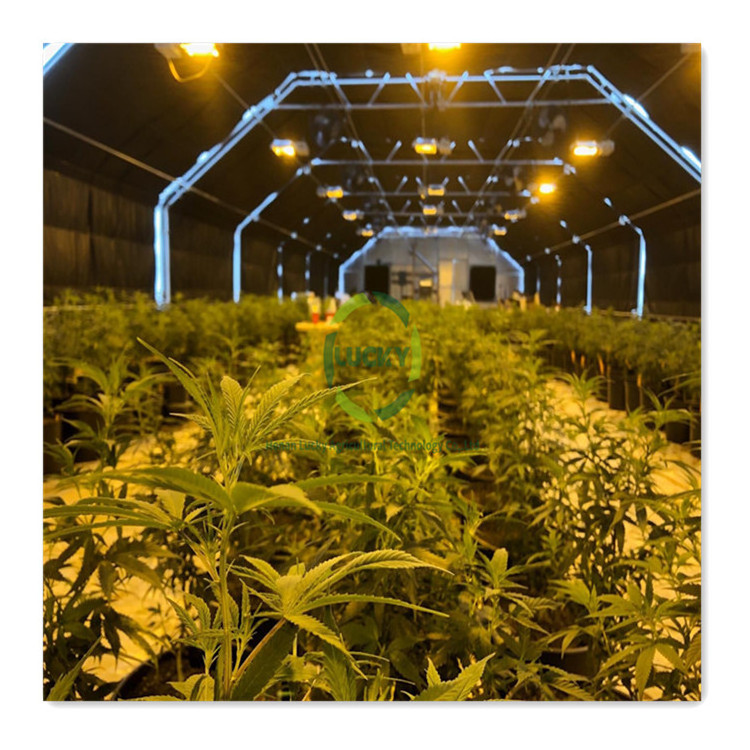

Greenhouse Steel structure
1.275g/sqm zinc coated hot galvanized steel framework,anti-rust for over 15 years
2.Arch pipe：Optional diameter of arch pipe, Φ42*2.0 mm/ Φ50*2.0 mm/ Φ60*2.0 mm/Oval tube
3.Roof Purlin and Truss makes the greenhouse stronger to withstand high winds and heavy snow
4.Two ends corved by color steel tile and door
3.Roof Purlin and Truss makes the greenhouse stronger to withstand high winds and heavy snow
4.Two ends corved by color steel tile and door
Blackout system
1.Three layers breathable blackout curtain be sure 100% stop the light get into the greenhouse
2.Gearmotor with control box with timer can achieve full automation,save both time and labour
Greenhouse cover material
1.Plstic film/PO film/Wove film ( thickness is 120micron,150micron,200micron,customized)
2.PC sheet(thickness is 6mm,8mm,10mm,customize)
2.PC sheet(thickness is 6mm,8mm,10mm,customize)
3.Anti-drip,anti-fog,Anti-UV,High transparency
Ventilation system
1.Manual roller or Electric roller machine for both sides ventilation and top ventilation
2.40mesh insect net will be offered for vents
Control system
Control cabinet to control blackout curtains open and closed,it control cooling fans and cooling pad,it control roof ventilation open and closed. If you need other system,we can add more switchs
Other system included
Such as cooling system,light trap,lights,rolling bench,circulation fan,heater,Co2 Generator,Dehumidifier and so on.
