Quick Details
-
Warranty:
-
12months
-
Brand Name:
-
RONDA
-
Model Number:
-
MP
-
Place of Origin:
-
Zhejiang, China
-
Horsepower:
-
0.004~3hp
-
Structure:
-
Magnetic pump
-
Cable Length:
-
/
-
Outlet Size:
-
0.5~1.5inch
-
Power:
-
3~2200w
-
motor:
-
IE2 IE3
-
Customized product:
-
Available
-
Frequency:
-
50hz or 60hz are all available
-
Quick-wear part:
-
Impeller, shaft sleeve, spacer sleeve, etc
-
Sealing type:
-
Seal ring
-
Type of connection:
-
Quick coupling, thread
-
Casing material:
-
PP, SS304
-
Warranty of pump:
-
12 months
-
Warranty of quick-wear part:
-
3 months
-
Shipment:
-
By sea, air, express, etc
Quick Details
-
Application:
-
Drinking water treatment, Family Homes
-
Pressure:
-
Low Pressure
-
Voltage:
-
110v, 220v, 380v, etc, 110V, 220V, 240V, 380V, 400V, 415V, 440V, etc are all available
-
Warranty:
-
12months
-
Brand Name:
-
RONDA
-
Model Number:
-
MP
-
Place of Origin:
-
Zhejiang, China
-
Horsepower:
-
0.004~3hp
-
Structure:
-
Magnetic pump
-
Cable Length:
-
/
-
Outlet Size:
-
0.5~1.5inch
-
Power:
-
3~2200w
-
motor:
-
IE2 IE3
-
Customized product:
-
Available
-
Frequency:
-
50hz or 60hz are all available
-
Quick-wear part:
-
Impeller, shaft sleeve, spacer sleeve, etc
-
Sealing type:
-
Seal ring
-
Type of connection:
-
Quick coupling, thread
-
Casing material:
-
PP, SS304
-
Warranty of pump:
-
12 months
-
Warranty of quick-wear part:
-
3 months
-
Shipment:
-
By sea, air, express, etc

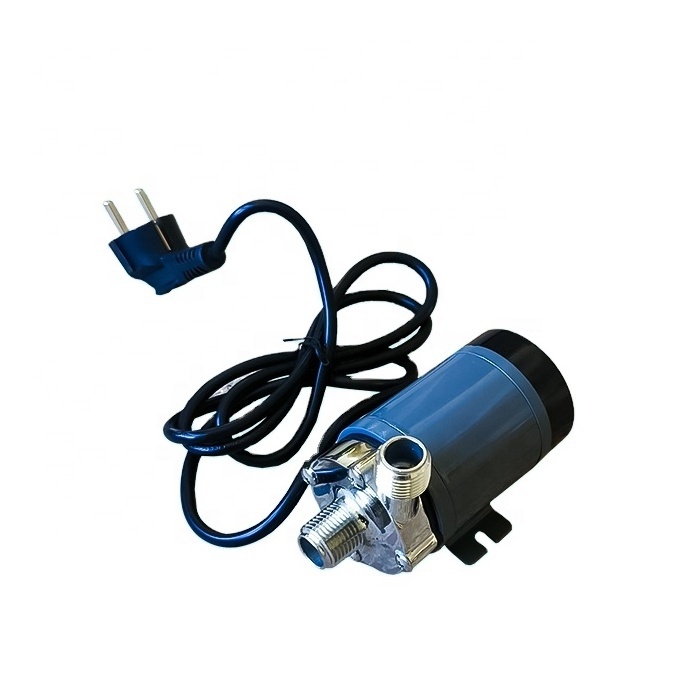

MP Stainless Steel Mini Magnetic Water Pump For Brewing
Perfect appearance:
Introduction:
1. MP stainless steel mini magnetic water pump for brewing is manufactured by RONDA is compact structure, small volume, light weight.
2. Pump is widely used in all industries works as booster pump, chemical, lab pump, circulation pump.
3. The stainless steel magnetic brewing pump is designed with 50 or 60Hz to meet requirements of clients from different countries.
4. The magnetic drive pump is generally designed for no shaft seal, completely avoids defects of pollution after corrosion caused by liquid leakage, which exists in traditional mechanical shaft seal pump, it is the optimum liquid transport pump.
Products details:
| Working Principle: | Centrifugal, Magnetic coupled |
| Main applications: | Chemical, water |
| Driver: | Electric motor |
| Power Specs: | 380/415 V 3phase; 220/240 V 1phase; 50hz/60hz |
| Max.permissible fluid temperature: | 80°C(176°F) |
| Type of connection: | Thread, Tube |
| Installation position: | Horizontal |
| Casing/Inner parts material: | Fiber reinforced, Alumina ceramic/Fiber reinforced |
| Shaft seal type: | Static sealing |
| Maximum drive rating: | 2.2KW(3HP) |
| Maximum caliber: | 56mm(2 1/4inch) |
| Maximum discharge-side pressure: | 0.22MPa(2.2bar) |
| Maximum head: | 22m(72.2ft) |
| Flow rate range: | 2.8-380L/min(0.7-100.3US.GPM) |
Performance data:
| Model | Tube interface | Thread interface | Max. | Standard | Spes | Motor | |||||
| gravity | |||||||||||
| Inlet | Outlet | Inlet and outlet | Tube | Capacity | Head | Capacity | Head | Power | Phase | ||
| (mm) | (mm) | (mm) | (mm) | (L/min) | (m) | (L/min) | (m) | ||||
|
50Hz/ 60Hz |
50Hz/ 60Hz |
50Hz/ 60Hz |
50Hz/6 0Hz |
||||||||
| MP-6R | 14 | 14 | - | - | 8/9 | 1/1.4 | 2.8/5 | 0.8 | <1.2 | 3 | 1 |
| MP-6RZ | 14 | 14 | - | - | 5.5/6 | 2.1/2.7 | 5/8 | 1 | <1.1 | 3 | 1 |
| MP-10R | 14 | 14 | - | - | 11/12 | 1.5/2.1 | 5/8 | 1 | <1.1 | 6 | 1 |
| MP-10RN | 14 | 14 | - | - | 11/12 | 1.5/2.1 | 5/8 | 1 | <1.1 | 6 | 1 |
| MP-15R | 16 | 16 | - | - | 16/19 | 2.7/3.4 | 8/12 | 1.5 | <1.3 | 10 | 1 |
| MP-15RN | 16 | 16 | - | - | 16/19 | 2.7/3.4 | 8/12 | 1.5 | <1.3 | 10 | 1 |
| MP-15RM | - | - | 18 | 13 | 16/19 | 2.4/3.4 | 8/12 | 1.5 | <1.3 | 10 | 1 |
| MP-20R | 18 | 18 | - | - | 27/32 | 3.1/4.3 | 17/22 | 2 | <1.2 | 20 | 1 |
| MP-20RM | - | - | 18 | 16 | 27/32 | 3.1/4.3 | 30/40 | 1 | <1.2 | 20 | 1 |
| MP-20RX | 26 | 26 | - | - | 46/52 | 1.8/2.5 | 30/40 | 1 | <1.3 | 20 | 1 |
| MP-20RXM | - | - | 25 | 20 | 46/52 | 1.8/2.5 | 30/40 | 1 | <1.3 | 20 | 1 |
| MP-20RZ | 18 | 18 | . | . | 10/11 | 4 3/5 | 6.97/10 | 4 | <1.1 | 20 | 1 |
| MP-20RMZ | - | - | 18 | 13 | 10/11 | 4.6/6.9 | 41465 | 4 | <1.1 | 20 | 1 |
| MP-30R | 20 | 20 | - | - | 33/38 | 3.8/5.4 | 16/25 | 2.5 | <1.3 | 45 | 1 |
| MP-30RM | - | - | 18 | 16 | 33/38 | 3.8/5.4 | 16/25 | 2.5 | <1.3 | 45 | 1 |
| MP-30RX | 26 | 26 | - | - | 62/72 | 2.9/4.1 | 32/46 | 2 | <1.1 | 45 | 1 |
| MP-30RXM | - | - | 25 | 20 | 62/72 | 2.9/4.1 | 32/46 | 2 | <1.1 | 45 | 1 |
| MP-30RZ | 18 | 18 | - | - | 15/17 | 8/11 | 10/14 | 6 | <1.1 | 45 | 1 |
| MP-30RZM | - | - | 18 | 13 | 15/17 | 8/11 | 10/14 | 6 | <1.1 | 45 | 1 |
| MP-40R | 20 | 20 | - | - | 45/52 | 4.6/6.5 | 22/34 | 4 | <1.1 | 65 | 1 |
| MP-40RM | - | - | 18 | 16 | 45/52 | 4.6/6.5 | 22/34 | 4 | <1.1 | 65 | 1 |
| MP-40RX | 26 | 26 | - | - | 75/85 | 3.3/4.7 | 47/65 | 2 | <1.1 | 65 | 1 |
| MP-40RXM | - | - | 25 | 20 | 75/85 | 3.3/4.7 | 47/65 | 2 | <1.1 | 65 | 1 |
| MP-55R | 26 | 26 | - | - | 60/70 | 5.6/8.2 | 30/45 | 4 | <1.2 | 90 | 1 or 3 |
| MP-55RM | - | - | 25 | 20 | 60/70 | 5.6/8.2 | 30/45 | 4 | <1.2 | 90 | 1 or 3 |
| MP-55RZ | 26 | 26 | . | 25/28 | 10/14 | 15/22 | 8 | <1.1 | 90 | 1 or 3 | |
| MP-55RZM | . | . | 0.25 | 20 | 25/28 | 10/14 | 15/22 | 8 | <1.1 | 90 | 1 or 3 |
| MP-70R | 26 | 26 | - | - | 86/97 | 6.7/9.7 | 50/72 | 4 | <1.1 | 150/180 | 1 or 3 |
| MP-70RM | - | - | 25 | 20 | 86/97 | 6.7/9.7 | 50/72 | 4 | <1.1 | 150/180 | 1 or 3 |
| MP-100R | 26 | 26 | - | - | 120/130 | 8.6/11.6 | 60/70 | 7/9 | <1.3 | 250/265 | 1 or 3 |
| MP-100RM | - | - | 25 | 20 | 120/130 | 8.6/11.6 | 60/70 | 7/9 | <1.3 | 250/265 | 1 or 3 |
| MP-100RX | - | - | 32 | 32 | 170 | 9 | 100 | 5 | <1.3 | 250 | 1 or 3 |
| MP-120R | - | - | 40 | 36 | 220 | 10.5 | 140 | 6 | <1.3 | 250 | 1 or 3 |
| MP-120RT | - | - | 56 | 48 | 220 | 10.5 | 140 | 6 | <1.3 | 250 | 1 or 3 |
| MPH-400CV5-D | - | - | 36 | 36 | 220 | 12.5 | 150 | 8 | <1.3 | 370 | 3 |
| MPH-401CV5-D | - | - | 36 | 36 | 260 | 18 | 120 | 12 | <1.3 | 750 | 3 |
| MPH-422CV5-D | - | - | 40 | 38 | 320 | 21 | 160 | 18 | <1.3 | 1500 | 1 or 3 |
| MPH-423CV5-D | - | - | 40 | 38 | 380 | 22 | 230 | 18 | <1.3 | 2200 | 1 or 3 |
More pictures:
All kinds of stainless steel magnetic brewing pumps:
