- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
HUILAN
-
Model Number:
-
HL-215
-
Product name:
-
Network Conference System, Video Conference System
-
Size:
-
21.5 inch
-
Shell:
-
aluminum alloy
-
Input & Output::
-
USB/HDMI Input
-
LCD Swivel angle:
-
0~30degree
-
Color::
-
Silver/Black
-
Resolution::
-
1920*1080
-
Screen aspect ratio::
-
16:9
-
Lifting time::
-
28S
Quick Details
-
Type:
-
Audio Conference System, Network Conference System, Video Conference System
-
Function:
-
Voting
-
Place of Origin:
-
China Guangzhou
-
Brand Name:
-
HUILAN
-
Model Number:
-
HL-215
-
Product name:
-
Network Conference System, Video Conference System
-
Size:
-
21.5 inch
-
Shell:
-
aluminum alloy
-
Input & Output::
-
USB/HDMI Input
-
LCD Swivel angle:
-
0~30degree
-
Color::
-
Silver/Black
-
Resolution::
-
1920*1080
-
Screen aspect ratio::
-
16:9
-
Lifting time::
-
28S
Introduction:

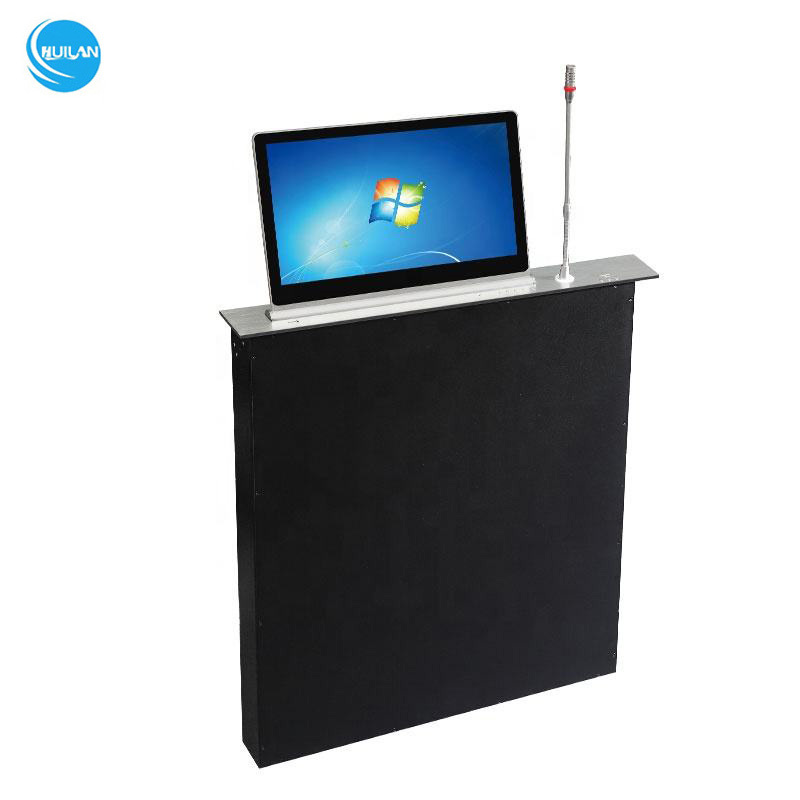

Ultra-thin LCD Monitor Motorized Lift is ultra-thin hiding equipment designed with HD screen for audio video
system in office furniture. The LED HD screen of monitor lifting system would be rising down into the desk
and hidden under the office table when unused; Screen inside the LCD lift would be rising up from table
automatically by touch switch or remote control and present the workable screen on the desktop if used.
It's integrated with HD screen all in one lifting system.
Feature:
1, Supply with whole aluminum alloy brushed case for HD screen monitor, with aluminum wire drawing process on surface.
2, The Monitor Lift adopts synchronous orbit lifting principle.
3, Desktop Vertical Monitor Lift works smoothly and quietly. Low noise which less than 30db.
4, LCD Motorized Lift provides protecting function of LCD monitors by cutting the electricity off automatically.
5, LCD monitor Lift would be adjustable elevation angle of LCD monitor for protecting your eyes from the direct light.
6, Tabletop Monitor Lift is controlled by two big AC motors. One controls opening and closing the panel of LCD monitor Lift; one controls lifting the monitor up and down and adjust the angles of the monitor.
7, Control system: up/down/titl/back button, RF remote control, RS232 input & output, USB input & cable, HDMI input
Functionality
LCD motorized monitor lift with HD screen all ine one lifting system
Monitor inclinates automatically to a pre-adjusted angle
12V step monitor with simultaneous drive for multiple movements
Second motorization for tile mechansim
Supply with 15.6inch, 17.3inch,18.5inch 21.5inch 23.6 inch full HD LED screen
Customized required with touch screen, all in one PC monitor, Microphone
Quality approved by CE & CCC &FCC
Application:
LCD Monitor Lift is widely used on conference system, like video conference system, tv conference system, financial analyzing system, advanced office system, lecture and training room with conference table& computer desk together.
Products Description
|
Product Name
|
Ultra Light Retractable Monitor Lift
|
|
|
Screen Size
|
13.3"15.6" 17.3"18.5"21.5"
|
|
|
Monitor Pitch Angle
|
20 Degree
|
|
|
Adjustable Angle
|
Adjustable Angle
|
|
|
Panel Color
|
Black/Sliver
|
|
|
Touch Screen
|
Support
|
|
|
Lifting time
|
28S
|
|
|
Elevation Angle
|
0-30°
|
|
|
Working Environment
|
-20℃～50℃，relative humidity≤70%
|
|
|
Resolution
|
1920*1080
|
|
|
Video Port
|
1 VGA、1 HDMI
|
|
|
Control Port
|
2 groups of 232/485 input and output ports to control microphone and screen lifting, support hand-by-hand connection, 1 USB port
for switch on and off, 1 USB port for data transmission |
|
|
Microphone interface
|
Aviation 6 pin interface, support hand-by-hand connection
|
|
|
Viewing Angle
|
45/45/20/40(Typ.)
|
|
|
Screen Thickness
|
9.7mm
|
|
|
Power Suppply
|
AC 220V 50-60/HZ
|
|
|
Power Consumption
|
25W
|
|
|
Protection System
|
With Anti-pinch Hand Protect
|
|
Details Images
