Quick Details
-
Brand Name:
-
HYDER
-
Fork Length:
-
1195mm
-
Fork Width:
-
550/680Mm
-
Overall Dimensions:
-
1676x685x1607mm
-
Weight (KG):
-
330 kg
-
Type:
-
Powered Pallet Truck
-
After-sales Service Provided:
-
Overseas service center available
-
Manufacturer:
-
HYDER cargo van forklift
-
Model:
-
HSLF500, HSLF1000
-
Load capacity:
-
500kg ,1000kgs
-
Product Name:
-
Portable 500kgs 1000kgs Self-Lifting Pallet Loader Forklift
-
Max. lifting height:
-
1300mm
-
Power unit:
-
DC Motor
-
Operator type:
-
Fully Electric portable self lifting forklift 500kgs 1000kgs
-
packing:
-
3units/pallet
Quick Details
-
Min. Lifting Height:
-
800mm
-
Warranty:
-
1 Year
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
HYDER
-
Fork Length:
-
1195mm
-
Fork Width:
-
550/680Mm
-
Overall Dimensions:
-
1676x685x1607mm
-
Weight (KG):
-
330 kg
-
Type:
-
Powered Pallet Truck
-
After-sales Service Provided:
-
Overseas service center available
-
Manufacturer:
-
HYDER cargo van forklift
-
Model:
-
HSLF500, HSLF1000
-
Load capacity:
-
500kg ,1000kgs
-
Product Name:
-
Portable 500kgs 1000kgs Self-Lifting Pallet Loader Forklift
-
Max. lifting height:
-
1300mm
-
Power unit:
-
DC Motor
-
Operator type:
-
Fully Electric portable self lifting forklift 500kgs 1000kgs
-
packing:
-
3units/pallet

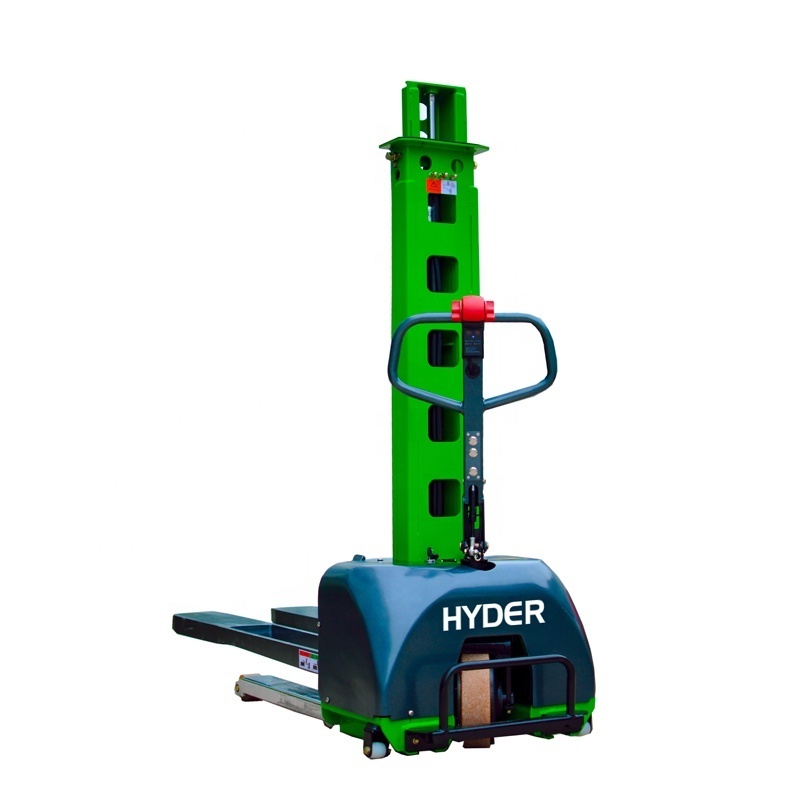

Portable 500kgs 1000kgs Self-Lifting Pallet Loader Forklift for VAN car cargo load and unload door to door delivery
This forklift HSLF500 and HSLF1000 is an ideal replacement for a lift that is permanently installed on a car. It is characterized by a low curb weight and can be used on any car in your fleet.
Self-lift function
It can easily lift by itself to truck or other vehicles then deliver cargo to customers' door by it. This changes traditional logistics means and saves logistics cost.
Light design in weight only 330/382kgs
Any adults can operate it easily and it is deft and smooth during operation
Double-control switch design
This will make operation more efficient and safety
Max capacity 500kg/1000kgs
It can satisfy 80% of logistics demands
Large capacity lithium battery 48V/15Ah
It can make sure the operation time is longer during logistics distribution and quick recharge within 2 hours
Full electric in driving and lifting
More and fast delivery effeciency
|
Standard
|
|
Hyder self lift stacker
|
Hyder self lift stacker
|
|
Model
|
|
HSLF500
|
HSLF1000
|
|
Name
|
|
Fully Electric
|
Fully Electric
|
|
Power unit
|
|
battery
|
battery
|
|
Operation
|
|
walkie
|
walkie
|
|
Load capality
|
Q (kg)
|
500
|
1000
|
|
Load center
|
C (mm)
|
400
|
400
|
|
Fork outside spacing
|
W3 (mm)
|
565/685
|
565/685
|
|
Fork length
|
L2 (mm)
|
1195/1295
|
1195/1295
|
|
Tire
|
|
|
|
|
Tire type
|
front/rear
|
PU/Nylon
|
PU/Nylon
|
|
Driving wheel/Bearing wheel/Middle wheels No
|
pcs
|
1/2/2/2
|
1/4/2/2
|
|
Driving wheel
|
mm
|
Φ250×74
|
Φ250×74
|
|
Bearing wheel
|
mm
|
φ80×60
|
φ80×60
|
|
Middle wheel
|
mm
|
Φ68×30
|
Φ68×30
|
|
Auxiliary wheel
|
mm
|
Φ40×36
|
Φ40×36
|
|
Dimension
|
|
|
|
|
Lift height
|
H (mm)
|
800/1000/1300
|
800/1000/1300
|
|
Height in Lowerd Position
|
H1 (mm)
|
1166/1366/1666
|
1166/1366/1666
|
|
Height in highest Position
|
H2 (mm)
|
2370/2570/2870
|
1844/2244/2844
|
|
Fork height above ground
|
H3 (mm)
|
81
|
81
|
|
wheelbase
|
L0 (mm)
|
974
|
974
|
|
Total Length
|
L1 (mm)
|
1650/1750
|
1650/1750
|
|
Leg length
|
L3 (mm)
|
771
|
771
|
|
Middle wheels position
|
L4 (mm)
|
177
|
177
|
|
Safe area for hitchhiking
|
L5 (mm)
|
≤130
|
≤130
|
|
Body thickness
|
L6 (mm)
|
409
|
409
|
|
Body Width
|
W (mm)
|
658
|
658
|
|
Front wheel tread
|
W1 (mm)
|
398/518
|
398/518
|
|
Fork width
|
B (mm)
|
193/253
|
193/253
|
|
Min. turning radius
|
Wa (mm)
|
1147
|
1173
|
|
Overal width
|
W4
|
685
|
800
|
|
Performance
|
|
|
|
|
Max driving speed (Turtle /full load)
|
km/h
|
0.5/3.0
|
0.5/3.0
|
|
Gradeability(full load/unload)
|
%
|
5/10
|
5/10
|
|
Electric Configuration
|
|
|
|
|
Drive motor/Lift motor
|
kw
|
DC0.6/DC1.6
|
DC0.6/DC1.6
|
|
Battery voltage/capacity
|
V/Ah
|
48/15 Li-ion
|
48/15 Li-ion
|
|
Weight
|
|
|
|
|
Battery weight
|
kg
|
5
|
5
|
|
Service weight (Battery included)
|
kg
|
330/240/355
|
368/374/382
|
1. Q: "Why this forklift can only handle 500kg? I need to handle heavier loads."
what we made as an improvement on the mast.
Secondly, it is a semi-electric-powered stacker, which also needs manual power to pull and push. A heavier load will request a bigger battery which will go against our portable design.
However , Hyder has been devoted to adjust and meet the requirements. Now we have both 500kg and 1000kg ready for your options.
2. Q: " I want to lift higher, can you do that?"
3. Q: How many working hours it can work? I need it work for 5-6hours, is that possible?
The self-propelled model can work for 50times and 60m travel on the ground with lithium battery 48V15ah powered.
We can change to a bigger battery to prolong the working time. Considering the longer working time will request a larger battery,which means heavier the truck itself. That goes against portable design again.
Everyone would find the right places and shining. The more we need, the more complex and more expensive would that machine be!
We have a lot of ideas, but also we need to consider the practical use and technics. What we can do is to find the balance between idea and reality!
