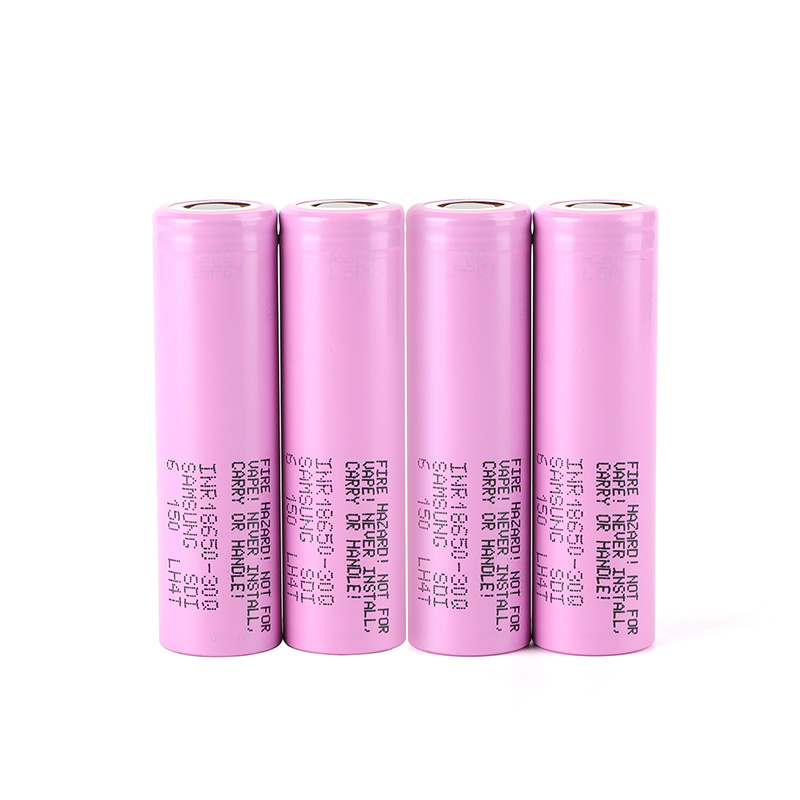

INR18650-30Q 3.7V 15A 3000mAh Rechargeable Li-ion Battery 18650 Lithium Battery INR 18650 3.7V 3000mAh

INR18650-30Q 3.7V 15A 3000mAh Rechargeable Li-ion Battery 18650 Lithium Battery INR 18650 3.7V 3000mAh

FOB Reference Price: Get Latest Price

≥2 Pieces

US $2.89

≥100 Pieces

US $2.8

≥500 Pieces

US $2.7

≥2000 Pieces

US $2.69

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: BELIFINE

Model Number:: 18650

Place of Origin:: South Korea

Weight:: 50g

The charging ratio:: CCCV, 1.50A, 4.20 ± 0.05 V, 150mA cut-off

The discharge rate:: 15A(at 25℃)

Electric Energy:: 12.6 Wh

Model:: INR18650-30Q

Nominal Capacity:: 3000mAh

Nominal Voltage:: 3.6V

Standard charge:: CCCV, 1.50A, 4.20 ± 0.05 V, 150mA cut-off

Rated charge:: CCCV, 4A, 4.20 ± 0.05 V, 100mA cut-off

Max. continuous discharge:: 15A(at 25℃)

Cell dimension:: Height : 64.85 ± 0.15mm Diameter : 18.33 ± 0.07mm

Discharge cut-off voltage:: 2.5V (End of discharge)

Operating temperature (Ambient):: Charge : 0 to 45℃ Discharge: -20 to 75℃

Origin:: Republic of Korea

Quick Details

Storage Type:: Store at 0 ~ 23℃

Anode Material:: NCM

Application:: Toys, Power Tools, Home Appliances, Consumer Electronics, BOATS, Golf Carts, SUBMARINES, Electric Bicycles/Scooters, electric vehicles, Electric Wheelchairs, Electric Power Systems, Solar Energy Storage Systems, Uninterruptible Power Supplies

Brand Name:: BELIFINE

Model Number:: 18650

Place of Origin:: South Korea

Weight:: 50g

The charging ratio:: CCCV, 1.50A, 4.20 ± 0.05 V, 150mA cut-off

The discharge rate:: 15A(at 25℃)

Electric Energy:: 12.6 Wh

Model:: INR18650-30Q

Nominal Capacity:: 3000mAh

Nominal Voltage:: 3.6V

Standard charge:: CCCV, 1.50A, 4.20 ± 0.05 V, 150mA cut-off

Rated charge:: CCCV, 4A, 4.20 ± 0.05 V, 100mA cut-off

Max. continuous discharge:: 15A(at 25℃)

Cell dimension:: Height : 64.85 ± 0.15mm Diameter : 18.33 ± 0.07mm

Discharge cut-off voltage:: 2.5V (End of discharge)

Operating temperature (Ambient):: Charge : 0 to 45℃ Discharge: -20 to 75℃

Origin:: Republic of Korea

In stock now!! Ships fast!

Product Description

INR18650-30Q 3.7V 15A 3000mAh Rechargeable Li-ion Battery 18650 Lithium Battery INR 18650 3.7V 3000mAh

Nominal Voltage: 3.6v

Nominal Capacity: 3000mAh
Max. Discharging current: 15A

Charging Method: CC-CV

Size: Height : 64.85 ± 0.15mm Diameter : 18.33 ± 0.07mm

Weight (g): 48.0g max
Cycle life: >800 times

Notice

For deeper cooperation, we welcome samples and offer free samples (1pcs), if you need samples, please send me inquiry or TM .

Specification

INR18650-30Q Characteristics
1. Nominal discharge capacity The standard discharge capacity is the initial discharge capacity of the cell, which is measured with discharge current of 600mA(0.2C) with 2.5V cut-off at 25℃ within 1hour after the standard charge. Nominal discharge capacity ≥ 3,000mAh Which complying to the minimum capacity of IEC61960 standard. 2. Standard rated discharge capacity The standard rated discharge is the discharge capacity of the cell, which is measured with discharge current of 10A with 2.5V cut-off at 25℃ within 1hour after the standard charge. Standard rated discharge capacity ≥ 2,900mAh 3.Initial internal impedance Initial internal impedance measured at AC 1kHz after standard charge Initial internal impedance ≤ 26mΩ 4.Temperature dependence of discharge capacity Capacity comparison at each temperature, measured with discharge constant current 10A and 2.5V cut-off after the standard charge is as follows.
Discharge temperature
-20℃	-10℃	0℃	25℃	60℃
60%	75%	80%	100%	95%
Note: If charge temperature and discharge temperature is not the same, the interval for temperature change is 3 hours. Percentage index of the discharge at 25℃ at 10A (=2,900mAh) is 100%. 5.Discharge rate capabilities Discharge capacity is measured with constant current 10A and 2.5V cut-off after the cell is charged with 4.2V as follows.
	Discharge condition
Current	0.6A	5A	10A	15A
Relative Capacity	100%	97%	100%	97%
Percentage index of the discharge at 25℃ at 10A (=2,900mAh) is 100%.
