Quick Details
-
Power (kW):
-
0.75
-
Range of Spindle Speed(r.p.m):
-
5 - 450 r.p.m
-
Place of Origin:
-
China (Mainland)
-
Brand Name:
-
MITR
-
Voltage:
-
220V
-
Dimension(L*W*H):
-
60*40*50MM
-
Weight (KG):
-
70 KG
-
Product name:
-

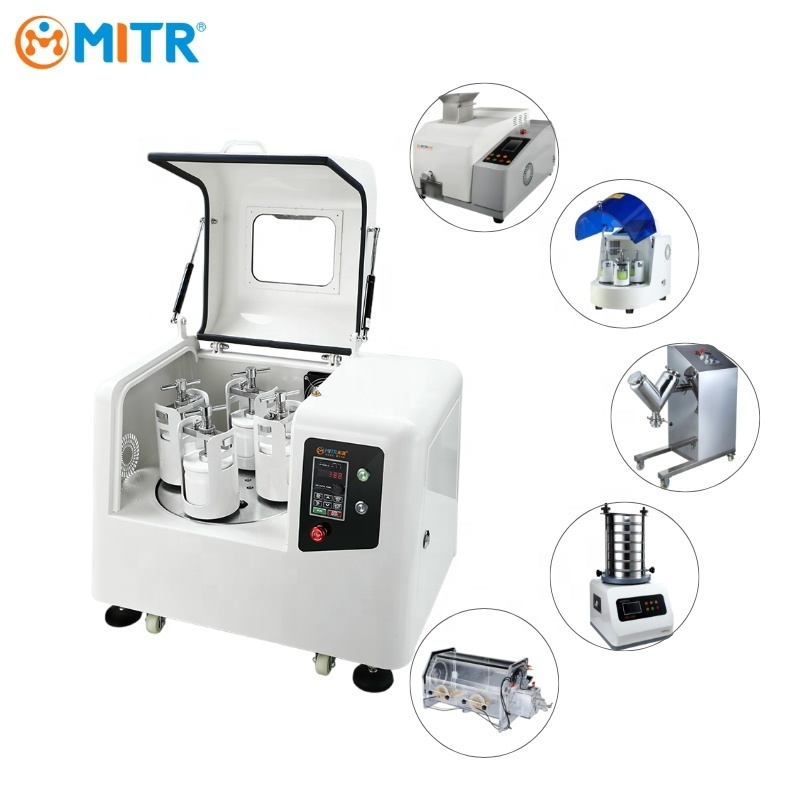

High Energy Lab Planetary Industrial Ball Mill
-
Feeding granularity:
-
Soil material≤10mm,others ≤3mm
-
Discharging granularity:
-
minimum down to 0.1μm
-
Max revolution:
-
0-400rmin
-
Rotation:
-
0-800rmin
-
Working mode:
-
Two or four jars working at the same time
-
Transmission mode:
-
Gear drive,motor direct connection
-
Grinding jar volume(ml):
-
50-250ml
-
Max continue time:
-
72H(Timing 0-9999h)
Quick Details
-
Output (kg/h):
-
1 - 20 kg/h
-
Feeding Size (mm):
-
3 - 5 mm
-
Output Size (mesh):
-
1000 - 10000 mesh
-
Power (kW):
-
0.75
-
Range of Spindle Speed(r.p.m):
-
5 - 450 r.p.m
-
Place of Origin:
-
China (Mainland)
-
Brand Name:
-
MITR
-
Voltage:
-
220V
-
Dimension(L*W*H):
-
60*40*50MM
-
Weight (KG):
-
70 KG
-
Product name:
-
High Energy Lab Planetary Industrial Ball Mill
-
Feeding granularity:
-
Soil material≤10mm,others ≤3mm
-
Discharging granularity:
-
minimum down to 0.1μm
-
Max revolution:
-
0-400rmin
-
Rotation:
-
0-800rmin
-
Working mode:
-
Two or four jars working at the same time
-
Transmission mode:
-
Gear drive,motor direct connection
-
Grinding jar volume(ml):
-
50-250ml
-
Max continue time:
-
72H(Timing 0-9999h)
Product Paramenters
High Energy Lab Scale Herb Soil Grinding Fine Dry Micron Powder Grinder Milling Machine Planetary Industrial Ball Mill
|
Application
|
Pulverizing, Mixing, Homogenizing, Colloidal Grinding, Mechanical Alloying, Mechanical Chemistry
|
|
|
|
Field of Application
|
New Energy, Geology/Metallurgy, Glass/Ceramics, Engineering/Electronics, Building Materials, Environment/Recycling, Agriculture,
Chemistry, Biology, etc |
|
|
|
Sample Characteristics
|
Soft, Hard, Brittle, Fibrous - dry or wet
|
|
|
|
Pulverization Principle
|
Impact, Friction
|
|
|
|
Maximum SampleSsize
|
< 5 mm, soil < 10 mm
|
|
|
|
Final particle size *
|
For colloidal milling, output < 0.1 µm
|
|
|
|
Number of Grinding Platforms
|
4 units
|
|
|
|
Grinding Method
|
Dry, wet, vacuum, atmosphere-protected grinding possible
|
|
|
|
Material of Grinding Jar
|
Stainless steel, tungsten carbide, zirconia, alumina, silicon carbide, silicon nitride, polyurethane, nylon, PTFE, onyx
|
|
|
|
Ratio Setting
|
1::2
|
|
|
|
Operating Modes
|
3 types: unidirectional, alternating forward and reverse, multi-stage
|
|
|
|
Programs Can Be Stored
|
15pcs
|
|
|
|
Time Setting
|
Intelligent screen digital setting, running/stopping time: 0-9999 minutes
|
|
|
|
Power Failure Protection
|
Power failure protection memory self-start function
|
|
|
|
Model
|
YXQM-0.4L
|
|
|
|
Grinding Jar Volume
|
50-100ml
|
|
|
|
Vacuum Jar Volume
|
50ml
|
|
|
|
Revolution Speed
|
5-450r/min
|
|
|
|
Rotation Speed
|
10-900r/min
|
|
|
|
Power(Watts)
|
0.55KW
|
|
|
|
Voltage & Frequency
|
Single Phase，220V/50Hz
|
|
|
|
Dimensions (WxDxH)
|
600x 400 x 5000mm
|
|
|
|
Weight
|
68kg
|
|
|
