Quick Details
-
Brand Name:
-
Bersn
-
Model Number:
-
BS-4CH42W-1050-WD
-
Output Frequency:
-
50...60Hz
-
Dimming range:
-
10...100% Dimming Via WiZ App
-
Standby Power:
-
0.5W
-
Control Mode:
-
Wireless protocol = Wi-Fi, BLE
-
Lifetime:
-
50,000 hrs
-
Humidity:
-
10~90%
-
Tcase Maximum:
-
80°C
-
Ambient Temperature:
-
-20...+50°C
-
Mains Surge Capability:
-
L-N 1kV; L/N-GND 2kV
-
Output Current Ripple:
-
LF 5%
-
Output Current Tolerance:
-
±5%
Quick Details
-
Warranty(Year):
-
5-Year
-
Product Weight（kg）:
-
0.6
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Bersn
-
Model Number:
-
BS-4CH42W-1050-WD
-
Output Frequency:
-
50...60Hz
-
Dimming range:
-
10...100% Dimming Via WiZ App
-
Standby Power:
-
0.5W
-
Control Mode:
-
Wireless protocol = Wi-Fi, BLE
-
Lifetime:
-
50,000 hrs
-
Humidity:
-
10~90%
-
Tcase Maximum:
-
80°C
-
Ambient Temperature:
-
-20...+50°C
-
Mains Surge Capability:
-
L-N 1kV; L/N-GND 2kV
-
Output Current Ripple:
-
LF 5%
-
Output Current Tolerance:
-
±5%

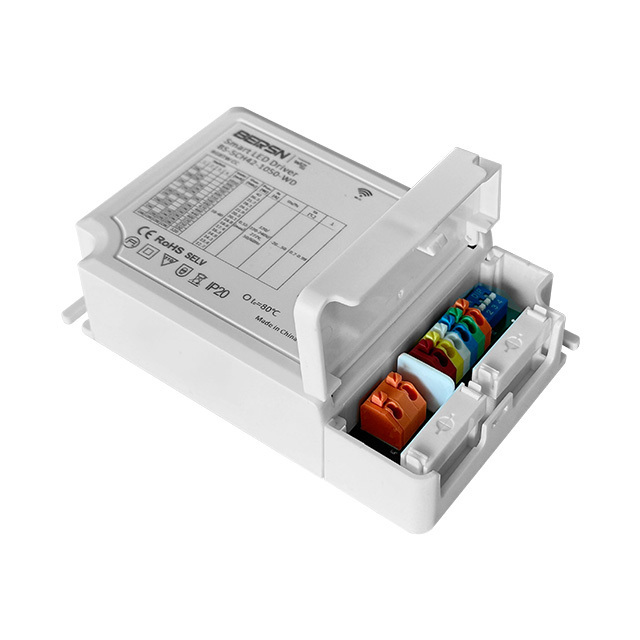

Smart LED Driver
42W 320-1050mA DIP 40V WiZ RGBTW 120-277V CC
BERSN RGBTW smart LED driver connected by WiZ PRO can work with Bridgelux RGBW LED to enable color and tunable white control features. It enables simple, cost effective wireless lighting system for energy saving and comfort. Advanced design of the smart LED driver helps to build a reliable and standardized connected lighting system with diferent functionalities from simple wireless dimming to cloud based operations
Features
* Easy wireless dimming and scheduling for energy saving and convenience
* No gateway needed
* Energy metering feature with 10% accuracy
* Wi-Fi + Bluetooth dual protocol module which enable local Bluetooth messages for installation and connectivity to WiZ cloud cover Wi-Fi network
* Future-proof flexibility, support OTA (Over-The-Air) firmware update
* Protective features (short-circuit, open-circuit, over-load, no-load)
* Reliable, flicker-free
* 5 years warranty.
* No gateway needed
* Energy metering feature with 10% accuracy
* Wi-Fi + Bluetooth dual protocol module which enable local Bluetooth messages for installation and connectivity to WiZ cloud cover Wi-Fi network
* Future-proof flexibility, support OTA (Over-The-Air) firmware update
* Protective features (short-circuit, open-circuit, over-load, no-load)
* Reliable, flicker-free
* 5 years warranty.
|
Input electrical parameters
|
|
|
|
|||
|
Specification item
|
SmartDriver 42W 320-1050mA DIP 40V WiZ RGBTW 120-277V CC
|
unit
|
condition
|
|||
|
Model No.
|
BS-4CH42W-1050-WD
|
Vac
|
|
|||
|
Rated Power
|
42W
|
Vac
|
safe working range
|
|||
|
Output Channels
|
4CH (RGBW)
|
|
|
|||
|
Output Current (Io1;Io2)
|
320-1050mA AOC Via DIP Switch
|
Hz
|
|
|||
|
Output Voltage (Vo1;Vo2)
|
18-40Vdc
|
Hz
|
maximum allowable range
|
|||
|
Nominal Input Voltage
|
100-240VAC
|
|
Full load 220V-240V
|
|||
|
Input Voltage Range
|
90-277VAC
|
mA
|
230V at full load
|
|||
|
Nominal Input Current
|
0.18-0.40A
|
%
|
230V at full load
|
|||
|
Max Input Current
|
0.55A
|
%
|
230V at full load
|
|||
|
Nominal Input Frequency
|
50-60Hz
|
|
|
|||
|
Power Factor
|
0.9 @ full output power
|
|
|
|||
|
Total Harmonic Distortion
|
≤20% @ rated output powe
|
Vdc
|
Open circuit peak voltage
|
|||
|
Output Voltage Max
|
50Vdc
|
mA
|
fully loaded
|
|||
|
Output current tolerance
|
±5
|
%
|
Maximum output current, Ta = 25 °C (cold start)
|
|||
|
Output current ripple LF
|
5
|
%
|
Ripple = peak / average, <1kHz
|
|||
|
Mains Surge Capability
|
L-N 1kV; L/N-GND 2kV
|
W
|
fully loaded
|
|||
|
Ambient Temperature
|
-20…+50°C
|
KHZ
|
|
|||
|
Tcase Maximum
|
80°C
|
|
Basic ; 2U+1000V
|
|||
|
Humidity
|
10~90%
|
|
|
|||
|
Lifetime
|
50,000 hrs
|
°C
|
|
|||
|
Control Mode
|
Wireless protocol = Wi-Fi, BLE
|
Hour
|
At ambient temperature 40°C ; survival rate = 90 %
|
|||
|
Standby Power
|
0.5W
|
|
|
|||
|
Dimming range
|
10...100% Dimming Via WIZ App
|
SCP
|
Overload protection
|
|||
|
Isolation controls input to output
|
SELV (acc. IEC61347-1)
|
|
|
|||
|
Approval Marks
|
BIS / CE-RED / CCC; ENEC (PENDING)
|
|
|
|||
Dip-switch Operation Instructions

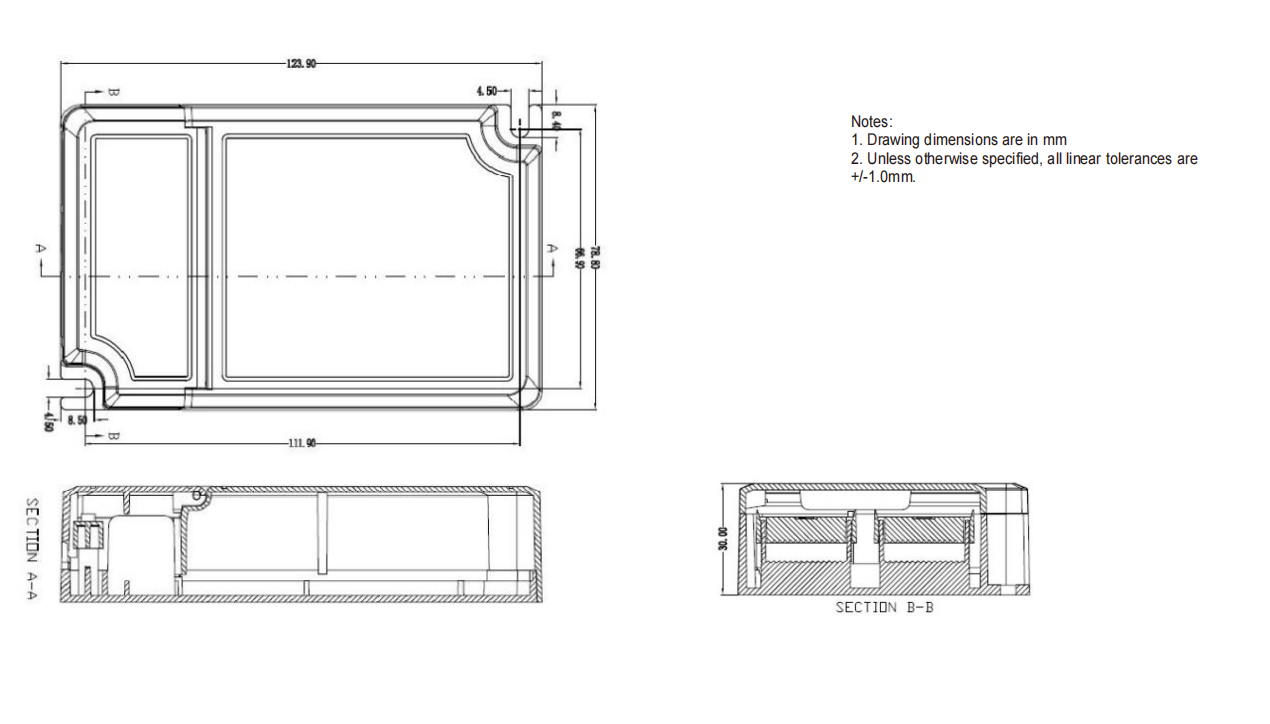

Dimensions and weight
|
Dimensions
|
123.9 mm (L) x 78.8 mm (W) x 30.0 mm (H)
|
|
Enclosure Materials
|
PC Plastic
|
|
Weight
|
0.177kg
|
