1. Widely Used In Science and Industry
2. Temperature Measurement for kilns
3.Gas Turbine Exhaust Application
4. Used For Diesel Engines and Other Industrial Processes
- Product Details
- {{item.text}}
Quick Details
-
Model Number:
-
YS--TH008, K/J/N/T PT100, PT1000, cu50, PT500
-
Accurancy:
-
class I II Class A and Class B
-
sheath material:
-
SS304, SS316, SS310, GH3030or inconel600
-
Diameter of probe:
-
customized
-
Length of probe:
-
customized
-
Temperature range:
-
0-1300C
-
Certification:
-
CE,ISO9001
Quick Details
-
Warranty:
-
1 year
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
VINSON
-
Model Number:
-
YS--TH008, K/J/N/T PT100, PT1000, cu50, PT500
-
Accurancy:
-
class I II Class A and Class B
-
sheath material:
-
SS304, SS316, SS310, GH3030or inconel600
-
Diameter of probe:
-
customized
-
Length of probe:
-
customized
-
Temperature range:
-
0-1300C
-
Certification:
-
CE,ISO9001
Product Description

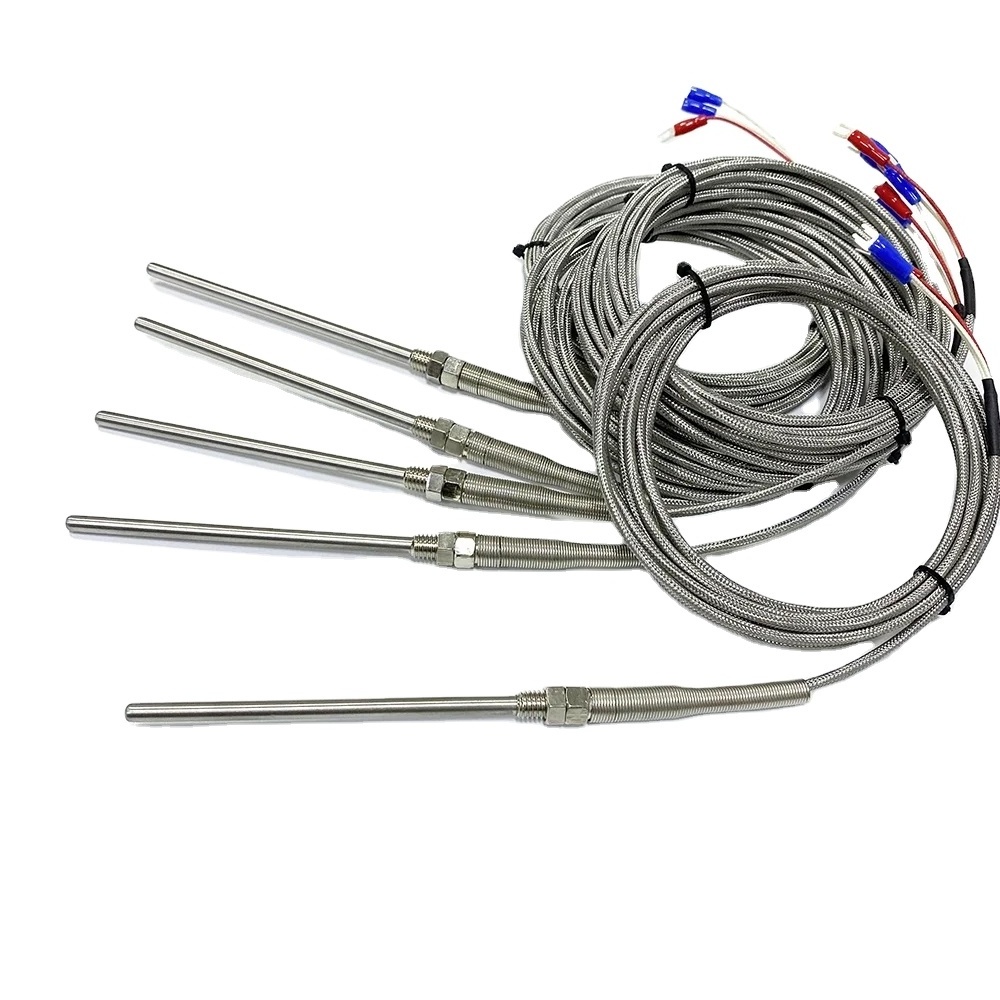

K J PT100 Type 50mm 150mm 100mm 200mm Probe 1m 2m 3m 5m lead wire M8 Screw Thread Cable Thermocouple Oven Temperature Sensor
A thermocouple is a temperature-measuring device consisting of two dissimilar conductors that contact each other at one or more spots. It produces a voltage when the temperature of one of the spots differs from the reference temperature at other parts of the circuit. Thermocouples are a widely used type of temperature sensorfor measurement and control,and can also convert a temperature gradient into electricity. Commercial thermocouples are inexpensive,interchangeable, are supplied with standard connectors, and can measure a wide range of temperatures. In contrast to most other methods of temperature measurement, thermocouples are self powered and require no external form of excitation
Specification Temperature sensor
|
Classify
|
Armored thermocouple
|
Assembly Thermocouple
|
|
|
Model
|
YS-WRK
|
YS-WR
|
|
|
Thermocouple type
|
K,N,E,J,T,S,B,R
|
K,N,E,J,T,S,B,R
|
|
|
Thermocouple diameter (mm)
|
φ3,φ4 ,φ4.5 ,φ5,φ6 ,φ8
|
φ12,φ16,φ20,φ25,etc.
|
|
|
Sheath material
|
304,316,310s, Incoloy600 etc.
|
304,316,310s, Incoloy600 etc.
|
|
|
Probe structure
|
Grounded,Ungrouned,Exposed(YS-WR)
|
|
|
|
Core number
|
1,2,4
|
|
|
|
Terminal box(optional)
|
Cast aluminum,Stainless steel
|
|
|
|
Accuracy
|
±1.5℃/±0.5℃ or 0.4%|t|℃
|
|
|
|
Electrical connection
|
Thread
|
|
|
|
Explosion proof level
|
√
|
|
|
|
Installation
|
Thread/flange
|
|
|
|
Output Signal
|
mV,4-20mA
|
|
|
Model and tolerance
|
Conductor
|
Model
|
Type
|
Use temperature°C
(short time) |
Use temperature°C
(long time) |
|
Ni-Cr / Ni-Si
|
WRKK
|
k
|
0-1200°C
|
0-900°C
|
|
Ni-Cr-Si / Ni-Cr-Mg
|
WRKN
|
N
|
0-1000°C
|
0-1000°C
|
|
Ni-Cr / Ni-Cu
|
WRKE
|
E
|
0-700°C
|
0-600°C
|
|
Fe / Cu-Ni
|
WRKJ
|
J
|
0-600°C
|
0-500°C
|
|
Cu / Cu-Ni
|
WRKT
|
T
|
0-400°C
|
0-350°C
|
|
Pt-Rh10 / Pt
|
Pt-Rh10 / Pt
|
S
|
0-1600°C
|
0-1300°C
|
|
Pt-Rh13 / Pt
|
WRKR
|
R
|
0-1600°C
|
0-1300°C
|
|
Pt-Rh30 / Pt6
|
WRKB
|
B
|
0-1800°C
|
0-1600°C
|
|
Classification
|
Type
|
Standard Model
|
Features
|
Temperature
|
Material
|
Use Requirement
|
|
Resistance
|
C
|
WZP
|
Special
|
0~2300℃
|
W/Re
|
Vacuum field
|
|
|
PT10
|
WZP
|
Normal
|
-200~650℃
|
Pt
|
Stable
|
|
|
PT100
|
WZP
|
Normal
|
-200~650℃
|
Pt
|
With Different Range
|
|
|
PT1000
|
WZP
|
Normal
|
-200~650℃
|
Pt
|
|
|
|
Cu50
|
WZC
|
Normal
|
-50~100℃
|
Cu
|
|
|
|
Cu100
|
WZC
|
Normal
|
-50~100℃
|
Cu
|
|
|
|
PT500
|
WZP
|
Special
|
-200~650℃
|
Pt
|
|
|
|
PT200
|
WZP
|
|
-200~650℃
|
Pt
|
|
|
Thermistor
|
NTC
|
|
Low Accurcy
|
|
|
|
Application
Cusomized of K N J E T type temperature sensor thermocouple
Type: K/J/PT100/PT1000/Cu50...
Diameter and length of probe
Material of probe
Size of thread
Material and length of lead wire
