Quick Details
-
Model Number:
-
TEA930
-
Max. Current:
-
1.5 A
-
Max. Working Pressure:
-
10Kpa
-
Product name:
-
TEA930 differential pressure switch
-
Product keywords:
-
differential pressure switch
-
Media:
-
Air, non-combustible and non-aggressive gases.
-
Mounting:
-
Diaphragm in any vertical plane
-
Degree of Protection:
-
IP54(With Cover), IP00(without Cover)
-
Operating Temperature:
-
-40℃ to + 85℃
-
Contact Arrangement:
-
SPDT
-
Terminal:
-
6.3 mm*0.8blade or screw terminal
-
Connection:
-
dia .6.0 mm for tube connection
Quick Details
-
Max. Voltage:
-
250V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
TIANEN
-
Model Number:
-
TEA930
-
Max. Current:
-
1.5 A
-
Max. Working Pressure:
-
10Kpa
-
Product name:
-
TEA930 differential pressure switch
-
Product keywords:
-
differential pressure switch
-
Media:
-
Air, non-combustible and non-aggressive gases.
-
Mounting:
-
Diaphragm in any vertical plane
-
Degree of Protection:
-
IP54(With Cover), IP00(without Cover)
-
Operating Temperature:
-
-40℃ to + 85℃
-
Contact Arrangement:
-
SPDT
-
Terminal:
-
6.3 mm*0.8blade or screw terminal
-
Connection:
-
dia .6.0 mm for tube connection
TEA930 differential pressure switch for HVAC
INTRODUCTION About TEA930 Differential pressure switch
Adjustable differential pressure switch for monitoring overpressure, vacuum and differential pressure of air or other non-combustible, non-aggressive gases. Possible fields of application include: Monitoring air filters and ventilators, monitoring industrial cooling-air circuits, overheating protection for fan heaters, monitoring flows in ventilation ducts, controlling air fire-protection flaps and frost protection for heat exchangers.
SPECIFICATION
|
Media |
Air, non-combustible and non-aggressive gases. |
|
Maximum operating pressure |
10 kpa for all pressure ranges |
|
Mounting |
Diaphragm in any vertical plane |
|
Type and range |
930.80 20~200Pa;930.81 30~300Pa;930.82 50~500Pa;930.83 200~1000Pa;930.85 500~2500Pa;930.86 1000~4000Pa |
|
Operating Temperature |
-40 ℃ to + 85 ℃ |
|
Contact Arrangement |
SPDT |
|
Maximum Voltage |
250V |
|
Maximum Current |
1.5A |
|
Terminal |
6.3mm×0.8blade or screw terminal |
|
Connection |
Φ6.0 mm for tube connection |
|
Housing materials |
Switch body made of PA 6.6. Cover made of PS |
|
Mechanical working life |
Over 106 switching operations |
|
Degree of Protection |
IP 54 with cover; I P 00 without cover |
|
Approvals |
CE |

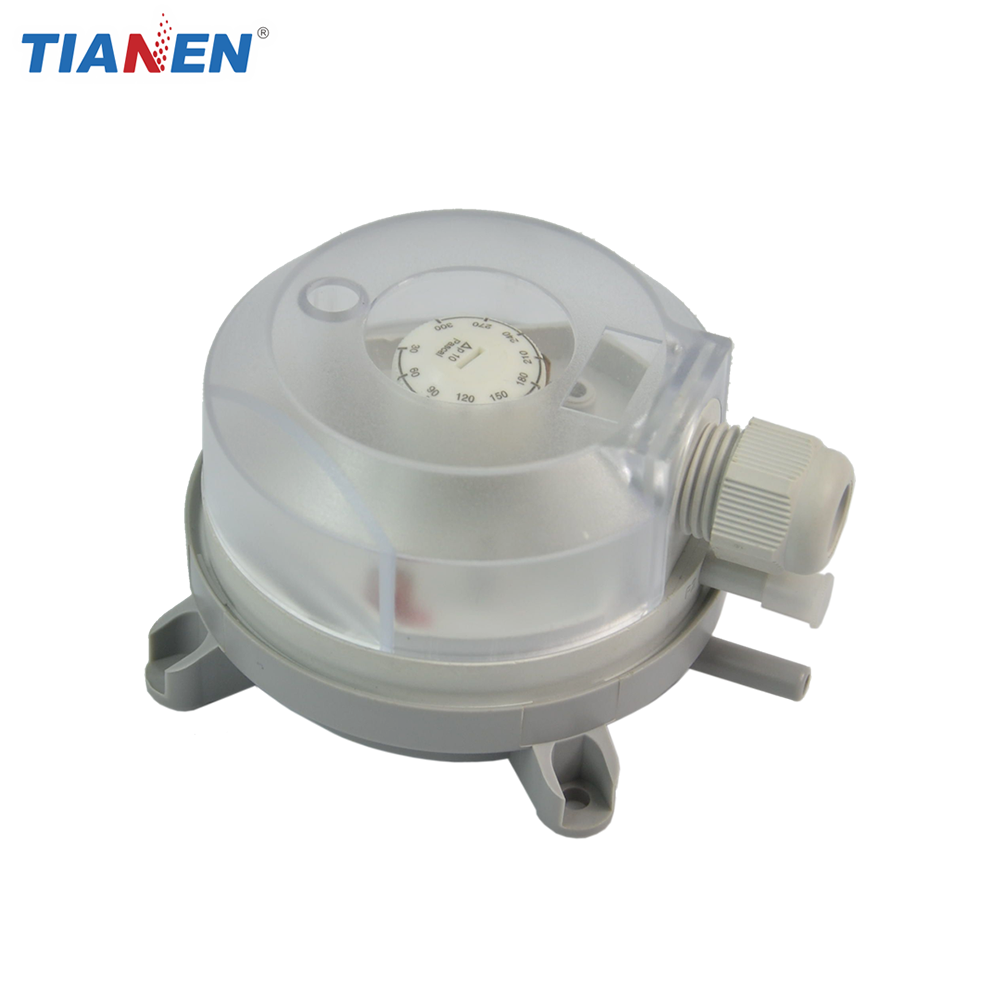

PRODUCT SHOW
ACCESSORIES Of TE2000 Differential pressure gauges
DIMENSIONAL DRAWING
PRODUCTION PROCESS we are professional and concentrative
PACKAGE Packing is well suited for long distance shipments
INNER PACKING SIZE: 45.5*34*38 (CM)
GROSS WEIGHT: 0.215 KG/PCS
PACKAGE: 48PCS/CTN
SHIPPMENT
You can transport goods by sea, by air, by express or another shiping ways.
We will do our best to help you find an optimal way.
