- Product Details
- {{item.text}}
Quick Details
-
Hydraulic Cylinder Brand:
-
top brand
-
Hydraulic Pump Brand:
-
top brand
-
Hydraulic Valve Brand:
-
top brand
-
Engine Brand:
-
top brand
-
Power:
-
283HP
-
Product name:
-
Crawler Bulldozer
-
Ground Pressure:
-
62Kpa
-
Minimum Ground Clearance:
-
400 mm
-
Climbing Ability:
-
30°
-
Rated Speed:
-
2,200 r/min
-
Blade Width:
-
3,605/3,700 mm
-
Blade Height:
-
1,520/1,510 mm
-
Blade Lifting Height:
-
1,140 mm
-
Maximum Cutting Depth of Blade:
-
570 mm
-
Maximum Tilt Angle of Blade:
-
520/540 mm
Quick Details
-
Year:
-
2018-2022
-
Place of Origin:
-
Henan, China
-
Machine Weight:
-
15200 KG
-
Hydraulic Cylinder Brand:
-
top brand
-
Hydraulic Pump Brand:
-
top brand
-
Hydraulic Valve Brand:
-
top brand
-
Engine Brand:
-
top brand
-
Power:
-
283HP
-
Product name:
-
Crawler Bulldozer
-
Ground Pressure:
-
62Kpa
-
Minimum Ground Clearance:
-
400 mm
-
Climbing Ability:
-
30°
-
Rated Speed:
-
2,200 r/min
-
Blade Width:
-
3,605/3,700 mm
-
Blade Height:
-
1,520/1,510 mm
-
Blade Lifting Height:
-
1,140 mm
-
Maximum Cutting Depth of Blade:
-
570 mm
-
Maximum Tilt Angle of Blade:
-
520/540 mm
Products Description

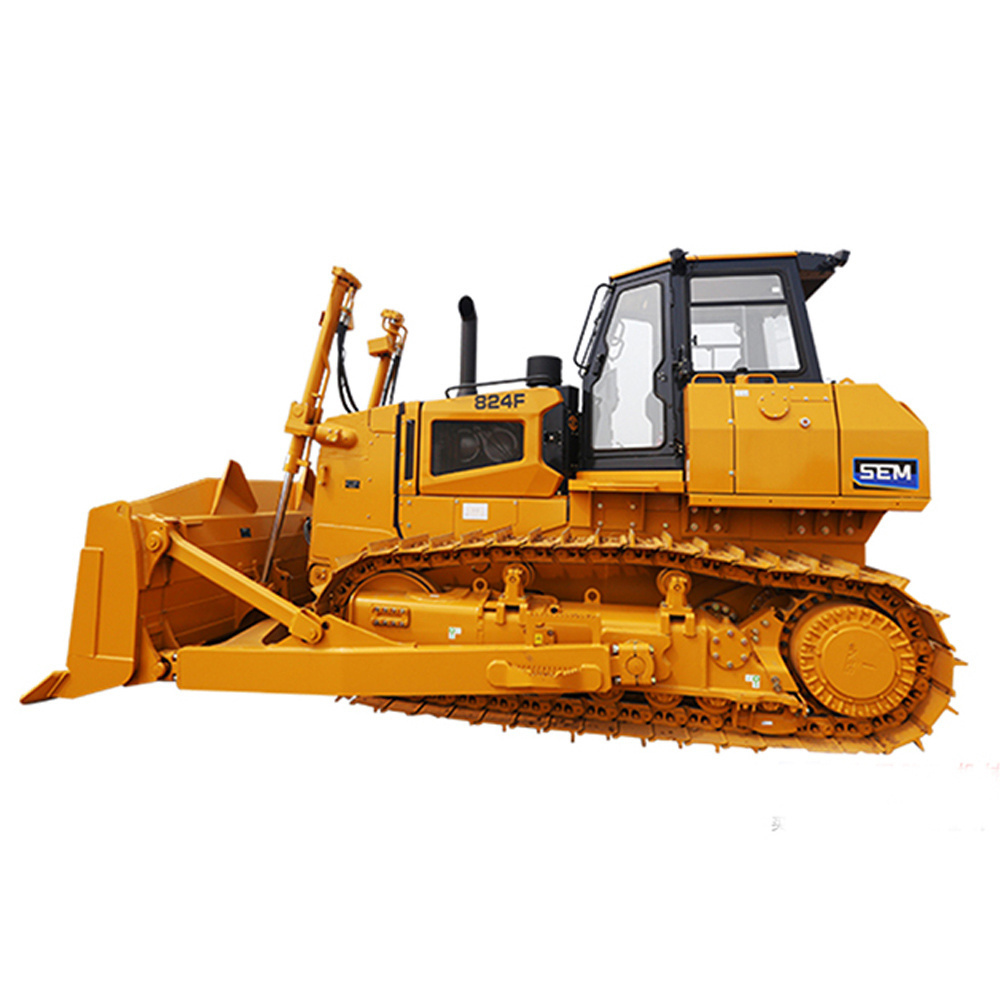

China Top Brand Crawler Hydraulic Bulldozer 824F
1.More Efficient
Equipped with an engine that provides a 12% increase in power for enhanced performance. Improved operating efficiency with an 22% power increase in the economy mode.
Equipped with an engine that provides a 12% increase in power for enhanced performance. Improved operating efficiency with an 22% power increase in the economy mode.
Load sensing system combined with constant power control technology automatically. adjusts to changing loads, ensuring high operating efficiency while saving fuel consumption.
Cate modular cooling system designed with a high safety factor, capable of performing under extreme environmental temperatures up to 45°C.
Optimized blade design and adjustment of the overall center of gravity for enhanced stability and blade maneuverability.
Wide range of product and blade configurations available to meet various job requirements.
2. More Reliable
High-quality hydraulic components from renowned brands ensure reliability and durability of the static hydraulic transmission system.
2. More Reliable
High-quality hydraulic components from renowned brands ensure reliability and durability of the static hydraulic transmission system.
Strengthened mainframe and integrated undercarriage structure capable of withstanding harsh working conditions.
Blade designed with a box-type structure and curved plates made of high-strength, wear-resistant materials conforming to Cate 1E standards, suitable for severe working environments with significant abrasion.
Equipped with a wet brake system for better braking performance and longer service life
3.More Fuel Efficient
Electronic forced pressure relief system prevents overheating and reduces fuel consumption.
3.More Fuel Efficient
Electronic forced pressure relief system prevents overheating and reduces fuel consumption.
Optimized programming enhances engine efficiency by over 50% at low engine speeds.
Engine automatic idle reduction feature reduces fuel consumption by 20%.
4. More Comfortable
Spacious cabin with six-way adjustable suspension seat, ensuring comfortable and safe operation with clear visibility of the blade, cutting edge, and rear working device.
4. More Comfortable
Spacious cabin with six-way adjustable suspension seat, ensuring comfortable and safe operation with clear visibility of the blade, cutting edge, and rear working device.
Multi-functional electronic travel joystick and hydraulic pilot joystick for precise and effortless control.
Standard features include air conditioning, Bluetooth radio for enhanced comfort during operation.
Equipped with an 8-inch interactive color display panel for real-time monitoring of vehicle status.
LED headlights are standard, providing better visibility for nighttime operation
Product Paramenters
|
Product Model
|
Standard Type
|
LGP Type
|
Coal Pushing Type
|
Desert Type
|
WH Type
|
|||||
|
Operating Weight
|
23,730 kg
|
27,580 kg
|
24,280 kg
|
26,840 kg
|
28,000 kg
|
|||||
|
Ground Pressure
|
62 kPa
|
38 kPa
|
54 kPa
|
37 kPa
|
39 kPa
|
|||||
|
Minimum Ground Clearance
|
400 mm
|
400 mm
|
400 mm
|
400 mm
|
400 mm
|
|||||
|
Climbing Ability
|
30°
|
30°
|
30°
|
30°
|
30°
|
|||||
|
Engine
|
|
|
|
|
|
|||||
|
Model
|
WP10HG270E471
|
|
|
|
|
|||||
|
Engine Power (GB/T 17692)
|
211 kW/283 hp
|
|
|
|
|
|||||
|
Rated Speed
|
2,200 r/min
|
|
|
|
|
|||||
|
Working Device
|
|
|
|
|
|
|||||
|
Blade Type
|
SU Blade/S Blade
|
LGP S Blade
|
U Blade
Coal Pushing Blade |
LGP S Blade
|
WH Blade
|
|||||
|
Blade Capacity (ISO 9246)
|
6.4/5.8 m3
|
5.5 m3
|
7.5/9.2 m3
|
5.5 m3
|
12.7 m3
|
|||||
|
Blade Width
|
3,605/3,700 mm
|
4,400 mm
|
3,820 mm
|
4,400 mm
|
4,400 mm
|
|||||
|
Blade Height
|
1,520/1,510 mm
|
1,350 mm
|
1,420/1,620 mm
|
1,350 mm
|
1,945 mm
|
|||||
|
Blade Lifting Height
|
1.140 mm
|
1,165 mm
|
1,140 mm
|
1,165 mm
|
1,165 mm
|
|||||
|
Maximum Cutting Depth of Blade
|
570 mm
|
665 mm
|
570 mm
|
665 mm
|
665 mm
|
|||||
|
Maximum Tilt Angle of Blade
|
520/540 mm
|
640 mm
|
550 mm
|
640 mm
|
640 mm
|
|||||
|
Transmission System
|
|
|
|
|
|
|||||
|
Type
|
Hydrostatic Drive
|
|
|
|
|
|||||
|
Travel Speed
|
Stepless Speed Change 0-10 km/h
|
|
|
|
|
|||||
|
Steering and Braking
|
Static Hydraulic Steering, Wet Multi-Disc Brake
|
|
|
|
|
|||||
|
Minimum Turning Radius
|
4,215 mm
|
4,300 mm
|
4,500 mm
|
4.300mm
|
4.300 mm
|
|||||
|
Chassis System
|
|
|
|
|
|
|||||
|
Track Width
|
560 mm
|
915 mm
|
660 mm
|
915 mm
|
915 mm
|
|||||
|
Number of Track Plates
|
40
|
45
|
40
|
45
|
45
|
|||||
Details Images
Our Survice
We genuinely look forward to discussing business with you, whether it's through email, phone calls, or face-to-face meetings here in Zhengzhou. We'd be delighted to connect with you and provide top-notch service. We assure you of the most competitive prices and excellent service.
1.We can pick you up at the airport when you come.
2. If you have time, we'd love to give you a tour of Zhengzhou.
3. We offer free translation assistance and guidance whenever you need it.
2. If you have time, we'd love to give you a tour of Zhengzhou.
3. We offer free translation assistance and guidance whenever you need it.
Packaging and Shipping
1.Container:
The cheapest and fast one ;put the machine into container need disassemble .
2.Flat rack: Often used to ship two wheel loader, max load-bearing is 35 tons.
3.Bulk cargo ship: which is better for bigger construction equipment, no need disassemble.
4.RO RO ship: The machine is driven directly into the ship and does not need to be disassembled.
You can depend on your own requires to choose one favorite way.
2.Flat rack: Often used to ship two wheel loader, max load-bearing is 35 tons.
3.Bulk cargo ship: which is better for bigger construction equipment, no need disassemble.
4.RO RO ship: The machine is driven directly into the ship and does not need to be disassembled.
You can depend on your own requires to choose one favorite way.
