Quick Details
-
Warranty:
-
Other
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ETONM
-
Model Number:
-
ET-SGM25A
-
Torque:
-
0.05-6kg.cm
-
Product Name:
-
ET-SGM25A
-
Application:
-
safe and locking, electric valve and meter
-
Keywords:
-
small size high torque
-
Rated Voltage:
-
3-24v
-
Motor Diameter:
-
25mm
-
Noise:
-
low noise
Quick Details
-
Speed(RPM):
-
5-100rpm
-
Continuous Current(A):
-
TBD
-
Efficiency:
-
IE 2
-
Warranty:
-
Other
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ETONM
-
Model Number:
-
ET-SGM25A
-
Torque:
-
0.05-6kg.cm
-
Product Name:
-
ET-SGM25A
-
Application:
-
safe and locking, electric valve and meter
-
Keywords:
-
small size high torque
-
Rated Voltage:
-
3-24v
-
Motor Diameter:
-
25mm
-
Noise:
-
low noise
Product Description

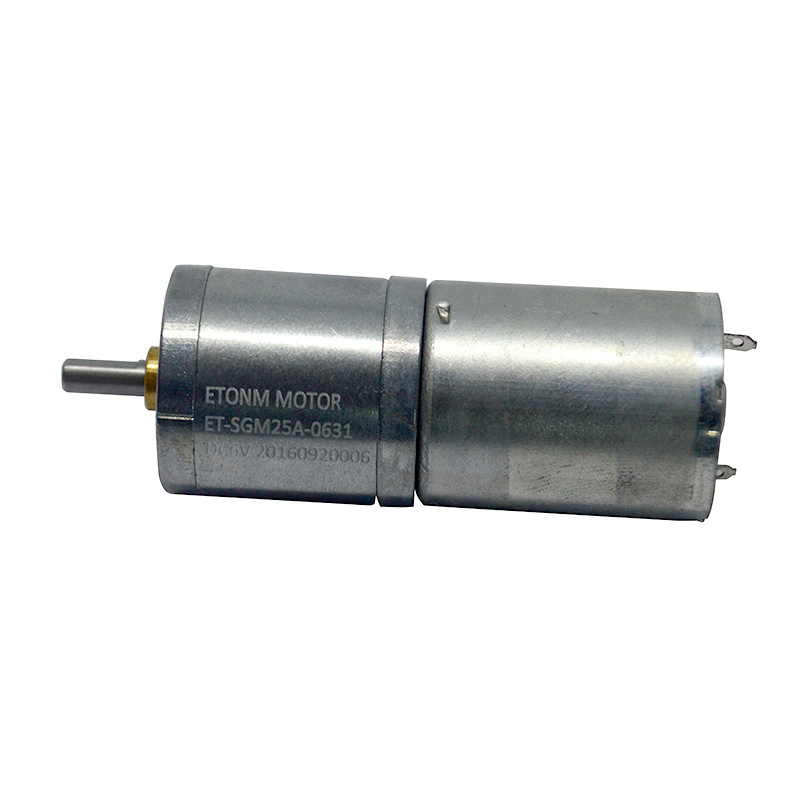

Precise Metal Gear Motor
performance range
Voltage: 3.0-24VDC
Speed: 5-100rpm
Torque: 0.05-6kg.cm
Key features
Metal Brush
CW/CCW running
Low Noise
Weight: 95g (APPROX)
Typical applications
electric valve and meter
safe and locking
sanitary diapenser
|
Gear ratio stage
|
4
|
5
|
6
|
7
|
8
|
|||
|
gear ratio
|
13
|
29
|
55
|
121
|
266
|
|||
|
|
21
|
41
|
63
|
139
|
307
|
|||
|
|
|
47
|
89
|
171
|
376
|
|||
|
|
|
|
103
|
197
|
433
|
|||
|
|
|
|
|
226
|
499
|
|||
|
|
|
|
|
|
|
|||
|
gearbox length(L)
|
23
|
|
|
27
|
29
|
|||
|
Model
|
voltage
|
|
no load
|
|
at rated load
|
|
|
||||
|
|
operation range
|
nominal
|
speed
|
current
|
speed
|
current
|
torque
|
||||
|
|
|
|
r/min
|
A
|
r/min
|
A
|
kg.cm
|
||||
|
ET-SGM25A-06333
|
3.0-7.2
|
6VDC
|
333
|
≤0.12
|
262
|
≤0.54
|
0.45
|
||||
|
ET-SGM25A-06241
|
3.0-7.2
|
6VDC
|
241
|
≤0.12
|
188
|
≤0.54
|
0.67
|
||||
|
ET-SGM25A-06170
|
3.0-7.2
|
6VDC
|
170
|
≤0.12
|
132
|
≤0.54
|
0.95
|
||||
|
ET-SGM25A-06149
|
3.0-7.2
|
6VDC
|
149
|
≤0.12
|
116
|
≤0.54
|
1.1
|
||||
|
ET-SGM25A-06127
|
3.0-7.2
|
6VDC
|
127
|
≤0.12
|
99
|
≤0.54
|
1.3
|
||||
|
ET-SGM25A-06111
|
3.0-7.2
|
6VDC
|
111
|
≤0.12
|
87
|
≤0.54
|
1.5
|
||||
|
ET-SGM25A-0678
|
3.0-7.2
|
6VDC
|
78
|
≤0.12
|
61
|
≤0.54
|
2.1
|
||||
|
ET-SGM25A-0668
|
3.0-7.2
|
6VDC
|
68
|
≤0.12
|
53
|
≤0.54
|
2.4
|
||||
|
ET-SGM25A-0658
|
3.0-7.2
|
6VDC
|
58
|
≤0.12
|
45
|
≤0.54
|
2.8
|
||||
|
ET-SGM25A-0650
|
3.0-7.2
|
6VDC
|
50
|
≤0.12
|
39
|
≤0.54
|
3.2
|
||||
|
ET-SGM25A-0641
|
3.0-7.2
|
6VDC
|
41
|
≤0.12
|
32
|
≤0.54
|
4
|
||||
|
ET-SGM25A-0631
|
3.0-7.2
|
6VDC
|
31
|
≤0.12
|
24
|
≤0.54
|
5
|
||||
|
ET-SGM25A-0622.8
|
3.0-7.2
|
6VDC
|
22.8
|
≤0.12
|
18
|
≤0.54
|
6*
|
||||
|
ET-SGM25A-0618
|
3.0-7.2
|
6VDC
|
18
|
≤0.12
|
14
|
≤0.54
|
6*
|
||||
|
ET-SGM25A-0614
|
3.0-7.2
|
6VDC
|
14
|
≤0.12
|
11
|
≤0.54
|
6*
|
||||
|
ET-SGM25A-0308
|
2.0-5.0
|
3VDC
|
8
|
≤0.07
|
5.5
|
≤0.22
|
4
|
||||
|
ET-SGM25A-0307
|
2.0-5.0
|
3VDC
|
7
|
≤0.07
|
5
|
≤0.22
|
5
|
||||
Remarks:
1. Shaft dimension can be customized.
2. The voltage can be 6v, 12v, 24v; The DC motor's speed is adjustable.
3. This gearbox can matched with other DC Motor.
Product Show and Customization Service
3v dc motor with gearbox high torque small size 25mm for safe and locking 6-24v
ET-SGM25A
This style motor is our hot sale products in
2021. ths annual sale quantity has reached
2,000,000pcs. it can widely used in different fields: safe and locking, electric valve, water meter, automatic pet door...etc. it's our precise metal gear motor.
according to our clinets different requirements, we customized diffrernt motors from our different clients as below.
