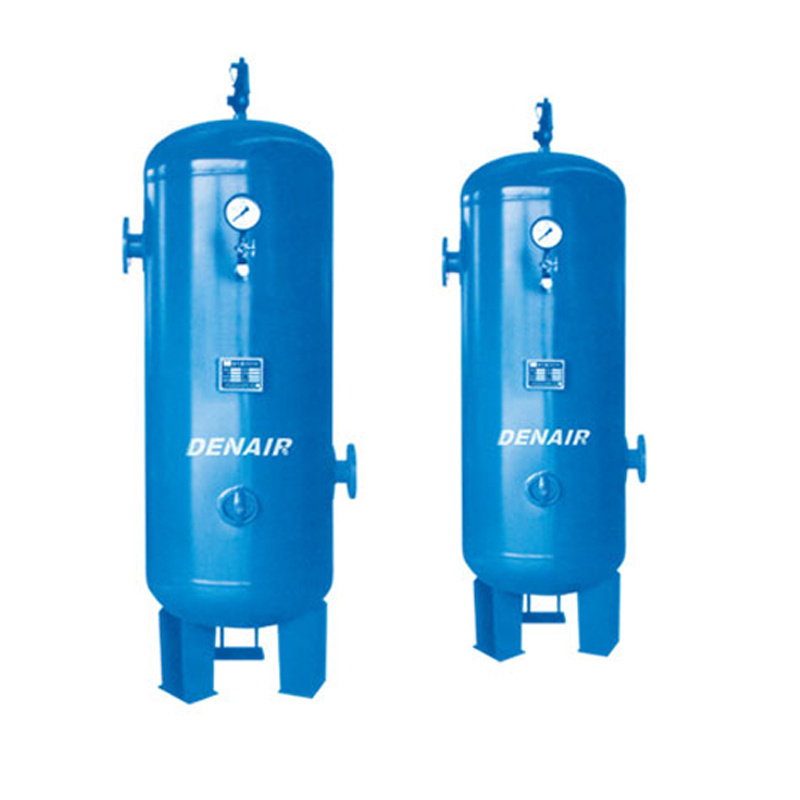

Air Compressor Storage Tank

FOB Reference Price: Get Latest Price

≥1 Sets

US $2211

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Local Service Location:: Philippines, Pakistan

Product name:: Air Compressor Storage Tank

Capacity:: 2000lt

Working pressure:: 16bar

Quick Details

Place of Origin:: Shanghai, China

Brand Name:: DENAIR

After Warranty Service:: Spare parts

Local Service Location:: Philippines, Pakistan

Product name:: Air Compressor Storage Tank

Capacity:: 2000lt

Working pressure:: 16bar

Product Advantages

Compressed Air Storage Tank Advantages:
1.Original from the most professional manufacturer in China. Design & Manufacture License of Special Equipment approved by State Bureau of Quality Technical Supervision.

2.More than 100 types of pressure vessels, 300~50000L, 8bar~40bar, carbon steel or stainless steel material are available.

3.Superb technology ensures the functions of storage and cooling compressed air, buffering pressure, draining out the impurities and reducing noise.

Technical Parameters

No.	Specification	Height	diameter	Air inlet			Air outlet			Support		Safety valve nozzle	Drain valve nozzle
No.	Capacidad /Pressure	H1	diameter	H2	DN	Screw thread type	H3	DN	Screw thread type	D	d	Safety valve nozzle	Drain valve nozzle
1	0.3/0.8	1594	550	642	50	Rp11/2	1242	50	Rp11/2	400	20	Rp3/4	R1/2
2	0.3/1.0	1594		642			1242
3	0.3/1.3	1598		644			1244
4	0.3/1.6	1598		644			1244
5	0.6/0.8	1905	700	680	65	Rp11/2	1550	65	Rp11/2	490	24	Rp3/4	R1/2
6	0.6/1.0	1907		681			1551
7	0.6/1.3	1909		682			1552
8	0.6/1.6	1907		681			1551
9	1.0/0.8	2305	800	690	65	Rp11/2	1920	65	Rp11/2	560	24	Rp1	R1/2
10	1.0/1.0	2307		691			1921
11	1.0/1.3	2305		690			1920
12	1.0/1.6	2307		691			1921
13	1.5/0.8	2265	1000	760	65	Rp2	1810	65	Rp2	560	24	Rp1	R1/2
14	1.5/1.0	2265		760			1810
15	1.5/1.3	2267		761			1811
16	1.5/1.6	2566	900	753	65	Rp2	2118	65	Rp2	630	24	Rp1	R1/2
17	2.0/0.8	2780	1000	760	80	Rp2	2320	80	Rp2	700	24	Rp11/2	R1/2
18	2.0/1.0	2780		760			2320
19	2.0/1.3	2782		761			2321
20	2.0/1.6	2786		763			2323
21	2.5/0.8	3300	1000	760	80	Rp2	2840	80	Rp2	700	24	Rp11/2	R1/2
22	2.5/1.0	3300		760			2840
23	2.5/1.3	3302		761			2841
24	2.5/1.6	2836	1100	788	80	Rp2	2348	80	Rp2	770	24	Rp11/2	R1/2
25	3.0/0.8	2920	1200	850	80	Rp2	2410	80	Rp2	906	24	Rp11/2	R3/4
26	3.0/1.0	2922		851			2411
27	3.0/1.3	2926		853			2413
28	3.0/1.6	2926		853			2413
29	4.0/0.8	3030	1400	910	100	Rp2	2470	100	Rp2	1050	24	Rp11/2	R3/4
30	4.0/1.0	3032		911			2471
31	4.0/1.3	3036		913			2473
32	4.0/1.6	3040		915			2475
33	5.0/0.8	3700	1400	910	100	Rp2	2990	100	Rp2	1050	24	Rp2	R3/4
34	5.0/1.0	3702		911			2991
35	5.0/1.3	3726		913			3013
36	5.0/1.6	3730		915			3015
37	6.0/0.8	4330	1400	910	DN		3620	DN		1050	24	Rp2	R3/4
38	6.0/1.0	4332		911	125		3621	125
39	6.0/1.3	4346		913			3633
40	6.0/1.6	4350		915			3635
41	8.0/0.8	3154	2000	1082	125		2362	125		1500	32	Rp2	R3/4
42	8.0/1.0	3156		1083			2383
43	8.0/1.3	3190		1100			2380
44	8.0/1.6	3194		1102			2382
45	10.0/0.8	3754	2000	1082	150		2962	150		1500	32	Rp11/2	R3/4
46	10.0/1.0	3756		1083			2963
47	10.0/1.3	3790		1100			2980
48	10.0/1.6	3794		1102			2982
49	12.0/0.8	4354	2000	1082	150		3562	150		1500	32	Rp11/2	R3/4
50	12.0/1.0	4356		1083			3563
51	12.0/1.3	4390		1100			3580
52	12.0/1.6	4394		1102			3582
53	15.0/0.8	4351	2200	1208	150		3618	150		1650	32	Rp11/2	R1
54	15.0/1.0	4533		1209			3619
55	13.0/1.3	4569		1227			3637
56	15.0/1.6	4573		1229			3639
57	20.0/0.8	5246	2400	1348	200		4168	200		1800	32	Rp11/2	R1
58	20.0/1.0	5250		1350			4170
59	20.0/1.3	5254		1352			4172
60	20.0/1.6	5258		1354			4174
61	25.0/0.8	6146	2400	1348	200		5068	200		1800	32	Rp3	R1
62	25.0/1.0	6150		1350			5070
63	25.0/1.3	6154		1352			5072
64	25.0/1.6	6158		1354			5074
65	30.0/0.8	6706	2500	1373	200		5603	200		1875	36	Rp3	R1
66	30.0/1.0	6710		1375			5605
67	30.0/1.3	6718		1379			5609
68	30.0/1.6	6722		1381			5611
69	40.0/0.8	8676	2500	1373	200		7413	200		1875	36	Rp3	R1
70	40.0/1.0	8680		1375			7415
71	40.0/1.3	8680		1379			7419
