Quick Details
-
Bottle Volume(ml):
-
20000 ml
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
ZQ
-
Year:
-
2024
-
Voltage:
-
Customized
-
Dimension(L*W*H):
-
4.1*2.7*2.1(m)
-
Hollow part volume:
-
20 liter
-
Clamping Force (kN):
-
200
-
Power (kW):
-
45
-
Weight (KG):
-
5000 KG
-
Type:
-
ZQ-B20L-1
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Power:
-
45KW
-
Weight:
-
5000kg
-
Production Capacity (BPH):
-
400
-
Blow Moulding Type:
-
Stretch Blow Moulding
-
After Warranty Service:
-
Video technical support
-
Certification:
-
CE,ISO9001:2008
Quick Details
-
Neck Diameter(mm):
-
90 mm
-
Max.Bottle Diameter(mm):
-
290 mm
-
Max.Bottle Height(mm):
-
490 mm
-
Bottle Volume(ml):
-
20000 ml
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
ZQ
-
Year:
-
2024
-
Voltage:
-
Customized
-
Dimension(L*W*H):
-
4.1*2.7*2.1(m)
-
Hollow part volume:
-
20 liter
-
Clamping Force (kN):
-
200
-
Power (kW):
-
45
-
Weight (KG):
-
5000 KG
-
Type:
-
ZQ-B20L-1
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Power:
-
45KW
-
Weight:
-
5000kg
-
Production Capacity (BPH):
-
400
-
Blow Moulding Type:
-
Stretch Blow Moulding
-
After Warranty Service:
-
Video technical support
-
Certification:
-
CE,ISO9001:2008
Blowing system: create the high-pressure integration valve group, the single cavity productive capacity is increased by 60%.
Concentrated heating system: patent light box provides an even temperature, lamp distance 101mm rather than 240mm from
others and save power by more than 50%.
Stretching system: use linear sliding track framework instead of liner bearing, which offers an outstanding improvement of stability.
Main transmission system: adopt patent double strand roller chains technology, to assure the demands of stability and high speed.
Hydraulic mould clamping system replace the traditional pneumatic clamping system ,booster pressure from one sides with 2 plate forming to assure the high clamping stability at a pass rage of 99.8%.

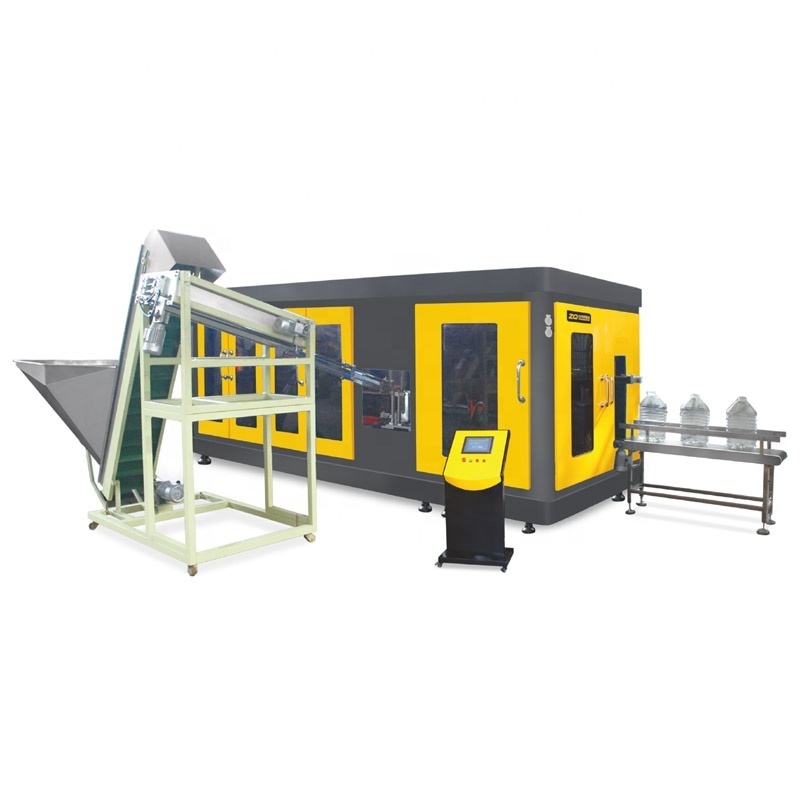

Fully automatic 20 Liter PET Bottle blowing Machine
| TYPE | ITEM | ZQ-B20L-1 | ZQ-B20L-2 |
| CONTAINER | Number of cavity | 1 cavities | 2 cavities |
| Output | 300-400 pcs/hr | 600-800 pcs/hr | |
| Max.container volume | 20.0L | 20.0L | |
| Max.neck diameter | 90mm | 90mm | |
| Max.container diameter | 290mm | 290mm | |
| Max.container height | 490mm | 490mm | |
| ELECTRICAL SYSTEM | Number of lamp | 30pcs | 60pcs |
| Max.heating power | 60kw | 120kw | |
| Installation power | 65kw | 125kw | |
| Actual power consumption | 45kw | 65kw | |
| AIR SYSTEM | Operatating pressure | 7-8kg/cm 2 | 7-8kg/cm 2 |
| Low pressure consuming | 1500Ltr/min | 1800Ltr/min | |
| Blowing pressure | 25-35kg/cm 2 | 25-35kg/cm 2 | |
| High pressure consuming | 2000-2500 Ltr/min | 3500-4000 Ltr/min | |
| CHILLER WATER | Operating pressure | 5-6 kg/cm 2 | 5-6 kg/cm 2 |
| Temperatuer | 10℃ | 10℃ | |
| Consuming | 6000kcal/hr | 8000kcal/hr | |
| Flow rater | 50Ltr/min | 88Ltr/min | |
| MACHINE | Machine dimension | 4.1x2.7x2.1(m) | 5.1x2.7x2.1(m) |
| Machine weight | 4.0ton | 5.0ton |
Note: The specifications are subject to change without notice for the further improvement.
!Note: Custom production accepted. Any client idea tried.
