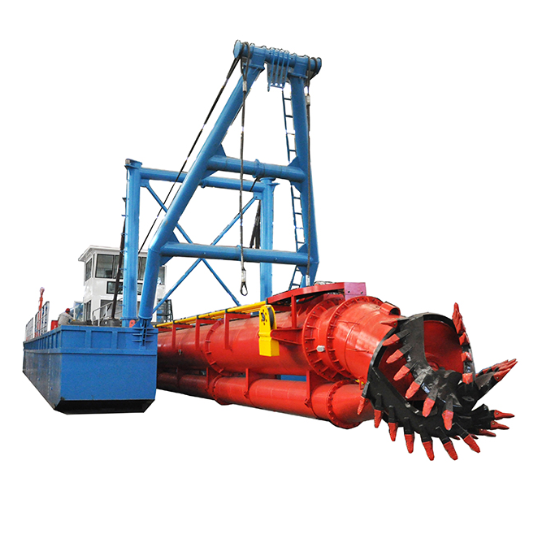

We have many type dredger:Cutter suction dredger, bucket chain dredger, amphibious dredger, sand jet suction dredger.
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Keda
-
Dimension(L*W*H):
-
36.5*7.7*2.2m
-
Weight:
-
185000 KG
-
Model:
-
KD-CSD450B
-
Water Capacity:
-
4000m3/h
-
Discharge Distance:
-
2000m
-
Suction Pipe Diameter:
-
600mm
-
Discharge Pipe Diameter:
-
550mm
-
Total Installed Power:
-
1640kw
-
Engine Brand:
-
Cummins/Weichai/Yuchai
-
Driving:
-
Hydraulic
Quick Details
-
Marketing Type:
-
New Product 2022
-
Dredging Depth:
-
20 m, 20m
-
Draught:
-
170 cm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Keda
-
Dimension(L*W*H):
-
36.5*7.7*2.2m
-
Weight:
-
185000 KG
-
Model:
-
KD-CSD450B
-
Water Capacity:
-
4000m3/h
-
Discharge Distance:
-
2000m
-
Suction Pipe Diameter:
-
600mm
-
Discharge Pipe Diameter:
-
550mm
-
Total Installed Power:
-
1640kw
-
Engine Brand:
-
Cummins/Weichai/Yuchai
-
Driving:
-
Hydraulic
Product Description
Qingzhou KEDA Environment Protection Machinery Co., Ltd
We are a professional manufacturer of dredgers with more than 10 years of design and development experience.
Modular structure -Easy to install
1.
Floating body (double)
2.
Bridge
3.
Reamer head
4.
Cockpit
5.
Locating pile
Professional Design
1.
Customized on demand
2.
Professional and technical team
3.
One-stop solution
4.
Variety of professional programs
Product parameters
|
Model
|
Work Capacity
|
Dredging Depth
|
Head
|
Discharge Distance
|
|
CSD150
|
450m3/h
|
5m
|
36m
|
500m
|
|
CSD200
|
750m3/h
|
6m
|
49m
|
700m
|
|
CSD250
|
1100m3/h
|
10m
|
56m
|
1000m
|
|
CSD300
|
2200m3/h
|
12m
|
57m
|
1500m
|
|
CSD350
|
3000m3/h
|
12m
|
58m
|
2000m
|
|
CSD450
|
4000m3/h
|
15m
|
55m
|
2000m
|
|
CSD500
|
5000m3/h
|
16m
|
62m
|
2500m
|
Detailed Images
Pontoon for Effective and Powerful Dredging Machine Sand Dredger
The dredger pontoon is with dismantle type and box-like structure, In order to transported convenient by truck, easy installation at working site.
And it is sandblasted and painted by 4 layers of marine epoxy paint suitable for saltwater service.The Zinc anode can be used to give better anti-corrosion function.
Hydraulic system for Effective and Powerful Dredging Machine Sand Dredger
An integral hydraulic system includes hydraulic cutter head, hydraulic winch, hydraulic pump, hydraulic valve manifold, solenoid valve, hydraulic pipes, hydraulic components, electrical actuator and so on.
The hydraulic system requirements are very high and strict, it is the main artery of the entire dredger. The swing winches,lifting winch and cutter head are all driven by separate hydraulic motors.
The spud cylinder is hydraulic powered to lift spuds, the alternate swing of spuds will move the dredger.
Engine for Effective and Powerful Dredging Machine Sand Dredger
Cummins Engine is global warranty,spare parts can be available in short time.
Environmental protection and Energy conservation
The main engine driven the dredge pump and auxiliary engine drives hydraulic system including cutter,swing winches,ladder winch and the spud rams etc. And the emergency genset supplies electricity for lighting and emergency use when the dredge doesn't work.
Pump for Effective and Powerful Dredging Machine Sand Dredger
Shijiazhuan Pump adopt advanced woma technology.
1.Structure good,WN dredger pump adopts semi double shell structure, which reduces unnecessary auxiliary structure and process structure.
2.Advanced hydraulic model, the efficiency is high. The efficiency of the WN mud pump is 2-3 percentage point higher than before. In this way, lower energy consumption can be achieved at the same output.
3.Good wear resistance with long life.
Also can install Imported Original Pump from Abroad.
Dredging Control System for Effective and Powerful Dredging Machine Sand Dredger
1.User-friendly touch screen control.
2.Remote servicing possibilities.
3.Proven and reliable PLC/SCADA technology.
4.Enhances operational efficiency and reduces fuel costs and emissions.
5.Saves installation costs and commissioning time.
Transportation pipe for Effective and Powerful Dredging Machine Sand Dredger
If needed, we will match the suitable Transportating pipe for you.
Our Service
♦ Pre-sale services: Passion &thoughtful
We provide you with the prophase plan, process flow design and manufacturer equipment according to your special demand.
♦ Sale services: Oversea Technicians
Oversea technicians will be sent to the jobsite for guiding the installation training operators and finishing the check and accept together with you.
♦ After-sale services: Faithfulness
One year warrantee to make sure your machine runs consistently. We always keep certain inventory level of spare parts, which means the replacements can be shipped to you right away.
Packing & Delivery
Packing Details : In bulk or in Standard container. The spare parts will be in box
Delivery Details : 40-60 days after the down T/T payment or Original LC
Our Factory
1. Qingzhou Keda Mining Machine Co., Ltd. mainly produces iron selecting equipment, kinds of drederes, dredging equipment, sand washing and sand making equipment, gold panning equipment, magnetic separating, crusher etc.
2. We design produce various of products according to the customers requirement and geographical condition. It is a modern large-scale mineral processing equipment manufacturer for research and development, engineering design, producing installation, commissioning and after sale service.
3. Our company had established and improve the equipment file and service system, concentrating on customer feedback to make the products constantly improved to meet the customers' different needs.
FAQ
1) I never used this kind of machine, is it easy to operate?
Our engineers will guide you in the installation and use, and there are english manual and guide video that show how to use machine.
2) What should I do if the machine has any problems after I order it?
Free parts send to you in machine warranty period if machine have any problem.Free after-sales service life for machine, please feel free contact us if your machine have any problem. We will give you solution from phone and skype.
