Quick Details
-
Use:
-
Warehouse Rack
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Victory
-
Model Number:
-
NH03
-
Depth:
-
800-1500mm
-
Weight Capacity:
-
1000-5000kg
-
Width:
-
900-3500mm
-
Height:
-
1500-7000mm
-
Product name:
-
Heavy Duty Pallet Rack
-
Application:
-
Warehouse Storage Racks Solutions
-
Loading Capacity:
-
1500~4500kgs/level
-
Payment Terms:
-
T/T: 30% Deposit+70%banlance
-
Delivery time:
-
15-20 Days
-
Finish:
-
Powed Coated
-
Style:
-
Heavy Duty Selective Rack
-
Color:
-
Customized
Quick Details
-
Type:
-
Selective Pallet Rack
-
Material:
-
Steel
-
Feature:
-
Corrosion Protection
-
Use:
-
Warehouse Rack
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Victory
-
Model Number:
-
NH03
-
Depth:
-
800-1500mm
-
Weight Capacity:
-
1000-5000kg
-
Width:
-
900-3500mm
-
Height:
-
1500-7000mm
-
Product name:
-
Heavy Duty Pallet Rack
-
Application:
-
Warehouse Storage Racks Solutions
-
Loading Capacity:
-
1500~4500kgs/level
-
Payment Terms:
-
T/T: 30% Deposit+70%banlance
-
Delivery time:
-
15-20 Days
-
Finish:
-
Powed Coated
-
Style:
-
Heavy Duty Selective Rack
-
Color:
-
Customized
Product description

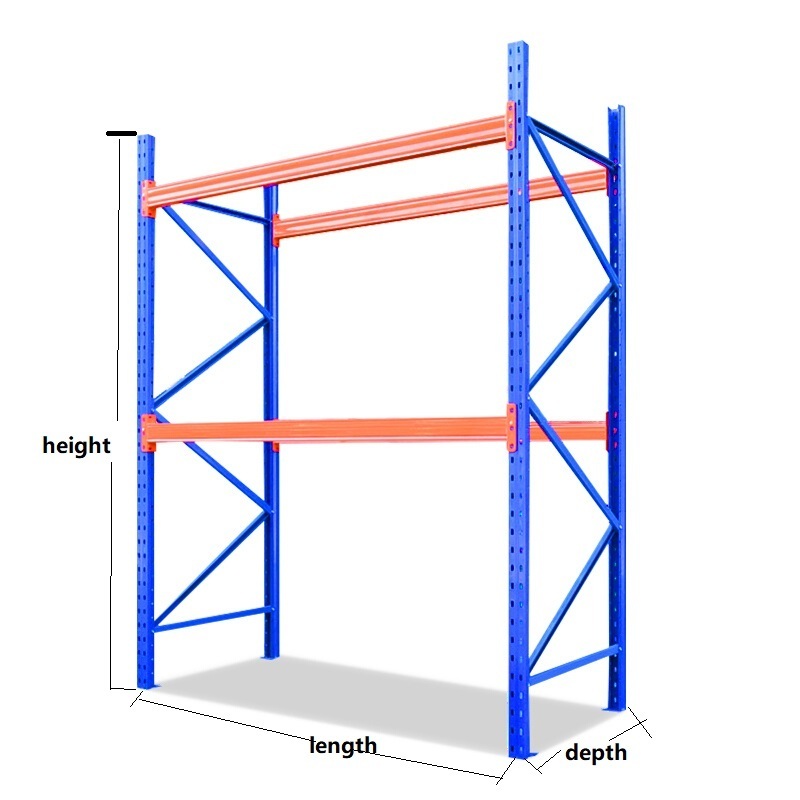

Selective Pallet Rack
Pallet rack
is very cost-effective providing high capacity storage and easy access to all pallets， which is suitable for various types of goods
.
The structure is designed for very heavy goods with the ability to select storage positions easily with no limitations for pallets used in industrial factories or warehouses for stocking and storing raw materials awaiting dispatch.
|
Type
|
Heavy Duty Pallet Rack
|
|
|
Dimension
|
Width: 1200-4000mm
Depth: 600-1500mm Height:1800-12000mm |
|
|
Box Beam
|
80x50, 100x50, 120x50, 130x50, 140x50, 160x50mm, thickness 1.5-2.0mm
|
|
|
Upright
|
80x60, 90x70, 100x70, 120x95mm, thickness: 1.8-3.0mm
|
|
|
Surface treatment
|
Electrostatic powder coating surface
|
|
|
Color
|
RAL color per customer's requirement
|
|
|
Weight capacity
|
1000--5000kg per layer
|
|
|
Package
|
Export package by steel straps and plastic filims.
|
|
|
Worldwide Markets
|
Exported to more than 50 countries and areas, such as Austrilia, Singpore, UAE, South Africa, Thailand, Kuwait, Barlin, etc.
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Specifications
Upright and beam connection
Footplate
Bracing connection
Upright and bracing connection
CAD drawing display
Case display
