Quick Details
-
Model Number:
-
ZCKS-1
-
Brand Name:
-
CQATMT
Quick Details
-
Port Size:
-
1/2-8"
-
Warranty:
-
1years
-
Place of Origin:
-
ZHE
-
Model Number:
-
ZCKS-1
-
Brand Name:
-
CQATMT
Specification
|
item
|
valve.
|
|
Warranty
|
3 years
|
|
Type
|
Water Heater Service Valves, Safety Relief Valves, Pressure Reducing Control Valves, Water Pressure Reducing Valves, Balancing Valves, Flange solenoid valve.
|
|
Customized support
|
OEM, ODM, OBM, Software reengineering
|
|
Place of Origin
|
ZHE
|
|
Brand Name
|
CQATMT
|
|
Model Number
|
Zcks-1
|
|
Temperature of Media
|
High Temperature, Low Temperature, Medium Temperature, Normal Temperature, 180
|
|
Power
|
Electronic control.
|
|
Media
|
Water, steam, oil products.
|
|
Port Size
|
1/2-8"
|
|
Structure
|
Safety
|
|
|
|

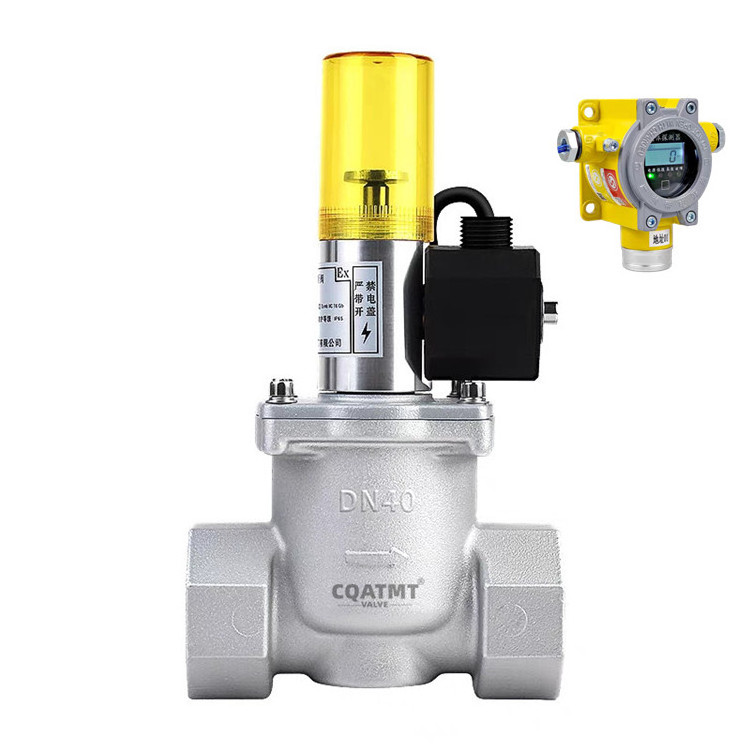

Product Description
Product product details.
1、 Product Usage:
The flange solenoid valve is suitable for automatic control of liquid level, concentration, flow rate, metering, or discharge circulation using water, liquid, or gas as the medium. It is a two position on/off switch with two ports, normally closed or normally open.
2、 Structure:
1. Direct acting diaphragm structure, quick opening, no pressure start, wide range of use, commonly used for specifications with pressure within PN1.6MPa and diameter within DN50.
2. The pilot type secondary opening valve structure mainly consists of a pilot valve and a main valve, and the main valve adopts a rubber sealing structure. When in the normal position, the movable iron core seals the pilot valve port, the pressure inside the valve chamber is balanced, and the main valve port is closed. When the coil is energized, electromagnetic force is generated to attract the movable iron core, causing the medium in the main valve chamber to leak out from the pilot valve port, resulting in a pressure difference. The diaphragm or valve cup is quickly lifted, the main valve port opens, and the pipeline opens. It is often used in situations such as large caliber and unstable pressure,
3、 Parameters:
Nominal diameter: DN15-100
Principle and structure: step-by-step direct action, pilot type
Valve body material: brass, SS304, cast steel, cast iron
Sealing material: NBR, FKM (diameter ≥ 15mm)
Environmental temperature: -10 ℃~+60 ℃ (explosion-proof type -20 ℃~+50 ℃)
Fluid temperature C2: -10 ℃~90 ℃
Applicable fluids: water, gas, liquid (without solid impurities)
Fluid viscosity: ≤ 22mm2/S
Connection method: internal thread, flange
Installation method: Horizontal installation, coil up
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
