Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ZHAOWEI
-
Model Number:
-
gear motor
-
Torque:
-
32mN.m-661mN.m
-
Voltage range:
-
5-24V
-
No Load Current:
-
80mA
-
Load Current:
-
120mA
-
Load Torque:
-
320-6,480gf.cm
-
Gear Ratio:
-
64-1296
-
Diameter:
-
16MM
-
Motor type:
-
reduction motor
-
Gear Material:
-
metal powder metallurgy
-
Name:
-

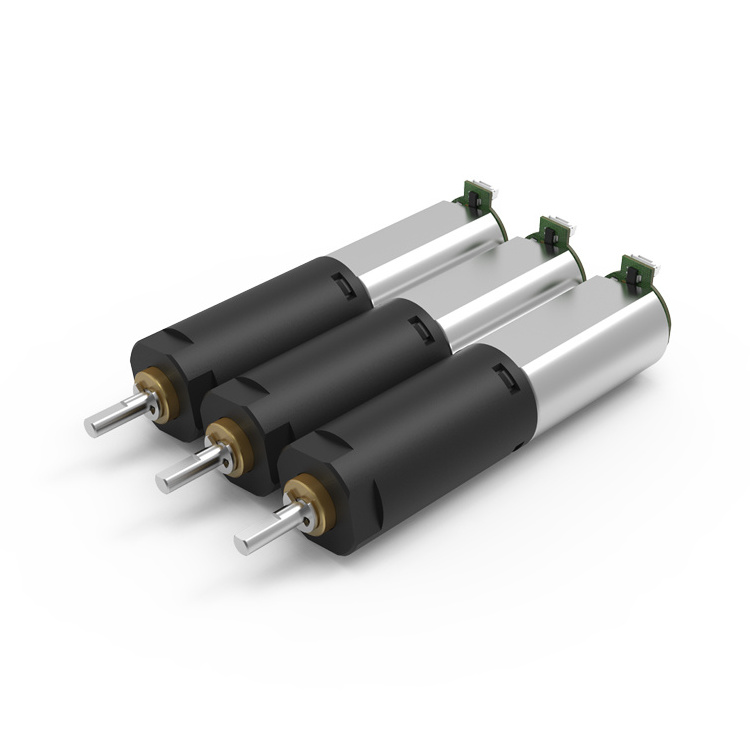

small electric motors with gearbox
-
Certification:
-
ISO9001/ISO14001/ISO13485/IATF16949
Quick Details
-
Speed(RPM):
-
Rated Speed:15-302rpm
-
Continuous Current(A):
-
120mA
-
Efficiency:
-
Customize IE1-IE4
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ZHAOWEI
-
Model Number:
-
gear motor
-
Torque:
-
32mN.m-661mN.m
-
Voltage range:
-
5-24V
-
No Load Current:
-
80mA
-
Load Current:
-
120mA
-
Load Torque:
-
320-6,480gf.cm
-
Gear Ratio:
-
64-1296
-
Diameter:
-
16MM
-
Motor type:
-
reduction motor
-
Gear Material:
-
metal powder metallurgy
-
Name:
-
small electric motors with gearbox
-
Certification:
-
ISO9001/ISO14001/ISO13485/IATF16949
|
provide micro gear gearbox motor drives system custom services. |
|||
| dc gear motor(size) | Rated Voltage | speed | load current |
| 3.4mm | 1.5-5V | 3.5-300rpm | 100mA-220mA |
| 4mm | 2.4-300rpm | 340mA | |
| 6 mm | 3 – 12V |
No Load Speed: 11-3824 rpm Rated Load Speed: 10-3229 rpm |
No Load Current: 40 mA Rated Load Current: 100 mA |
| 8 mm | 14 – 3111 rpm | Gear Stages: 1 – 4 | |
| 10 mm | 3-24 V |
No Load Speed: 20-4318 rpm Rated Load Speed: 18-3625 rpm |
No-load Current: 60-80 mA |
| 12 mm | 7 – 254 rpm | Gear Stages: 1 – 4 | |
| 16 mm |
No-load Speed: 4-1,373 rpm Rated Load Speed: 3-1,125 rpm |
No-load Current: 85-110 mA Rated Load Current: 130-150 mA |
|
| 20 mm |
No-load Speed: 7-1,636 rpm Rated Load Speed: 7-1,420 rpm |
No-load Current: 70-90 mA Rated Load Current: 125-130 mA |
|
| 22 mm |
No-load Speed: 6-1,886 rpm Rated Load Speed: 5-1,675 rpm |
No-load Current: 100-120 mA Rated Load Current: 295-300 mA |
|
| 24 mm |
No-load Speed: 5-1,460 rpm Rated Load Speed: 4-1,259 rpm |
No-load Current: 70-80 mA Rated Load Current: 215-220 mA |
|
| 28 mm | 5 – 1658 rpm |
300mA max Gear Stages: 1 – 4 |
|
| 32 mm | 5 – 1348 rpm | Gear Stages: 1 – 4 | |
| 38 mm |
No-load Speed: 3-1,386 rpm Rated Load Speed: 3-1,294 rpm |
No-load Current: 315-335 mA Rated Load Current: 1,679-1,684 mA |
|
