Quick Details
-
Jacket:
-
PVC
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
GUOWANG
-
Model Number:
-
YJV32
-
Size:
-
1.5mm2 to 630mm2
-
Rated voltage:
-
0.6/1kv, 1.8/3KV
-
Core:
-
2 Core
-
Color:
-
Red, Blue, Yellow, Black, etc
-
Standard:
-
IEC 60502
-
Certificate:
-
ISO9001/ISO14001 /OHSAS18001/CCC
-
Insulation:
-
XLPE PE PVC
-
Product name:
-
Electrical Power Cable
-
Conductor:
-
Copper 99.995%
-
Material:
-
PVC+Copper
-
MOQ:
-
500 Meters
Quick Details
-
Insulation Material:
-
Xlpe
-
Application:
-
Construction
-
Conductor Material:
-
Copper
-
Jacket:
-
PVC
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
GUOWANG
-
Model Number:
-
YJV32
-
Size:
-
1.5mm2 to 630mm2
-
Rated voltage:
-
0.6/1kv, 1.8/3KV
-
Core:
-
2 Core
-
Color:
-
Red, Blue, Yellow, Black, etc
-
Standard:
-
IEC 60502
-
Certificate:
-
ISO9001/ISO14001 /OHSAS18001/CCC
-
Insulation:
-
XLPE PE PVC
-
Product name:
-
Electrical Power Cable
-
Conductor:
-
Copper 99.995%
-
Material:
-
PVC+Copper
-
MOQ:
-
500 Meters

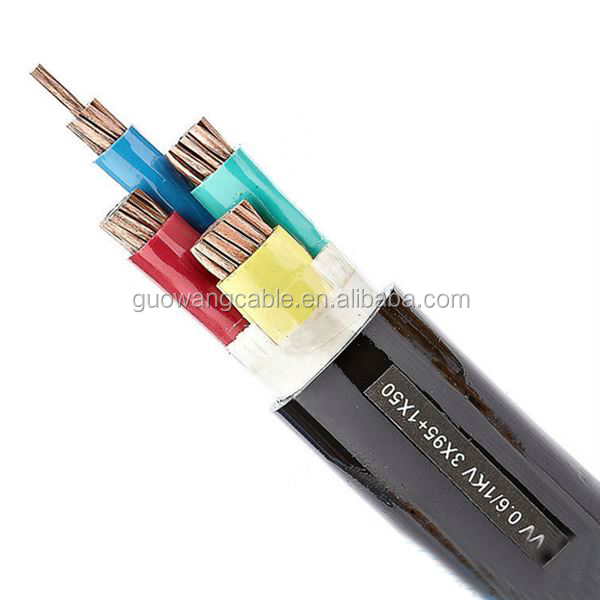

0.6/1 Kv DC Steel Wire/Tape Armor Power Cable with XLPE Insulation 3G 6 sq mm
Application
Low Voltage Armoured cable is used to transmit and distribute power in power transmission and distribution system of 35kV or lower. It is generally applied to the fields including power, construction, mines, metallurgy, petrochemical industry and communication in complete replace of oil immersed paper insulated power cable.
Features
1. The highest allowed operating temperature of conductor for long-term working is 90 degrees.
2. In short circuit (Max long term is no more than 5 seconds). The highest temperature for conductor is no more than 250 degrees.
3. The cable is laid without horizontal drop limit. The environment temperature should be no lower than 0 when lay. Otherwise it should be preheated.
Standard
1
,
IEC, BS, VDE, AS/NZS, ICEA, JIS and so on.
2
,
Only the halogen free cables shall be generally produced complied with IEC61034 and 60754.
Construction
Conductor: Plain Anealed Copper or Aluminum
Conductor Shape: Circular Stranded or Compacted Circular Stranded
Appearance Shape: Circular
Insulation: XLPE
Armoured Type: SWA(Steel Wire Armoured)
Sheath Material: PVC or Polyethylene
Technical Data of 0.6/1 Kv DC Steel Wire/Tape Armor Power Cable with XLPE Insulation 3G 6 sq mm
| Nominal Cross Section | Approx. Overall Diameter of Conductor | Nominal Thickness of XLPE Insulation | Nominal Thickness of PVC Inner Sheath | Thickness of PVC Outer Sheath | Approx.Overall Diameter | Approx. Weight |
| mm2 | mm | mm | mm | mm | mm | kg/km |
| 1.5 | 1.6 | 0.7 | 1 | 1.7 | 14.7 | 325 |
| 2.5 | 2 | 0.7 | 1 | 1.7 | 15.7 | 378 |
| 4 | 2.6 | 0.7 | 1 | 1.7 | 16.7 | 438 |
| 6 | 3.1 | 0.7 | 1 | 1.7 | 17.9 | 516 |
| 10 | 3.8 | 0.7 | 1 | 1.7 | 20.2 | 763 |
| 16 | 4.8 | 0.7 | 1 | 1.7 | 22.3 | 963 |
| 25 | 6 | 0.9 | 1 | 1.7 | 26.3 | 1413 |
| 35 | 7.1 | 0.9 | 1 | 1.7 | 28.6 | 1682 |
| 50 | 8.4 | 1 | 1 | 1.7 | 31.7 | 2061 |
| 70 | 10 | 1.1 | 1 | 1.9 | 29.1 | 2295 |
| 95 | 11.7 | 1.1 | 1.2 | 2 | 33.3 | 3132 |
| 120 | 13.3 | 1.2 | 1.2 | 2.1 | 36.7 | 3777 |
| 150 | 14.5 | 1.4 | 1.2 | 2.2 | 39.3 | 4450 |
| 185 | 16.4 | 1.6 | 1.4 | 2.4 | 45.4 | 5840 |
| 240 | 18.7 | 1.7 | 1.4 | 2.5 | 50.3 | 7190 |
| 300 | 20.4 | 1.8 | 1.5 | 2.6 | 53.8 | 8575 |
