Quick Details
-
Air Volume:
-
190~500L/Min
-
Weight:
-
0.95kg
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
KQ
-
Model Number:
-
KQ883
-
Product name:
-
Hot Air Welders
-
Type:
-
Power Tool
-
Power:
-
1800W
-
Warranty:
-
12 Months
-
Function:
-
Shrinking Plastic Wrap
-
Package:
-
Carton Package
-
MOQ:
-
1
-
Adjust temperature:
-
100-600s
-
Model:
-
KQ883
-
Color:
-
Yellow Black
Quick Details
-
Feature:
-
Cool / Hot Air, Temperature Adjustable
-
Rated Voltage:
-
220V
-
Rated Output Power:
-
750W
-
Air Volume:
-
190~500L/Min
-
Weight:
-
0.95kg
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
KQ
-
Model Number:
-
KQ883
-
Product name:
-
Hot Air Welders
-
Type:
-
Power Tool
-
Power:
-
1800W
-
Warranty:
-
12 Months
-
Function:
-
Shrinking Plastic Wrap
-
Package:
-
Carton Package
-
MOQ:
-
1
-
Adjust temperature:
-
100-600s
-
Model:
-
KQ883
-
Color:
-
Yellow Black

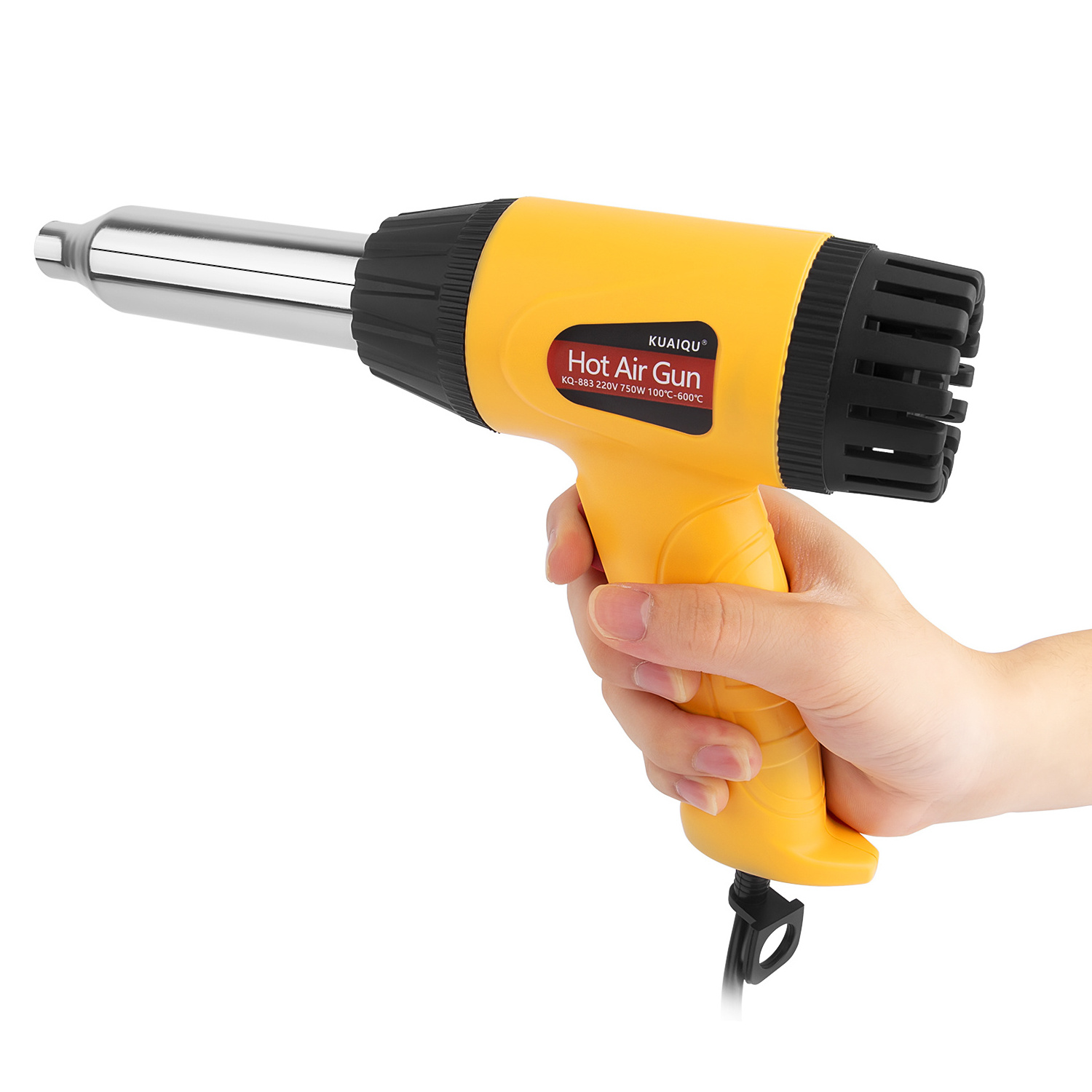

220V Heat Gun Electric Hot Air Gun Variable 100-600 Degrees Celsius Temperatures Industrial Power Tool
Operating manual of electronic temperature regulating plastic welding torch
This product is suitable for hand injection molding top white treatment, plastic hardware return treatment, plastic welding repair treatment, integrated circuit welding, disassembly treatment and electronic, chemical industry widely used.
1. TECHNICAL PARAMETERS: 220V ~ 50Hz.
2. Insert the torch plug into the power socket and keep it well grounded.
3, the torch switch from the lower to the middle (ow temperature heating)，and then to the upper (high temperature heating)，you can carry out the welding operation.
4.The temperature of the welding torch can be adjusted from 100°C to 600°C, and the plastic plate becomes soft when it is heated to 130°C -140°C, with a itte pressure, it's ready to go. Using Electronic Thermostat to get the required welding temperature, welding temperature is generally around 240°C, welding should pay attention to the distance
between the pot nozzle and the welding spot.
5, the end of the operation, the first switch to the middle, and then the temperature control knob to the lowest, and so on 2 minutes, and then turn off the power, so that you can extend the service life of the torch.
6. Don'tlet the torch out of your sight while in use, and if you do, unplug it no matter how long it takes.
7, welding gun with light to put, so as not to damage part of the welding torch refractory data, and short- circuit heating wire.
8. After six months of use, a few drops of pure white oil should be added to the bearings of micro motors to reduce friction.
9.Don't dismantle it yourself if you're not a professional.
Your Packing list include:
1*hot air gun
|
Model
|
883
|
882
|
881
|
880
|
|
Temperature Display
|
No digital display
|
Digital display
|
Digital display
|
No digital display
|
|
|
|
on the back cover
|
on the side
|
|
|
Temperature
|
Two-step stepless
|
Digital display stepless
|
Digital display stepless
|
Two-step stepless
|
|
Adjustment Function
|
temperature regulation
|
temperature regulation
|
temperature regulation
|
temperature regulation
|
|
Working Temperature
|
100 °C ~ 600 °C
|
60 °C ~ 600 °C
|
60 °C ~ 600 °C
|
60 °C ~ 600 °C
|
|
Air flow
|
300-500L
|
300-500L
|
300-500L
|
300-500L
|
|
Power type
|
AC power
|
AC power
|
AC power
|
AC power
|
|
Rated voltage
|
220V 50Hz
|
220V 50Hz
|
220V 50Hz
|
220V 50Hz
|
|
Working current
|
8A
|
8A
|
8A
|
7.5A
|
|
Rated input power
|
750W
|
1800W
|
1800W
|
1800W
|
|
Noise decibel
|
250-500 L/ min
|
250-500 L/ min
|
250-500 L/ min
|
250-500 L/ min
|
|
Features
|
Electronic thermostat
|
LCD display
|
LCD display temperature with delay of 20 seconds for shutdown
|
Electronic thermostat
|
|
|
|
temperature
|
|
|
