Quick Details
-
Size:
-
10.4 inch
-
Touch panel:
-
5-wire resistive
-
CPU:
-
In tel N2800, dual-core 1.86GHz
-
Memory:
-
2GB DDR3, optional: 4GB
-
OS:
-
Wind 10/8, Wind Embedded 7, Linux
-
LAN:
-
Ethernet 10/100M(RJ45)
-
Interface:
-
RS232 x 4, COM 2 supports RS485/232/422
-
Power input:
-
DC 12V, optional: DC 6-32V wide voltage
-
Power consumption:
-
≤22W
Quick Details
-
Type:
-
Embedded Computer
-
Brand Name:
-
LILLIPUT
-
Place of Origin:
-
Fujian, China
-
Size:
-
10.4 inch
-
Touch panel:
-
5-wire resistive
-
CPU:
-
In tel N2800, dual-core 1.86GHz
-
Memory:
-
2GB DDR3, optional: 4GB
-
OS:
-
Wind 10/8, Wind Embedded 7, Linux
-
LAN:
-
Ethernet 10/100M(RJ45)
-
Interface:
-
RS232 x 4, COM 2 supports RS485/232/422
-
Power input:
-
DC 12V, optional: DC 6-32V wide voltage
-
Power consumption:
-
≤22W

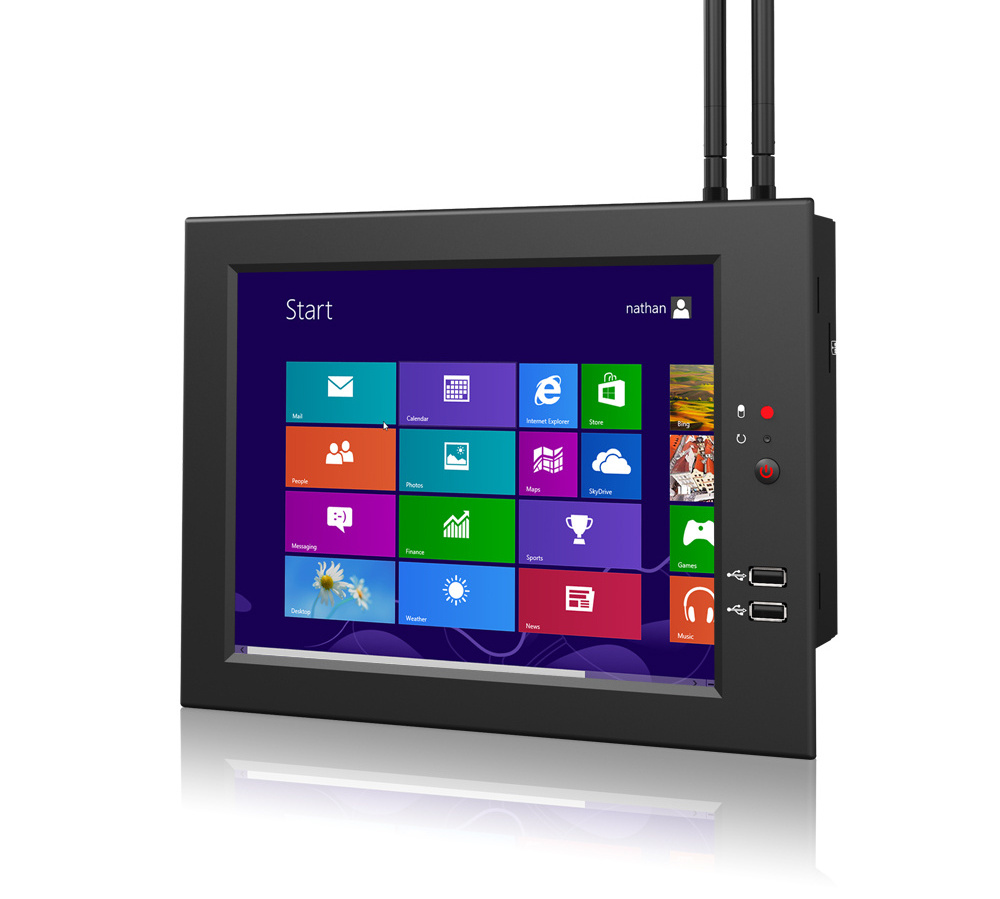

LILLIPUT 10.4" rugged industrial computer all in one MDT with 4G 3G GPS Wifi BT
Model No.: PC-1041
LCD Panel all in one PC for Industrial Application.
All hardware and software customized to your requirements.
Powerful 1.86GHz dual-core CPU, 2G DDR3 RAM;
10.4" LED display with resistive touch;
RS232 × 4, COM 2 supports RS485/232/422;
Fanless cooling system;
Wide voltage 6-32V for optional;
3G/WIFI/BT/GPS for optional;
Metal housing design;
HDMI & VGA output;
Dual Ethernet port;
Multiple mount methods.
Optional: GPS, 3G, BT, Wi-Fi 802.11 b/g/n.
| Display Screen | 10.4“ LED backlit |
| Resolution | 800×600 (1,440,000) pixels |
| Touch Panel | 5-wire resistive |
| Brightness | 250cd/m² |
| Aspect Ratio | 4:3 |
| Contrast Ratio | 500:1 |
| Viewing Angle | 140° / 110°(H/V) |
| OS | Wind 7/8, Windows Embedded 7, Linux |
| CPU | Intel N2800, dual-core 1.86GHz |
| Memory | 2G DDR3, optional: 4GB |
| Storage | PCIe mSATA SSD 128G (Optional: 2.5" SATA HDD) |
| Chipset | Intel NM10 chipset |
| L2 Cache | 1024KB |
| Video Card | built-in display memory |
| Sound Card | 4 channels |
| Expansion | Built-in Mini PCIe×1, optional for 4G / 3G / WIFI |
| Interface |
RS232×4 (COM2 support RS232/422/485), HDMI out, VGA out, Audio out,
DC 12V in, XLR, USB2.0×4, LAN×2, SIM slot, Antenna, |
| Input Voltage | DC 12V, optional: DC 6-32V wide voltage |
| Current | 1.8A |
| Power Consumption | ≤22W |
| Speaker | 1W |
| Working Temperature | 0~50ºC |
| Storage Temperature | -10~65ºC |
| Dimension(LWD) | 280 × 210 × 58.8 mm |
| Weight | 2410g |
