Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
XIEGU G106, XIEGU
-
Model Number:
-
G106, G106
-
Dimensions:
-
120*40*135 (mm)
-
Frequency Range:
-
0.55~30MHz,88~108MHz (WFM)
-
Product Name:
-
XIEGU G106 HF Transceiver
-
Operating voltage:
-
9~15V DC
-
Operating mode:
-
SSB/CW/AM , WFM (receive only)
-
Frequency Stability:
-
±1.5ppm within 30min after power on @25°C: 1ppm/hour
-
Audio output power:
-
0.3W
-
Certification:
-
FCC,ce,TCB
-
Receiving sensitivity:
-
CW: 0.25uV @10dB S/N SSB: 0.5uV @10dB S/N AM: 10uV @10dB S/N
Quick Details
-
Talk Range:
-
60km, Global
-
Terminal style:
-
Handheld
-
Storage Channel:
-
11
-
Place of Origin:
-
China
-
Brand Name:
-
XIEGU G106, XIEGU
-
Model Number:
-
G106, G106
-
Dimensions:
-
120*40*135 (mm)
-
Frequency Range:
-
0.55~30MHz,88~108MHz (WFM)
-
Product Name:
-
XIEGU G106 HF Transceiver
-
Operating voltage:
-
9~15V DC
-
Operating mode:
-
SSB/CW/AM , WFM (receive only)
-
Frequency Stability:
-
±1.5ppm within 30min after power on @25°C: 1ppm/hour
-
Audio output power:
-
0.3W
-
Certification:
-
FCC,ce,TCB
-
Receiving sensitivity:
-
CW: 0.25uV @10dB S/N SSB: 0.5uV @10dB S/N AM: 10uV @10dB S/N
|
A Letter To You:
|
|
|
|
|
||||
|
Under the global COVID-19 pandemic, are you worried about your business?
In the communications industry, are you selling products such as walkie talkie with low margins and high competition?
Now, Xiegu is looking for new global distributors. We have a very strict protection system and after-sales technical support in ensuring the interests of our customers. According to a leading US market research report：In 2019，There are about 3 million amateur radio operators worldwide, including more than 700,000 licensed operators in the United States alone. Compared with similar HF radios of Icom/Yaesu and other companies, we have a good market competitiveness.
It would be a good business，Chat with us and get the business started!
|
|
|
|
|
||||
|
Thank you for visiting the Xiegu Radio store!
|
|
|
|
|
||||
|
Discount
|
Click on chat to ask for the latest special price.
Chat >
|
|
|
|
||||
|
Service
|
We are the only official shop of xiegu on Alibaba.
Become our distributor，We can provide HD photo without watermark for you to promote，Samples available，Pls contact us if you need it. |
|
|
|
||||
|
All products sold are backed by an after-sales guarantee and technical support.
|
|
|
|
|
||||
Details Images

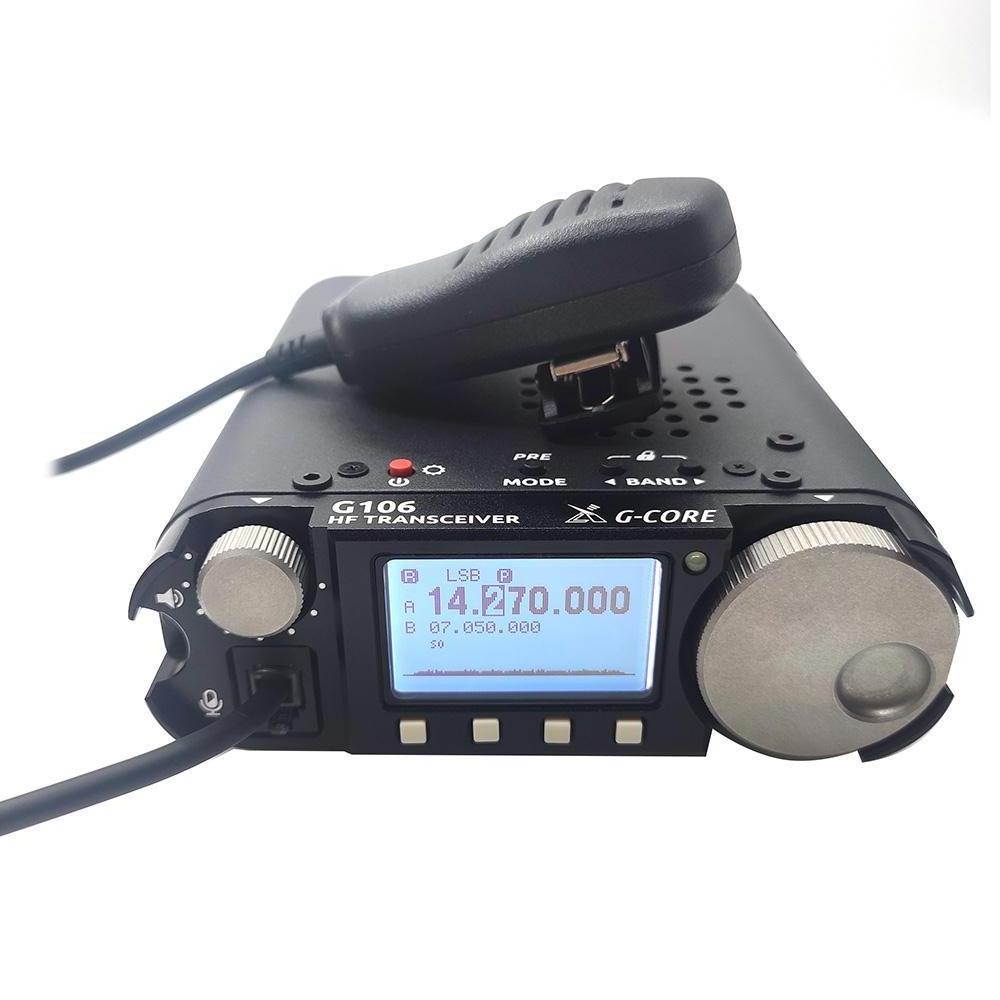

XIEGU G106 0.5MHz To 30MHz HF SDR Transceiver Short Wave Radio Amateur Radio HF Transceiver Handheld
G106 is a 5W portable QRP model with SDR circuit structure which uses 16bit-CODEC sampling and can deliver superior performance. The whole machine has SSB/CW/AM three modes and extra WFM (88~108MHz) receiving function, allowing you to listen to local FM broadcasts while communicating. Equipped with a CW digital filter with three bandwidths, it can help you connect to more and farther radio stations. With the external DE-19 digital adapter (optional), it can be easily connected to the computer and complete FT8 communication.
Basic Features:
- High performance SDR core circuit
- Compact and robust structure
- Transmission and receiving of all amateur frequency bands within 3.8~29.7MHz
- WFM broadcast receiving
- Shortwave full-range continuous receiving
- Amateur data communication available
- Computer online control available
Package Included:
- 1 x G106 HF Transceiver
- 1 x Mic
- 1 x Power line
- 1 x User Manual
- Compact and robust structure
- Transmission and receiving of all amateur frequency bands within 3.8~29.7MHz
- WFM broadcast receiving
- Shortwave full-range continuous receiving
- Amateur data communication available
- Computer online control available
Package Included:
- 1 x G106 HF Transceiver
- 1 x Mic
- 1 x Power line
- 1 x User Manual
- 1 x Warranty card
- 1 x
Certificate of conformity
We offer a 18-month manufacturer's warranty on all products in the xiegu range purchased in our shop. If you have any after-sales technical queries about our products, please contact our customer service staff (note: please do not change the system firmware yourself after purchase)
|
G106 Specifications
|
|
|
|
Transmitting Power
|
≥5W @13.8V DC
|
|
|
Receiving Frequency
|
0.5~30MHz、88~108MHz (WFM)
|
|
|
Transmitting Frequency
|
3.5~3.9MHz
10.1~10.15MHz 18.068~18.168MHz 24.89~24.99MHz
7.0~7.2MHz
14.0~14.35MHz 21.0~21.45MHz 28.0~29.7MHz |
|
|
Modes
|
SSB/CW/AM , WFM (receive only)
|
|
|
Receive Sensitivity
|
CW: 0.25uV @10dB S/N
SSB: 0.5uV @10dB S/N AM: 10uV @10dB S/N |
|
|
Transmitting spurious suppression
|
≥50dB
|
|
|
Standby current
|
0.37A @Max
|
|
|
Transmitting current
|
2.8A @Max
|
|
|
Frequency Stability
|
±1.5ppm within 30min after power on
@25°C: 1ppm/hour |
|
|
Audio Output Power
|
0.3W
|
|
|
Working Voltage
|
9~15V DC
|
|
|
Size
|
120*40*135 (mm)
|
|
For More Product Details, Click Send Inquiry And Chat With Us>>>
Xiegu has been in the HF transceiver field for more than ten years. In the past, Xiegu has brought a variety of different products to ham lovers，also gives more choices and more possibilities to those who love the HF transceiver field. If you are interested in our products , You can bookmark and share with your friends, let more people involved.
Operating Voltage of Xiegu G106 is 9.0V-15.0V DC
, w
e provide Xiegu BK300,
Xiegu BK300(DC 12V-16V) can power your
radio transceiver
and other electronic devices i
n outdoor
