Quick Details
-
Place of Origin:
-
Taiwan, China
-
Brand Name:
-
shuz tung
-
Year:
-
---
-
Power (kW):
-
22.38
-
Weight (KG):
-
3500
-
Product name:
-

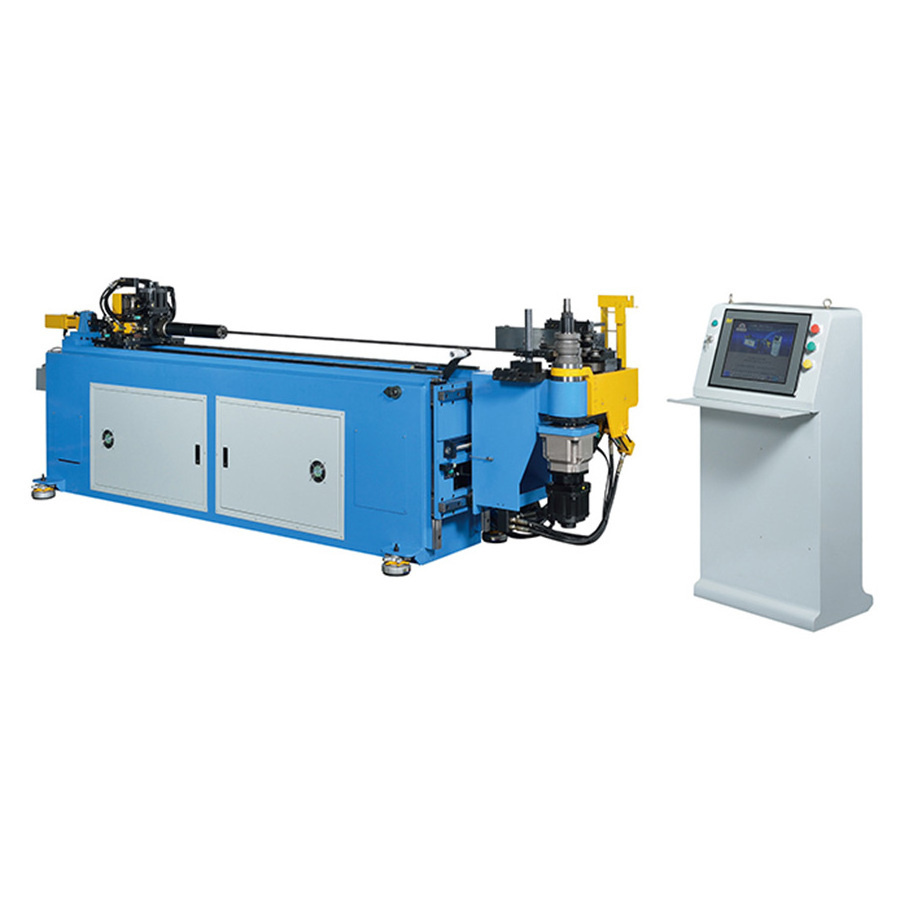

CNC50 BR1/ BR2 /BR3
-
Bending method:
-
Servo Motor Bending
-
Machine Size:
-
500*145*155cm
Quick Details
-
Bending Radius (mm):
-
75 - 220
-
Max. Bending Angle (Deg):
-
190
-
Bending Precision (Deg):
-
+/-0.05
-
Place of Origin:
-
Taiwan, China
-
Brand Name:
-
shuz tung
-
Year:
-
---
-
Power (kW):
-
22.38
-
Weight (KG):
-
3500
-
Product name:
-
CNC50 BR1/ BR2 /BR3
-
Bending method:
-
Servo Motor Bending
-
Machine Size:
-
500*145*155cm
Product Description
| Specification | CNC50 BR1/ CNC50 BR2/CNC50BR3 | |
| HORSE POWER | 30HP | |
| MAX. BENDING CAPACITY(mm) | 50x2.0 | |
| MAX. BENDING RADIUS(mm) | 220 | |
| MAX. BENDING ANGLE(°) | 190 | |
| MAX. FEEDING POSITIONING LENGTH(mm) | 2500 | |
| MAX. FEEDING LENGTH WITH MANDREL(mm) | 3700 | |
| BENDING ACCURACY(°) | ±0.05 | |
| BENDING SPEED(°/sec) | 120 | |
| FEEDING ACCURACY(mm) | RACK | ±0.1 |
| BALLSCREW | ±0.01 | |
| FEEDING SPEED(mm/sec) | 1~1100 | |
| TURNING ACCURACY(°) | ±0.1 | |
| NUMBER OF PROGRAMS | NO LIMITED | |
| BENDING NO./PROGRAM | NO LIMITED | |
| TURNING SPEED(°/sec) | 200 | |
| RADIUS DIFFERENCE BETWEEN STACKS(mm) | 80 | |
| DIMENSIONS(cm) | 500x145x155 | |
| WEIGHT (kg) | 3500 |
