Quick Details
-
Weight:
-
300 KG
-
Dimension(L*W*H):
-
1120*2270*1120 mm
-
Core Components:
-
Other
-
Operating Speed:
-
0.69~1.38 M/S
-
Tillage Depth:
-
≥ 120 MM
-
Design Rotational Speed of Blade-axle:
-
280 R/MIN
-
Maximum Rotation Radius of Blade-axle:
-
245 MM
-
Total No. of Blade:
-
60 PCS
-
Rated Power of Tractor:
-
60HP~95HP
Quick Details
-
Use:
-
Farming
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
HAOFENG/OEM
-
Weight:
-
300 KG
-
Dimension(L*W*H):
-
1120*2270*1120 mm
-
Core Components:
-
Other
-
Operating Speed:
-
0.69~1.38 M/S
-
Tillage Depth:
-
≥ 120 MM
-
Design Rotational Speed of Blade-axle:
-
280 R/MIN
-
Maximum Rotation Radius of Blade-axle:
-
245 MM
-
Total No. of Blade:
-
60 PCS
-
Rated Power of Tractor:
-
60HP~95HP
Products Description
Product Introduction:

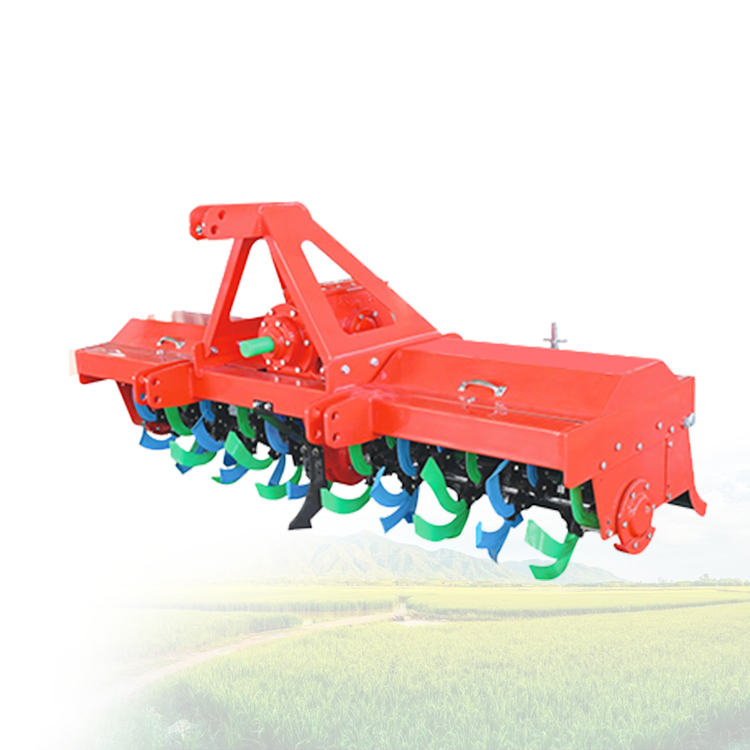

The machine adopts a ductile iron box, which extends the service life of the implement. Mainly suitable for post tillage fine rakes or uncultivated straight rakes in dry farmland, it has the advantages of reasonable structure, simple and reliable hooking, stable operation, good operation quality, and convenient use, adjustment, and maintenance. It is your ideal rotary tillage operation machine.
The blades are made of high-quality special steel with good strength and wear resistance.
D uPont Bright Powder is used for surface coatings with a glossiness of over 90%.
Side gear drive or chain drive
The transmission shaft adopts a double cone seal
Universal three point hitch
Style Selection
|
project
|
unit
|
Design value
|
Design value
|
Design value
|
Design value
|
Design value
|
Design value
|
|
Model name
|
/
|
1GKN-150 rotary tiller
|
1GKN-160 rotary tiller
|
1GKN-200 rotary tiller
|
1GKN-230 rotary tiller
|
1GKN-230H rotary tiller
|
1GKN-250H rotary tiller
|
|
Structural form/frame type frame type
|
/
|
Frame type
|
Frame type
|
Frame type
|
Frame type
|
Frame type
|
Frame type
|
|
machine overall size
|
Mm
|
1020*1695*900
|
1020*1795*900
|
1120*2270*1120
|
1120*2570*1120
|
1100*2570*1205
|
1100*2770*1205
|
|
Operating speed range
|
M/s
|
0.5-1.0
|
0.5-1.0
|
0.69-1.38
|
0.69-1.38
|
0.69-1.38
|
0.69-1.38
|
|
Working breadth
|
Cm
|
150
|
160
|
200
|
230
|
230
|
250
|
|
Tillage depth
|
Cm
|
≥12
|
≥12
|
≥12
|
≥12
|
≥12
|
≥12
|
|
Design speed of knife roller
|
R/min
|
223
|
223
|
280
|
280
|
280
|
280
|
|
Maximum turning radius of the knife roller
|
Mm
|
225
|
225
|
245
|
245
|
245
|
245
|
|
Total number of installed knives
|
hold
|
36
|
44
|
60
|
68
|
68
|
72
|
|
Rated power range of matching tractor
|
Kw
|
25.7-36.8
|
36.0-40.4
|
44.1-69.9
|
51.5-88.2
|
58.8-88.2
|
66.2-95.6
|
|
Matching tractor power output shaft speed
|
R/min
|
540
|
540
|
760
|
760
|
760
|
760
|
Scope Of Application
Farewell to the traditional one machine solution
Applicable Terrain
Why Choose Us
We have our own factory with a variety of agricultural machinery products to choose from, providing one-stop shopping
Our products are exported to various parts of the world and have received unanimous praise.
