Product Description
Product Description
|

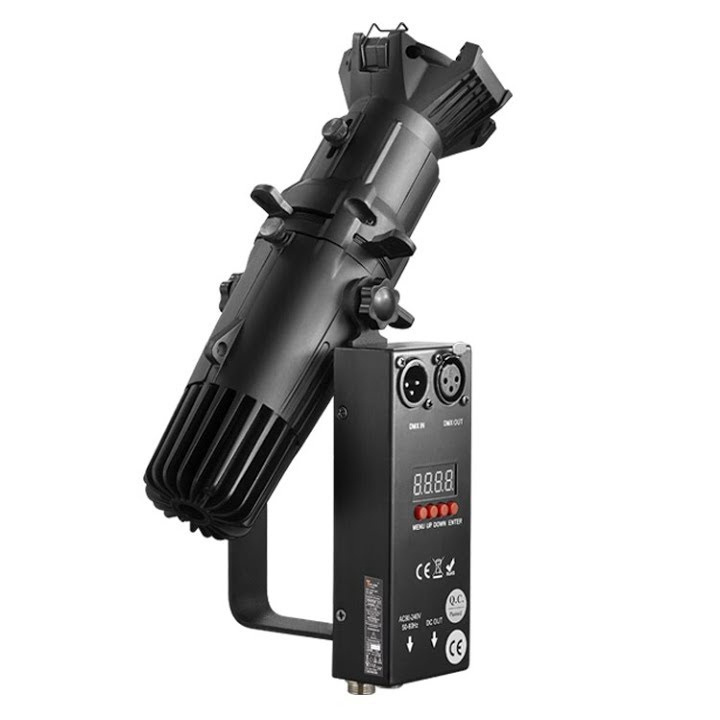

Model
|
VG-LVF20A
|
|
Led power
|
20W
|
|
Light Color
|
single WW / CW / WW+CW 2in1
|
|
Control System
|
DMX or Wireless remote controller
|
|
Fixed Lens
|
19°/26°/36°/50°(optional)
|
|
DMX
|
1/3CH(single color) ,2/5CH(2in1)
|
|
IP Grade
|
IP20
|
|
Body color
|
Black / White
|
|
Led Lamp
|
Imported Led
|
|
CRI
|
Ra≥90
|
Technical Specifications
& Effect
Light Source:
Led power: 20W
Light Color: single WW / CW / WW+CW 2in1
Led Lamp : Imported Led
Color Rendering Index(CRI): Ra≥90
LED Life Time: over 50,000 hours
Power supply:
Voltage: AC100-240V 50-60Hz
Max.power consumption: 26W
Optics:
Fixed Lens: 19°/26°/36°/50°(optional)
Dimmer: 0~100% linearly adjustable
Strobe: 1-25times/sec
Features:
Focus: Can be adjusted by hand
Light body: Die-casting Aluminum
Body color: Black / White
Feature of housing: lightweight, no fan no noise
Control:
Control System: DMX or Wireless remote control
DMX: 1/3CH(single color) ,2/5CH(2in1)
|
|
|
|
|
|
|
Net Weight: 1.51kg
Gross Weight: 2.5kg
Packing size: 34.5*16*14.5cm (1pc/carton) / 54*37*32cm (6pcs/carton)
|
|
|
|
|
Product package:
Flight case(customized and optional) Thick woodboard Long hinge Quality aluminum alloy Best rubber wheels
Quality Testing Department
Quality Testing Department
|
R&D dept have 4 engineers, all of them have 4-7 years experiences in stage lighting.Each year at least 5 series new products will be launched into market. All products passed CE(EMC,LVD) & RoHS standard In order to make product be stable, we process very strickly quality control policy
|
|
Have 4 staffs in QC Dept.
|
|
ICQ check all materials before them ready to production line.
|
|
QC do all lighting performance and appearance inspect when finished assembled before packing.
|
|
1. all materials will be 100% certainly inspect,any defect materials will be returned and not used.
|
|
2. Each fixture will be done at least 12 hours performance testing after assembled but before close cover.
|
|
3. Fixture will take 24-48 hours aging test after finished.
|
|
4. Each batch production we will take around 5% quantity to do hang test.
|
