Quick Details
-
Weight:
-
38000 KG
-
Marketing Type:
-
New Product
-
Emission:
-
China IV
-
Engine:
-
Cumins F4.5
-
Max torque:
-
138 kN.m
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
maxizm, Maxizm
-
Dimension(L*W*H):
-
7300 x 3650 x 15800 mm, 7300 x 3650 x 15800 mm
-
Weight:
-
38000 KG
-
Marketing Type:
-
New Product
-
Emission:
-
China IV
-
Engine:
-
Cumins F4.5
-
Max torque:
-
138 kN.m
Contact
Sales Manager
Smily Zhang
Maxizm Construction Machinery (Qingdao) Co., Ltd.
Email:Smily@maxizm.com
Wechat/ Mobile/ WhatsApp: +86 17860505276
Smily Zhang
Maxizm Construction Machinery (Qingdao) Co., Ltd.
Email:Smily@maxizm.com
Wechat/ Mobile/ WhatsApp: +86 17860505276

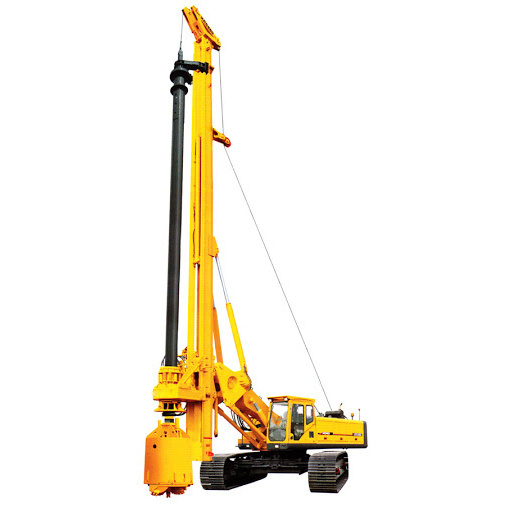

Products Description
It is suitable for industrial and civil construction, municipal construction, power grid and power piles and other fields. It has
high construction efficiency and flexible site transition in geological layers such as soil, tenth, and tenth layers. 1. Energy
saving and high efficiency: Equipped with Cummins F4.5 turbocharged engine and equipped with a large-displacement hydraulic system, it has high efficiency and low fuel consumption. 2. Convenient transportation: The whole machine is transported with a pole, which is convenient for transition and saves the cost of disassembly and transportation. 3. Strong adaptability: the drilling diameter is the largest in the same class, and the whole machine can be quickly modified to low headroom, and the modification time is 4. High-level construction: the main coil lifting force reaches 16t, the largest in the same class, and the construction is more efficient; the main winch automatically shakes up and down The unloading efficiency of soil and clay layers is increased by 2-3 times. 5. Intelligent operation: a new generation of cab, a large-screen display, a large operating space and a wide operating field of vision, standard features such as bottom protection, one-key automatic vertical adjustment of the drill mast, etc., the whole machine is more intelligent. 6. Safe and reliable: The main roll adopts a large-scale reducer, matched with a 28mm diameter steel wire rope, which has a higher safety factor and a longer service life; it adopts a TDP series special chassis, with long crawlers, wide spread, and better working stability. 7. Convenient maintenance: The filter elements are centrally arranged and the maintenance space is large; online fault diagnosis and early warning provide guidance for
troubleshooting.
high construction efficiency and flexible site transition in geological layers such as soil, tenth, and tenth layers. 1. Energy
saving and high efficiency: Equipped with Cummins F4.5 turbocharged engine and equipped with a large-displacement hydraulic system, it has high efficiency and low fuel consumption. 2. Convenient transportation: The whole machine is transported with a pole, which is convenient for transition and saves the cost of disassembly and transportation. 3. Strong adaptability: the drilling diameter is the largest in the same class, and the whole machine can be quickly modified to low headroom, and the modification time is 4. High-level construction: the main coil lifting force reaches 16t, the largest in the same class, and the construction is more efficient; the main winch automatically shakes up and down The unloading efficiency of soil and clay layers is increased by 2-3 times. 5. Intelligent operation: a new generation of cab, a large-screen display, a large operating space and a wide operating field of vision, standard features such as bottom protection, one-key automatic vertical adjustment of the drill mast, etc., the whole machine is more intelligent. 6. Safe and reliable: The main roll adopts a large-scale reducer, matched with a 28mm diameter steel wire rope, which has a higher safety factor and a longer service life; it adopts a TDP series special chassis, with long crawlers, wide spread, and better working stability. 7. Convenient maintenance: The filter elements are centrally arranged and the maintenance space is large; online fault diagnosis and early warning provide guidance for
troubleshooting.
Product Paramenters
|
TYPE
|
|
Unit
|
Parameter
|
|
|
Max. drilling diameter
|
|
m
|
1500
|
|
|
Kelly bar configuration/drilling depth
|
|
m
|
MZ2325-4 x 10.0/37(standard)
|
|
|
|
|
|
JS325-4 x 10.0/37(optional)
|
|
|
|
|
|
JS355-4 x 10.5/39(optional)
|
|
|
|
|
|
MZ355-5 x 10.5/48(optional)
|
|
|
Engine
|
Model
|
/
|
F4.5
|
|
|
|
Power
|
kW
|
125
|
|
|
Rotary drive
|
Max. output torque
|
kN.m
|
138
|
|
|
|
Rotary speed
|
r/min
|
6-45
|
|
|
Crowd cylinder
|
Max. pull-down piston push
|
Kn
|
130
|
|
|
|
Max. pull-down piston pull
|
Kn
|
160
|
|
|
|
Max. pull-down piston stroke
|
m
|
3.7
|
|
|
Crowd winch
|
Max. pull-down piston push
|
Kn
|
/
|
|
|
|
Max. pull-down piston pull
|
Kn
|
/
|
|
|
|
Max. pull-down piston stroke
|
m
|
/
|
|
|
Main winch
|
Max. pulling force
|
Kn
|
160
|
|
|
|
Max.speed
|
m/min
|
81
|
|
|
Auxiliary winch
|
Max. pulling force
|
Kn
|
60
|
|
|
|
Max.speed
|
m/min
|
75
|
|
|
Mast inclination
|
Lateral/forwards/backwards
|
°
|
±3/5/15
|
|
|
Undercarrige
|
Max.travelling speed
|
km/h
|
3
|
|
|
|
Max.grade ability
|
%
|
40
|
|
|
|
Track shoe width
|
mm
|
600
|
|
|
|
Distance betweem tracks
|
mm
|
2550-3650
|
|
|
Overall weight
|
|
t
|
38
|
|
|
Dimensions
|
Working condition
|
mm
|
7300 x 3650 x 15800
|
|
|
|
Transportation condition
|
mm
|
12690 x 2700 x 3500
|
|
