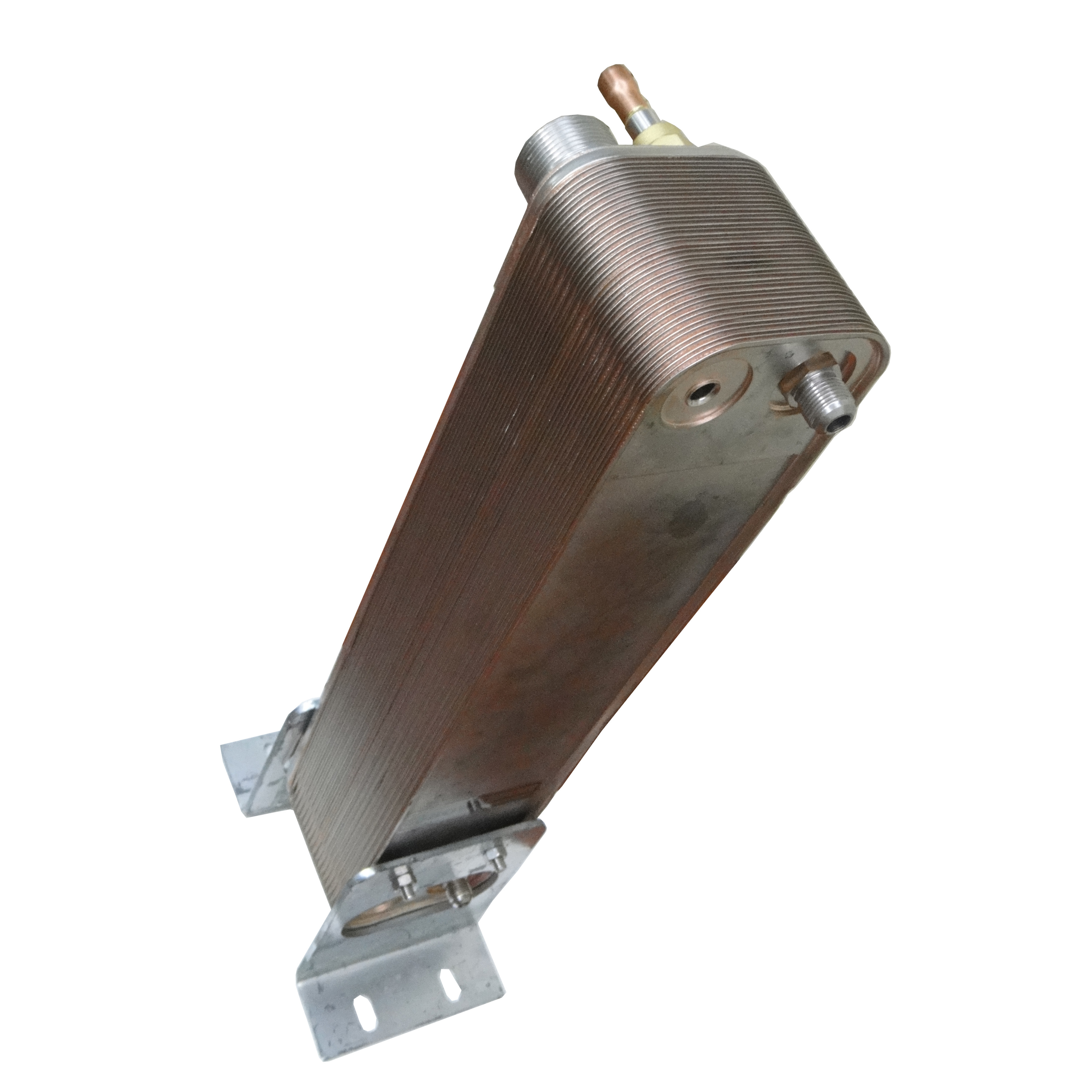

25+25HP dual independent refrigeration circles condenser is regulated in response to variations in the heat release of freezer

25+25HP dual independent refrigeration circles condenser is regulated in response to variations in the heat release of freezer

FOB Reference Price: Get Latest Price

≥1 Sets

US $1368

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: BOWA SOLUTION

Liquid Flow Rate:: 1.8m/s

Maximum Working Pressure:: 45bar

Weight:: 52 KG

Dimension(L*W*H):: 734*319*400

Working Temperature Range:: -160'C~+200'C

Marketing Type:: Ordinary Product

Quick Details

Structure:: Plate Heat Exchanger

Voltage:: 400VAC

Place of Origin:: Shanghai, China

Brand Name:: BOWA SOLUTION

Liquid Flow Rate:: 1.8m/s

Maximum Working Pressure:: 45bar

Weight:: 52 KG

Dimension(L*W*H):: 734*319*400

Working Temperature Range:: -160'C~+200'C

Marketing Type:: Ordinary Product

Product Overview

Dual refrigerant circuits with common water loop

A refrigeration system and method of refrigeration employ dual refrigeration circuits. Each circuit has an independent compressor, condenser and evaporator. In one refrigeration circuit, the flow of the refrigerant from the condenser to the evaporator is regulated in response to variations in the heat load at the evaporator while, in the other refrigeration circuit, the refrigerant is passed from the condenser to the evaporator at a substantially constant rate of flow. The refrigeration system can be used as a cooling system, including an air conditioning system, and as a heat pump. The evaporator in both circuits may be incorporated within a common heat exchanger as may the two condensers. Additionally, the flow of the refrigerant from the condenser to the evaporator in one refrigeration circuit may be regulated in response to variations in the heat load in the evaporator in that refrigeration circuit by a thermal/electronic expansion valve.

With larger systems, two independent refrigerant circuits are commonly used to follow the changes in cooling demand better and to increase system reliability. If one circuit malfunctions, the side remaining in operation may still provide sufficient cooling until help arrives. Dual BPHE running with both circuits active operates no differently from a high-efficiency single circuit evaporator with full contact between refrigerant and secondary fluid. Even if one refrigerant circuit is closed, i.e. half-load operation, all secondary fluid channels remain in contact with the active refrigerant channel. All the secondary fluid will still receive heat exchange, and the leaving water temperature will therefore be the same as for full-load operation provided the water flow is also halved. This allows the part-load evaporation temperature to remain at a high level, resulting in increased efficiency at part load. Because secondary fluid channels will surround the active refrigerant circuit, the evaporating process will also remain fully stable.

FEATURES AT A GLANCE

* Compact design

* Low fouling
* High corrosion resistance
* Easy to service
* High efficiency
* Flexible in size
* Connection in solder or threaded
* Flexible connection programme
* the ideal choice for air driers and chillers, heat pumps, economizers, desuperheaters
* high thermal efficiency
* Nickel Brazed version is available
* suitable for situations where flow rate is small and heat transfer is intensified
* SAE or BSP connection type of refrigerant side for ODF adapter
