Quick Details
-
Brand Name:
-
WHC
-
Model Number:
-
WHC2410CC
-
Work Time (h):
-
24h
-
Max PV Power:
-
240W
-
Max PV Voltage:
-
24V
-
Certificate:
-
CE
-
Warranty:
-
18months
-
Product name:
-

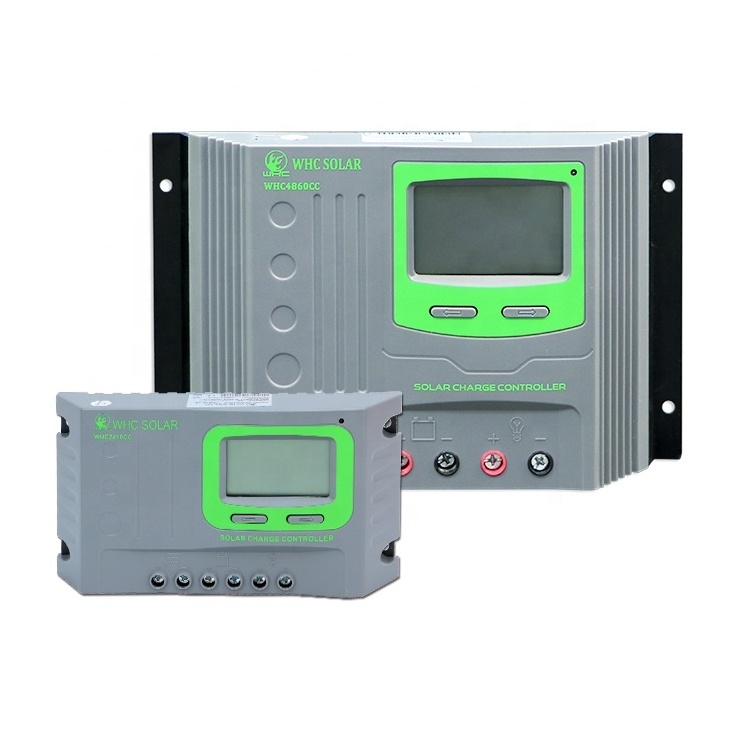

24V 10A Manual PWM Solar Charge Controller
-
Item NO.:
-
WHC2410CC
-
Voltage:
-
12V / 24V
-
Current:
-
10A
-
Working Temperature:
-
-20℃ ~ +55℃
-
Feature:
-
High Efficiency Charging Method
-
Keywords:
-
MPPT Charger Controller
-
Name:
-
MPPT Charger Controller
-
Protection:
-
Voltage Protection
Quick Details
-
Type:
-
PWM
-
Application:
-
Charger Controller, Voltage Controller, Solar System Controller
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
WHC
-
Model Number:
-
WHC2410CC
-
Work Time (h):
-
24h
-
Max PV Power:
-
240W
-
Max PV Voltage:
-
24V
-
Certificate:
-
CE
-
Warranty:
-
18months
-
Product name:
-
24V 10A Manual PWM Solar Charge Controller
-
Item NO.:
-
WHC2410CC
-
Voltage:
-
12V / 24V
-
Current:
-
10A
-
Working Temperature:
-
-20℃ ~ +55℃
-
Feature:
-
High Efficiency Charging Method
-
Keywords:
-
MPPT Charger Controller
-
Name:
-
MPPT Charger Controller
-
Protection:
-
Voltage Protection
Products Description
Product Features:
1. 32bits CPU, sampling precision is higher, operation speed is faster
2. 3 stages PWM charging: fast charging lifting, charging and floating charging.
3. Sealed, Gel, Flooded, LifePO4, Li(NiCoMn)O2 battery selection procedure.
4. Humanized LCD displaying, dynamic display operation data and working state.
5. Fullest digital protection functions: Overcharging, Over-discharging, Overload, Short Circuit, Reverse Connection, Controller Overtemperature and so on.
Product Paramenters
|
Model
|
Max.Charging Current
|
System Voltage
|
PV Max Input Voltage
|
Weight
|
|
WHC2410CC
|
10A
|
12V/24V
|
55V
|
0.428KG
|
|
WHC2420CC
|
20A
|
12V/24V
|
55V
|
0.428KG
|
|
WHC2430CC
|
30A
|
12V/24V
|
55V
|
0.428KG
|
|
WHC2440CC
|
40A
|
12V/24V
|
55V
|
0.587KG
|
|
WHC2450CC
|
50A
|
12V/24V
|
55V
|
0.779KG
|
|
WHC2460CC
|
60A
|
12V/24V
|
55V
|
0.896KG
|
|
WHC4850CC
|
50A
|
48V
|
55V
|
1.063KG
|
|
WHC4860CC
|
60A
|
48V
|
100V
|
1.063KG
|
