Quick Details
-
tablet detecting size range:
-
5-25mm
-
capsule detecting size range:
-
000-5#
Quick Details
-
Place of Origin:
-
China
-
Weight (KG):
-
150
-
Product storage quantity:
-
99 products
-
tablet detecting size range:
-
5-25mm
-
capsule detecting size range:
-
000-5#

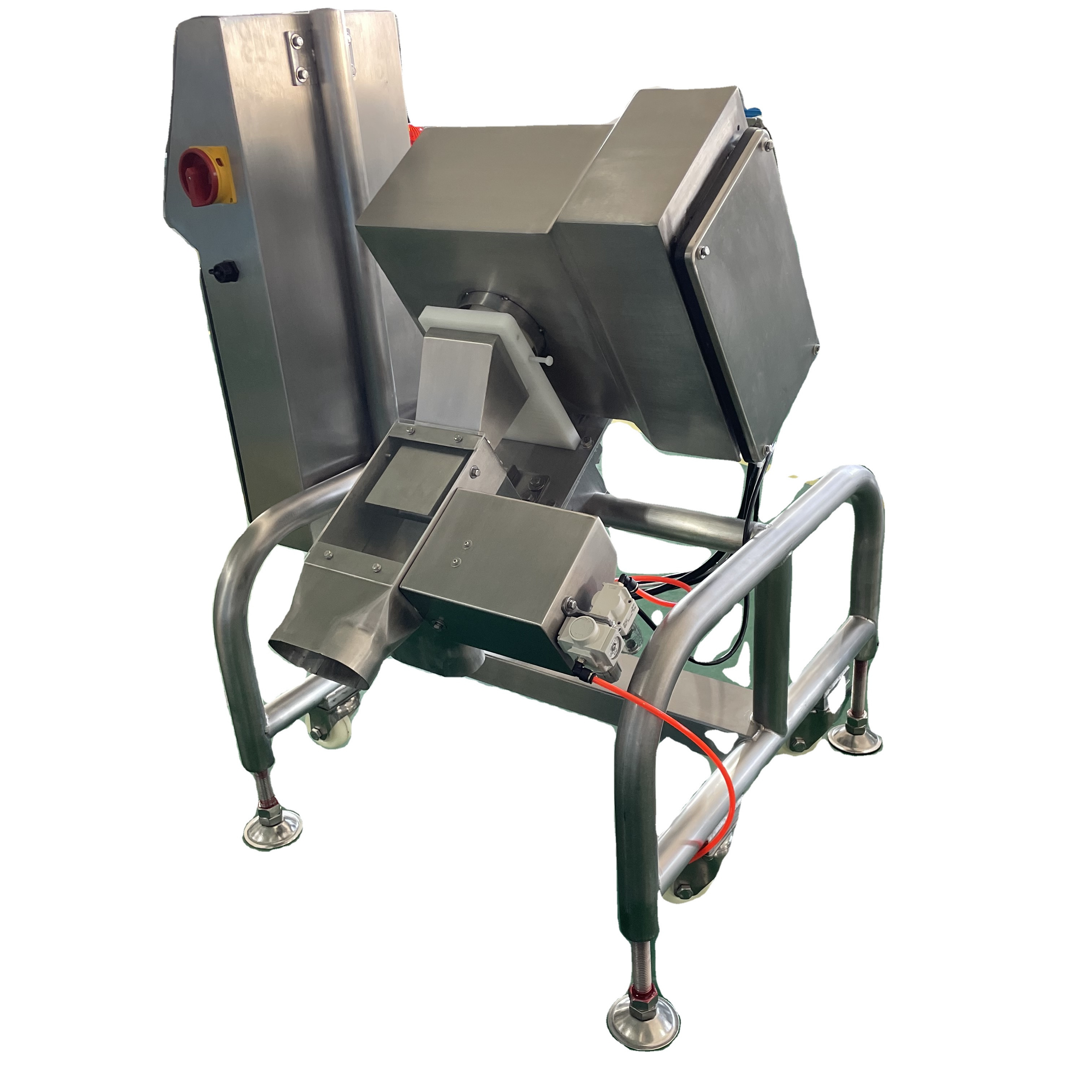

IDI-M150 Big Tablet Capsule Metal Detector
Product Usage:
Can be applied to detecting tablets capsules inline which direction from tablet capsule machine
Features:
high frequency operation mode, greatly enhance the detection sensitivity.
Precise and efficient removal of equipment to minimize material waste.
meet the pharmaceutical regulatory standards, in accordance with the GMP standard manufacturing.
Touch screen display, easy to set up and operate.
The height angle of the device can be easily adjusted, and the universal casters ensure easy movement
T e chnical Parameters
|
model |
ID I- M150 |
|
Detection accuracy (empty machine) |
Empty machine: Fe ≥ 0.3mm no-fe0.5mm sus304 0.6mm |
|
Effective detection channel |
Width 137mm, height 25mm |
|
Conveying device |
The height of the conveyor belt from the ground: 750mm +100mm |
|
Alarm method |
Audible alarm |
|
Elimination method |
Piracy culling |
|
Product storage quantity |
99 products |
|
Ambient temperature and humidity |
Temperature 0-40 ℃ relative humidity 30-85% no condensation |
|
Body material |
SUS304 (brushed processing) |
|
power supply |
Adopt single-phase alternating current, AC 220V ± 10% 50/60Hz |
|
Wide detection range |
Especially for products with high salt and water content that are difficult to detect it has a good detection effect |
|
Phase tracking function |
Maintain stable high-precision detection capabilities |
|
Product tracking function |
Automatically perform internal adjustment functions according to changes in product effects |
|
Auto balance function |
Guarantee the service life of the machine and prolong the use time |
|
Display screen |
LCD liquid crystal display, Chinese and English menu screen, easy to realize man machine dialogue |
|
Power requirements |
AC220 240V (other requirements optional) |
|
Protection class |
IP54 |
|
Over all size |
828*801*1050 mm |
|
Net weight |
1 5 0kg |
