Quick Details
-
Brand Name:
-
Foclink or OEM
-
Product name:
-
1GE Gepon/Gpon ONU
-
Wavelength:
-
Tx 1310nm, Rx 1490nm
-
Working Mode:
-
Support SFU and HGU switch
-
Item:
-
Xpon 1GE ONU
-
PON Port:
-
1.25G SC/UPC
-
WIFI:
-
IEEE802.11b/g/n, 300Mbps
-
Upstream PON interface:
-
1 EPON interface, 1.25Gbps
-
PON Splitters:
-
PLC & FBT
-
VLAN:
-
VLAN tag mode, trunk mode
-
No. of Fiber:
-
1.
Quick Details
-
Type:
-
FTTx Solutions
-
Model Number:
-
EPON GPON ONU
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Foclink or OEM
-
Product name:
-
1GE Gepon/Gpon ONU
-
Wavelength:
-
Tx 1310nm, Rx 1490nm
-
Working Mode:
-
Support SFU and HGU switch
-
Item:
-
Xpon 1GE ONU
-
PON Port:
-
1.25G SC/UPC
-
WIFI:
-
IEEE802.11b/g/n, 300Mbps
-
Upstream PON interface:
-
1 EPON interface, 1.25Gbps
-
PON Splitters:
-
PLC & FBT
-
VLAN:
-
VLAN tag mode, trunk mode
-
No. of Fiber:
-
1.

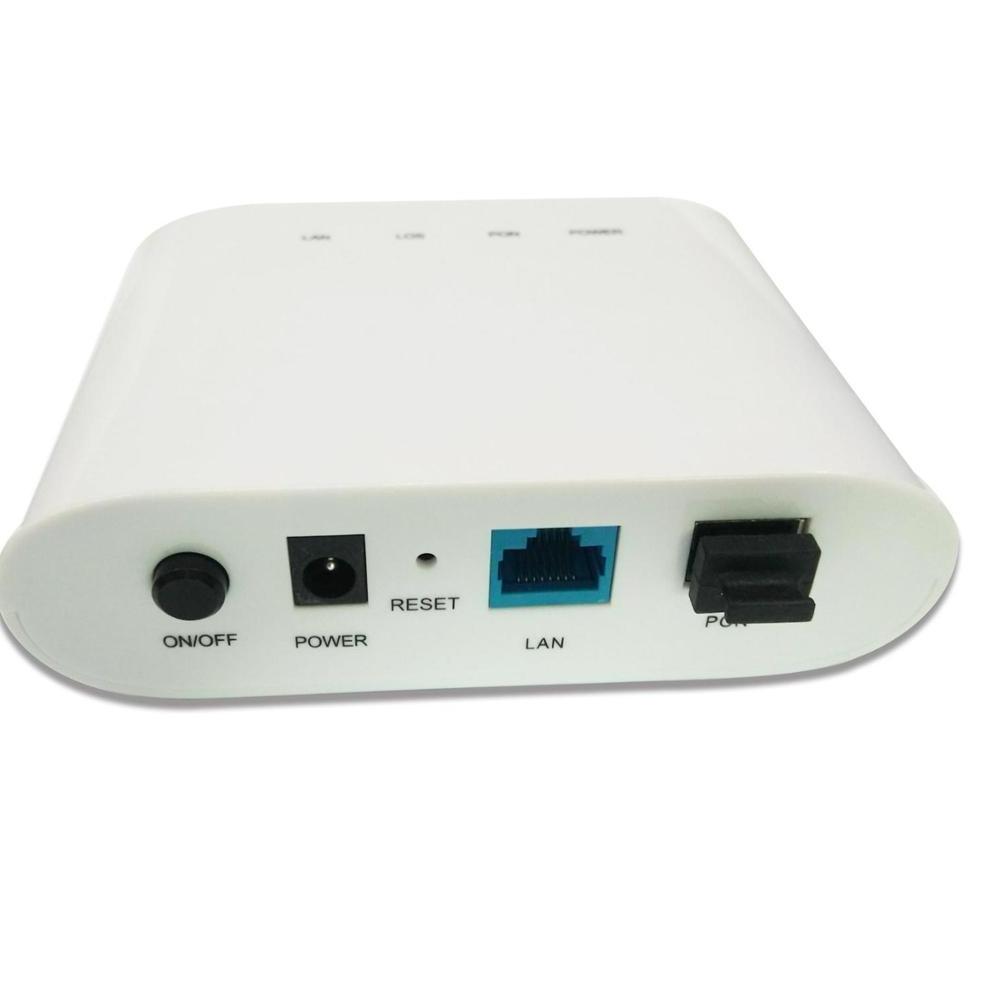

FTTH Realtek Chipset 1GE Gepon/Gpon ONU
FTTH Realtek Chipset 1GE Gepon/Gpon ONU
XPON ONU 1GE is ITU-T G.984.x based or IEEE802.3ah that supports 2.5G downstream and 1.25G upstream bandwidth for GPON, supports 1.25G downstream and 1.25G upstream bandwidth for EPON. It supports dual mode (EPON and GPON), can access EPON/GPON OLTs. It also comes with 1*10/100/1000Base-Tx Gigabit Ethernet LAN port that supports 1Gbps downstream bandwidth.
Key Features :
1) Comes with 1G/EPON SC/APC or SC/UPC WAN port, support 1.25G upstream and 2.5G/1.25G downstream
2) Built with the well-round Realtek 9601D chipset, low cost and high performances
3) Support rich layer 2 Management features, applicable to the biggest ISP networks
4) Built based on WDM, transmitting Data/IPTV/Voice over a single fiber, max transmission distance can reach 20Km Max 1:128 Fiber ratio for GPON, max transmission distance can reach 20km
5) Max 1:64 Fiber ratio for EPON, max transmission distance can reach 20km
6) Support FBA (Flexible Bandwidth Assignation), dynamic assign bandwidth automatically High security, data encrypted at upstream and downstream directions
7) Support Multicast, end users can optionally apply for VOD, video conferencing, etc.
Easy installation and maintenance, support remote failure detect and locate. Saving your maintenance costs
Hardware Features:
Fully compatible with ITU-T G.984.x, IEEE802.3ah CTC 2.1, CTC 3.0 standard
Offers 1*G/EPON SC/APC or SC/UPC port, 2.5G/1.25G Downstream, 1.25G Upstream Sensibility of G/Epon optical port: -2dBm to -30dBm
LED Indicators for PWR, PON, LOS and GE
Desktop and wall mount design, plastic housing
Plug and play operation External Power Supply
Power Supply, AC 100V-240V input, DC 12V, 0.5A output, 4KV surge protection Support Asia, Europe, U.S, U.K, AU standard power plugs
Software Features:
Support IEEE802.1Q VLAN, port based VLAN Support IEEE802.1P QoS, Tos, Cos
Support IEEE802.1d Spanning Tree Support IEEE802.1W Rapid Spanning Tree
Support MAC address translation and MAC addresses limitation Support IGMP V1, V2 and IGMP snooping for multicast
Support IEEE802.3X full duplex, half duplex backpressure flow control Support MAC, IP, or TCP/UDP protocol based ACLs (Access Control protocol) Support Bandwidth Control
Support CLI management, SNMP based NMS management and monitor
Specification :
|
Standards |
IEEE 802.3, IEEE 802.3u, IEEE802.3ab, IEEE802.3ah, IEEE 802.3x, IEEE802.1Q, IEEE802.1P, IEEE802.1D, IEEE802.11b/g/n, ITU-T G.984.1, ITU-T G.984.2, ITU-T G.984.3, ITU-T G.984.4 |
||
|
Topology |
Star Topology |
||
|
Uplink Ports |
1*G/EPON port, SC/APC or SC/UPC connector optional |
||
|
Downlink Ports |
1*10/100/1000Base-Tx Gigabit LAN Port |
||
|
Transmission Rate |
1.25Gbps at upstream, 1.25/2.5Gbps at downstream |
||
|
Transmission Distance |
Maximum 20Km |
||
|
LED Indicators |
PWR, PON, LOS, GE |
||
|
Ethernet Cable |
10Base-Tx: UTP category 3, 4, 5 , up to 100m 100Base-Tx: UTP category 5 , up to 100m 1000Base-Tx: UTP category 5, 5E, 6, up to 100m |
||
|
Fiber Cable |
8.3μm, 8.7μm, 9μm and 10μm single mode fiber cable |
||
|
Product Measurement |
8.8*8.6*3 cm |
||
|
Packaging Box Size |
10.7*9.5*8.9 cm |
||
|
Power Supply |
AC 100-240V, DC 12V, 0 .5A, External Power Supply, 4KV Surge protection |
||
|
Temperature Humidity |
|
Temperature |
Humidity |
|
|
Working |
0℃ - 45℃ |
10% - 90% |
|
|
Standby |
-40℃ - 70℃ |
5% - 90% RH |
